Allen-Bradley
2198-DSM024-ERS2-B1003F-PJ14ASArmorKinetix Distributed Servo Drives Parts
Allen-Bradley

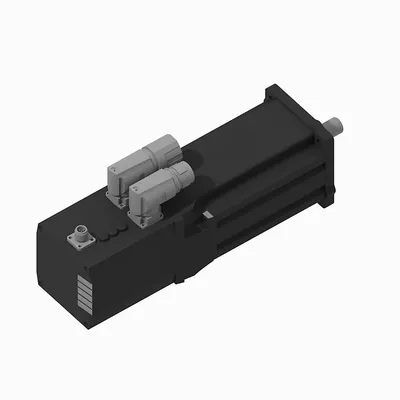

2198-DSM024-ERS2-B1003F-CK12AS
Allen-Bradley
2198-DSM024-ERS2-B0753M-CK12AA
Allen-Bradley
2198-DSM016-ERS2-B1001M-PJ12AA
Allen-Bradley

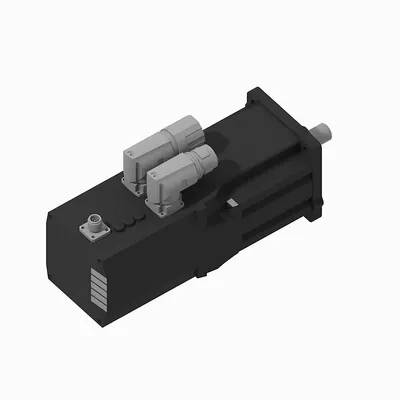

2198-DSM016-ERS2-B1001M-CK12AA
Compare ArmorKinetix Distributed Servo Drives
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Frame Size | Stack Length | Base Speed | Feedback Type | Special Features |
|---|---|---|---|---|---|
| 2198-DSM024-ERS2-B1003F-PJ14AS | 100mm Bolt Circle Frame Size | 3 Stacks | 4500 RPM | Multi-turn DSL EK 35mm | IP66 Shaft Seal Fitted |
| 2198-DSM024-ERS2-B1003F-CK12AS | 100mm Bolt Circle Frame Size | 3 Stacks | 4500 RPM | Single Turn DSL 35mm | IP66 Shaft Seal Fitted |
| 2198-DSM024-ERS2-B0753M-CK12AA | 75mm Bolt Circle Frame Size | 3 Stacks | 6000 RPM | Single Turn DSL 35mm | Standard Seal |
| 2198-DSM016-ERS2-B1002M-CK12AS | 100mm Bolt Circle Frame Size | 2 Stacks | 6000 RPM | Single Turn DSL 35mm | IP66 Shaft Seal Fitted |
| 2198-DSM016-ERS2-B1002M-CJ14AA | 100mm Bolt Circle Frame Size | 2 Stacks | 6000 RPM | Single Turn DSL 35mm | Standard Seal |
| 2198-DSM016-ERS2-B1001M-PJ12AA | 100mm Bolt Circle Frame Size | 1 Stack | 6000 RPM | Multi-turn DSL EK 35mm | Standard Seal |
| 2198-DSM016-ERS2-B1001M-CK12AA | 100mm Bolt Circle Frame Size | 1 Stack | 6000 RPM | Single Turn DSL 35mm | Standard Seal |
| 2198-DSM016-ERS2-B0752M-PJ12AS | 75mm Bolt Circle Frame Size | 2 Stacks | 6000 RPM | Multi-turn DSL EK 35mm | IP66 Shaft Seal Fitted |
| 2198-DSM024-ERS2-B1152T-CJ12AA | — | — | — | — | — |
| 2198-DSM016-ERS2-B1002M-CK14AA | — | — | — | — | — |
| 2198-PIM070 | — | — | — | — | — |
| 2198-DSM024-ERS5-B1306C-TK14AS | 130mm Bolt Circle | 6 Stacks | 2500 | DSL, ED, SIL2, MULTI-TURN, 35m | IP66 Snaft Seal Fitted |
| 2198-DSM024-ERS5-B1304E-TK14AS | 130mm Bolt Circle | 4 Stacks | 3500 | DSL, ED, SIL2, MULTI-TURN, 35m | IP66 Snaft Seal Fitted |
| 2198-DBR20-F | — | — | — | — | — |
| 2198-CONKIT-FRM1 | — | — | — | — | — |
| 2198-CONKIT-FRM3 | — | — | — | — | — |
