IO-Link Infrastructure Parts

Showing 1–18 of 18 parts

Compare IO-Link Infrastructure

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (Pepperl+Fuchs part number)Storage temperatureMassDimensions: HeightDevice ID

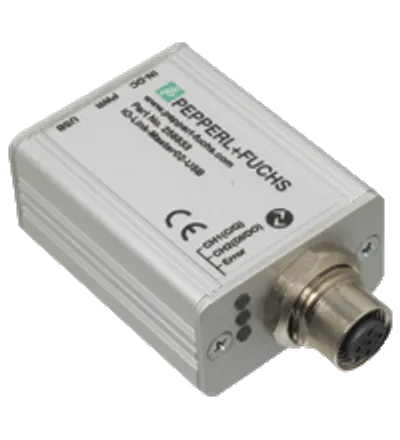

IO-Link-Master02-USB304074-40 ... 80 °C (-40 ... 176 °F)approx. 100 g24 mm—
IO-Link IODD Automatic Upload ToolT224545————
ICA-AO-I/U-IO-V170153268-40 ... 85 °C (-40 ... 185 °F)44 g32.3 mm0x0F0502 (984322)
ICA-AI-I/U-IO-V170153267-40 ... 85 °C (-40 ... 185 °F)44 g32.3 mm0x0F0501 (984321)
ICA-AI-RTD-IO-V170163607-40 ... 85 °C (-40 ... 185 °F)44 g32.3 mm0x0F0503 (984323)
ICA-16DI-G16-IO70169517-25 ... 85 °C (-13 ... 185 °F)110 g29.35 mm985857 (0x0F0B01)
ICA-16DI-G11-IO70169519-25 ... 85 °C (-13 ... 185 °F)200 g46 mm985601 (0x0F0A01)
ICA-16DIO-G11-IO70168932-25 ... 85 °C (-13 ... 185 °F)200 g46 mm985602 (0x0F0A02)
ICA-16DIO-G16-IO70168933-25 ... 85 °C (-13 ... 185 °F)110 g29.35 mm985858 (0x0F0B02)
ICA-16IO-G20-IO-P1670149090-30 ... 85 °C (-22 ... 185 °F)310 g27.5 mm985345 (0x0F0901)
ICA-10DI6DO-G60A-IO314644-40 ... 70 °C (-40 ... 158 °F)400 g200 mm0x0F0202 (983554)

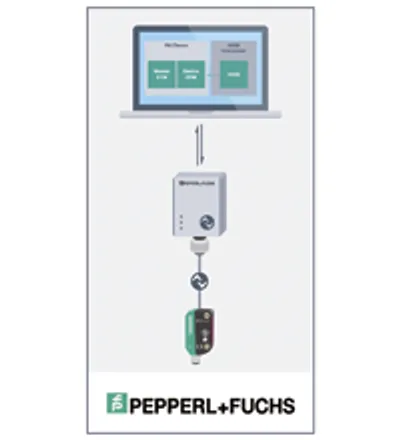

IO-Link Offline Parameterization ToolT190597————
ICA-16DI-G60A-IO313335-40 ... 70 °C (-40 ... 158 °F)390 g200 mm0x0F0201 (983553)
ICA-16DIO-G60AL-IO70101647-40 ... 70 °C (-40 ... 158 °F)400 g200 mm0x0F0203 (983555)

Common to all listed parts

LifecycleActive (current Pepperl+Fuchs product)
