Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Name | ABB Type Designation |
|---|---|---|---|---|---|

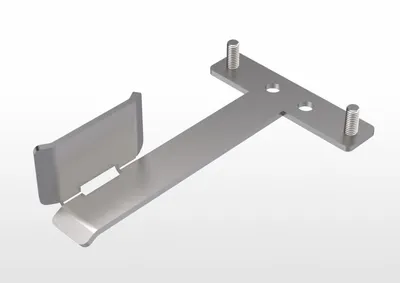

| 3HAC076128-001 | Metal compression clamp_D.P. | 0.1 kg kg | 0.1 kg kg | Metal compression clamp_D.P. | - |

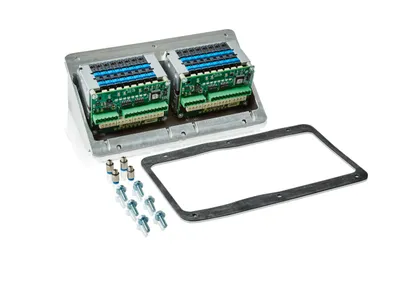

| 3HNA015479-001 | FUNCTION VALVE KIT | 3.3 kg kg | 3.3 kg kg | FUNCTION VALVE KIT | - |

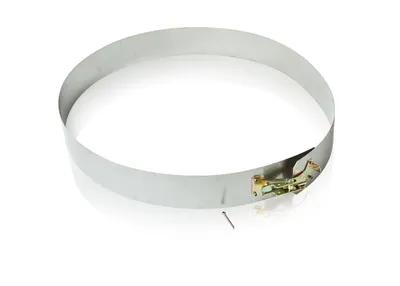

| 3HAC7074-1 | Protection sheet | 1.34 kg kg | 1.34 kg kg | Protection sheet | - |

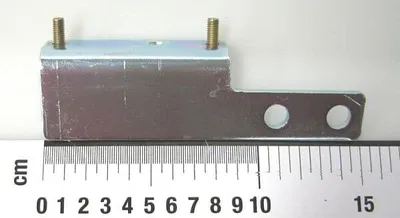

| 3HAC13734-1 | Bracket for MH ax3 | 0.23 kg kg | 0.23 kg kg | Bracket for MH ax3 | SS-EN 10149-2 S355MC t = 4 mm mm |

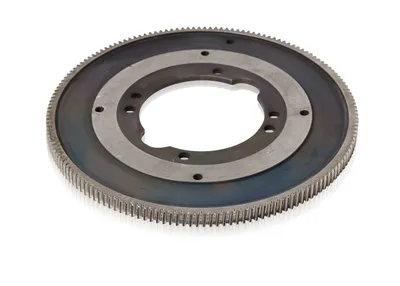

| 3HAB3210-1 | Gear axis 4, step 2 | 1.379 kg kg | 1.379 kg kg | Gear axis 4, step 2 | AXIS 4 STEP 2 |

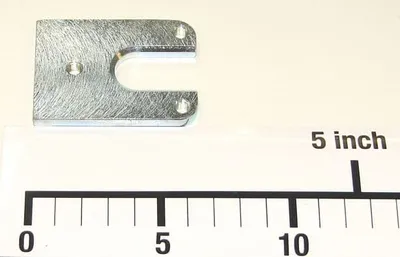

| 3HAC13666-1 | Lock device | 0.114 kg kg | 0.114 kg kg | Lock device | - |

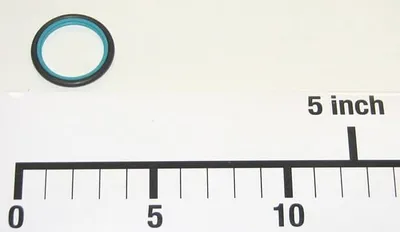

| 3HAB3702-24 | Sealing ring not dust lip | 0.002 kg kg | 0.002 kg kg | Sealing ring not dust lip | Nitrile rubber D=40/52; B=6 |

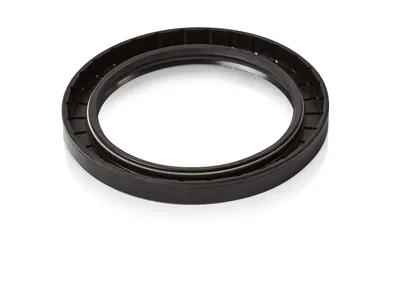

| 3HAB3701-44 | Radial Seal w. dust lip w | 0.08 kg kg | 0.08 kg kg | Radial Seal w. dust lip w | - |
| 3HAA0001-M | Gear unit | 1.65 kg kg | 1.65 kg kg | Gear unit | AX.4 |

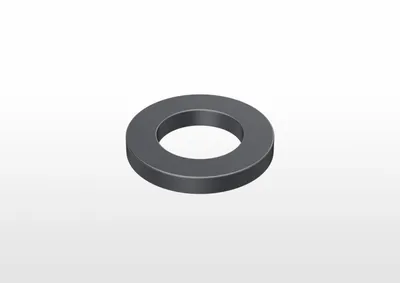

| 3HAC045621-001 | Washer | 0.002 kg kg | 0.002 kg kg | Washer | - |

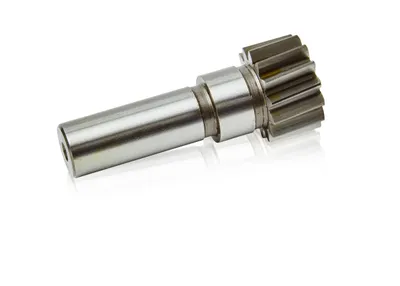

| 3HAB3211-1 | Pinion axis 4, step 2 | 0.066 kg kg | 0.066 kg kg | Pinion axis 4, step 2 | - |

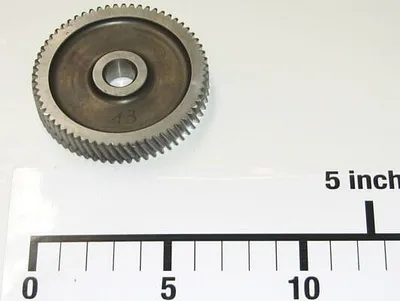

| 3HAB3212-1 | Gear axis 4, step 1 | 0.237 kg kg | 0.237 kg kg | Gear axis 4, step 1 | AXIS 4 STEP 1 |

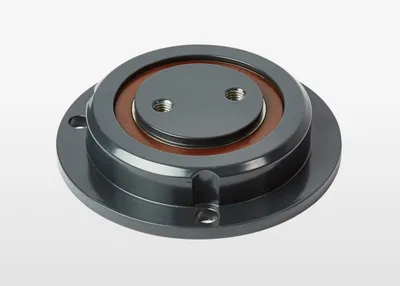

| 3HAC045626-002 | Bearing with housing | 1.07 kg kg | 1.07 kg kg | Bearing with housing | - |

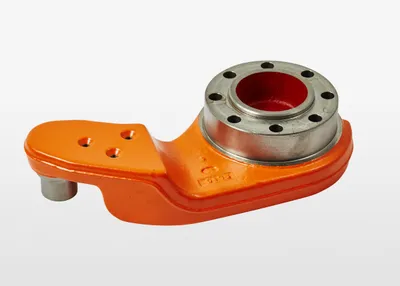

| 3HAB9394-1 | Parallel arm | 6.94 kg kg | 6.94 kg kg | Parallel arm | 10/16 |

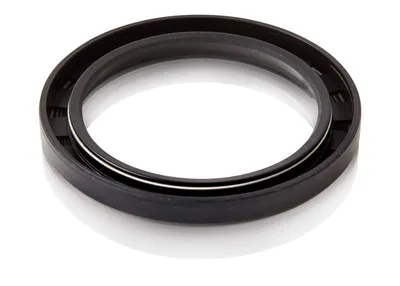

| 3HAB3702-14 | Sealing, w.out dust lip w | 0.03 kg kg | 0.03 kg kg | Sealing, w.out dust lip w | - |

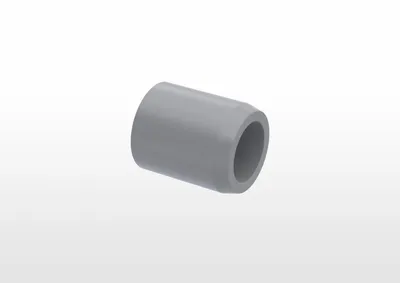

| 3HAC053685-001 | Plug | 0.004 kg kg | 0.004 kg kg | Plug | - |

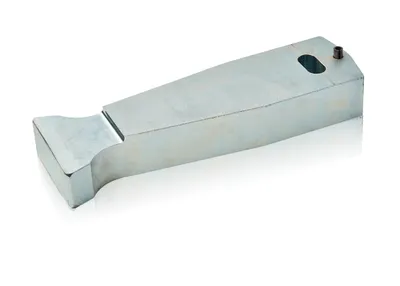

| 3HAC12812-2 | Mech. stop ax. 1 assembly | 10.349 kg kg | 10.349 kg kg | Mech. stop ax. 1 assembly | - |

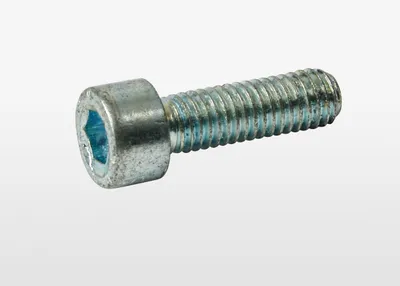

| 3HAB3402-14 | Hex socket head cap screw | 0.004 kg kg | 0.004 kg kg | Hex socket head cap screw | Steel 8.8 Gleitmo 605 M5x16 |

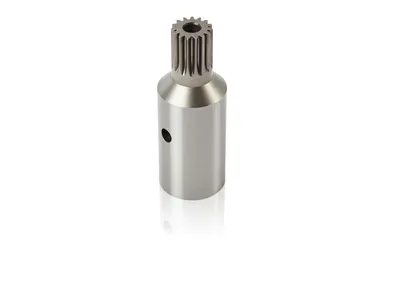

| 3HAB4057-1 | Input gear | 0.98 kg kg | 0.98 kg kg | Input gear | PINION |

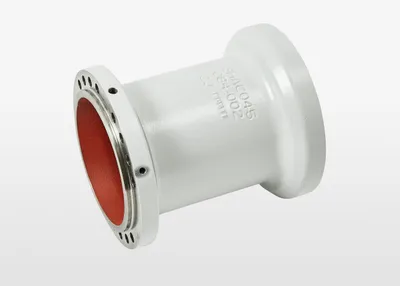

| 3HAC045084-005 | Arm extender, 250 mm mm | 15.5 kg kg | 15.5 kg kg | Arm extender, 250 mm mm | - |

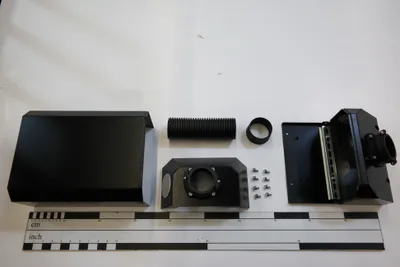

| 3HNA002762-001 | COVER ON VERTICAL ARM | 6 kg kg | 6 kg kg | COVER ON VERTICAL ARM | - |

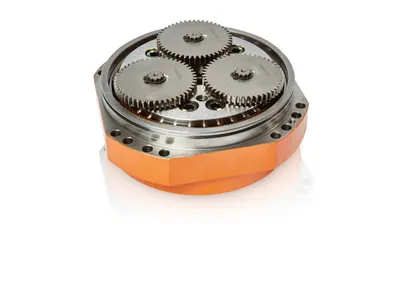

| 3HAC046336-004 | Reduction gear RV-100N -161 | 14 kg kg | 14 kg kg | Reduction gear RV-100N -161 | - |

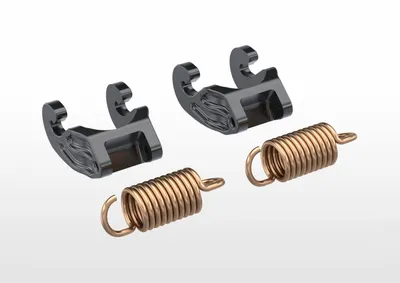

| 3HAC078709-001 | Springunit | 0.03 kg kg | 0.03 kg kg | Springunit | 6-8kg |

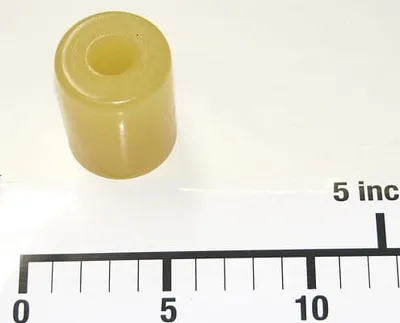

| 3HAA1001-123 | Damper | 0.06 kg kg | 0.06 kg kg | Damper | Polyuretan H=49 Diam.=40 |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
