Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|
| 3HAC7446-1 | Receptacle for socket 4p | 0.02 kg kg | 0.02 kg kg | 30 mm mm | Receptacle for socket 4p |

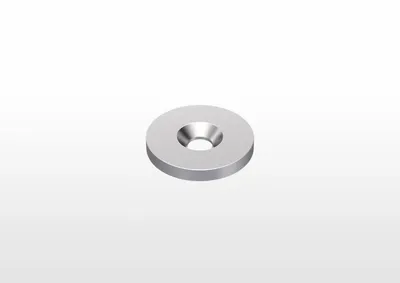

| 3HAC046789-001 | Washer | 0.04 kg kg | 0.04 kg kg | 38 mm mm | Washer |

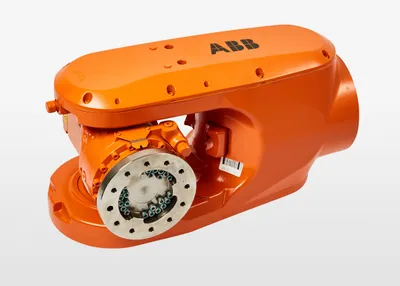

| 3HAC059653-002 | Wrist | 100 kg kg | 100 kg kg | 720 mm mm | Wrist |

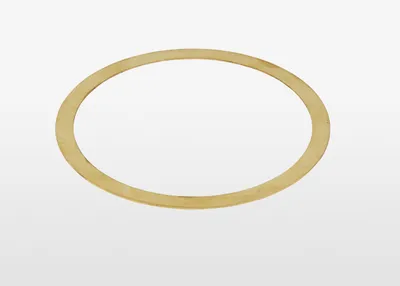

| 3HAC030126-001 | Shims | 0.02 kg kg | 0.02 kg kg | 140 mm mm | Shims |

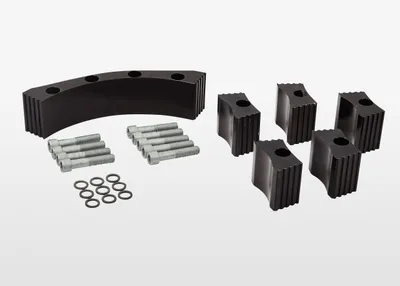

| 3HAC13128-2 | Mechanical stop set, ax3 | 7.84 kg kg | 7.84 kg kg | — | Mechanical stop set, ax3 |

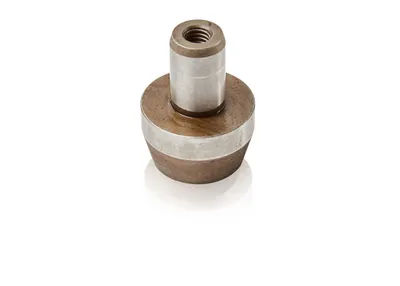

| 3HAC051645-001 | Locating pin | 0.055 kg kg | 0.055 kg kg | 33 mm mm | Locating pin |

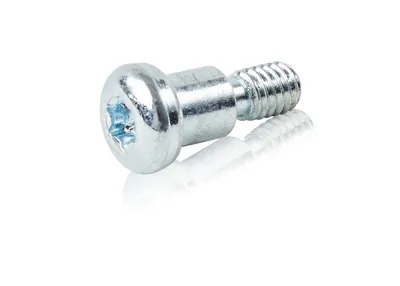

| 3HAC11409-6 | Shoulder Screw | 0.008 kg kg | 0.008 kg kg | 22.3 mm mm | Shoulder Screw |

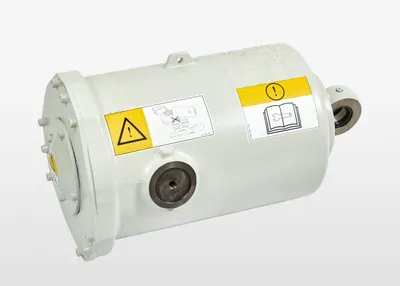

| 3HAC032124-005 | Balancing device | 144 kg kg | 144 kg kg | — | Balancing device |

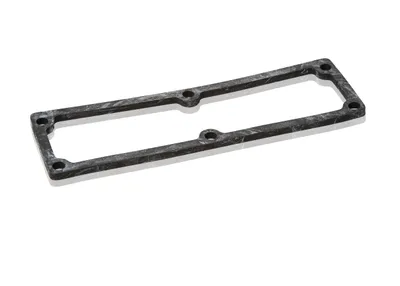

| 3HNA015680-001 | GASKET | 0.02 kg kg | 0.02 kg kg | 158 mm mm | GASKET |

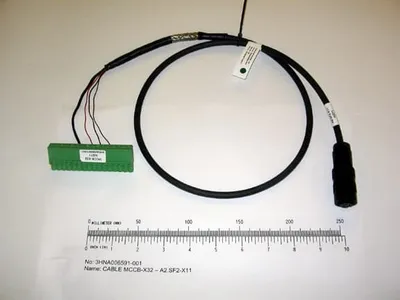

| 3HNA006591-001 | CABLE MCCB-X32 - A2.SF2-X11 | 0.15 kg kg | 0.15 kg kg | — | CABLE MCCB-X32 - A2.SF2-X11 |

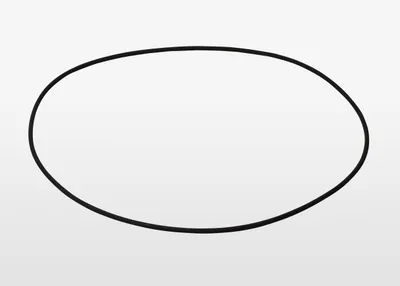

| 3HAB3772-160 | O-ring | 0.041 kg kg | 0.041 kg kg | — | O-ring |

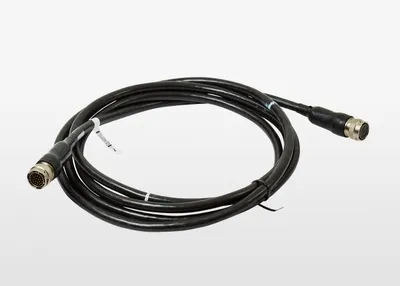

| 3HAC046528-001 | CPS, ax 3-6 | 1.8 kg kg | 1.8 kg kg | 4500 mm mm | CPS, ax 3-6 |

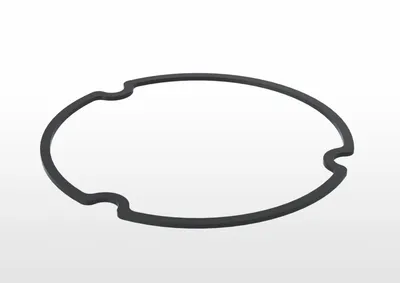

| 3HAC080698-001 | Swing center gasket | 0.015 kg kg | 0.015 kg kg | 96.6 mm mm | Swing center gasket |

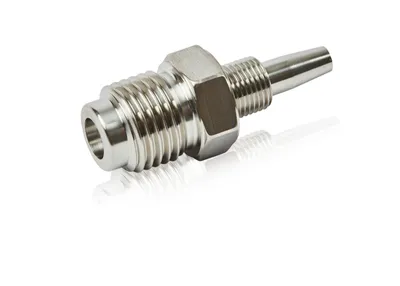

| 3HNA021607-001 | SCREW-IN-CONNECTOR | 0.02 kg kg | 0.02 kg kg | 40 mm mm | SCREW-IN-CONNECTOR |

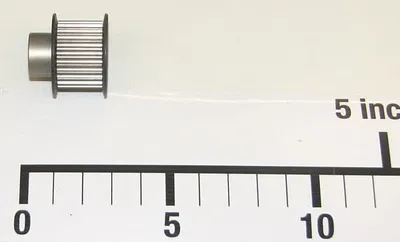

| 3HAA2391-1 | Timing Belt Pulley | 0.03 kg kg | 0.03 kg kg | — | Timing Belt Pulley |

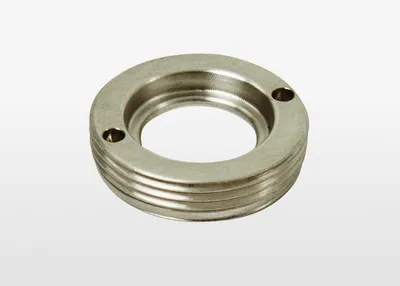

| 3HNA009734-001 | NUT | 0.006 kg kg | 0.006 kg kg | 5 mm mm | NUT |

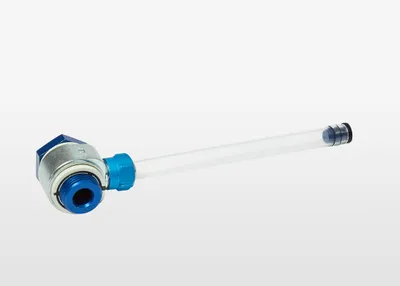

| 3HNA024429-001 | KIT ELBOW W/ BLIND PLUG W | 0.06 kg kg | 0.06 kg kg | 140 mm mm | KIT ELBOW W/ BLIND PLUG W |

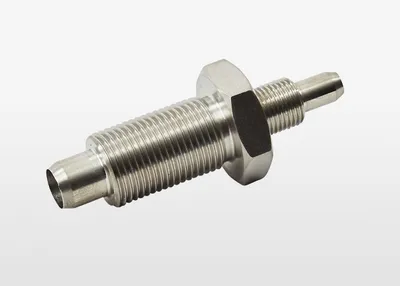

| 3HNA026674-001 | SCREW-IN CONNECTOR | 0.009 kg kg | 0.009 kg kg | — | SCREW-IN CONNECTOR |

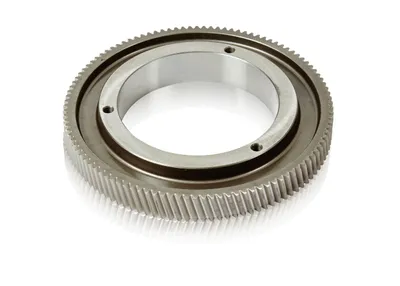

| 3HAB8460-1 | Gear Z4/4 | 8.1 kg kg | 8.1 kg kg | — | Gear Z4/4 |

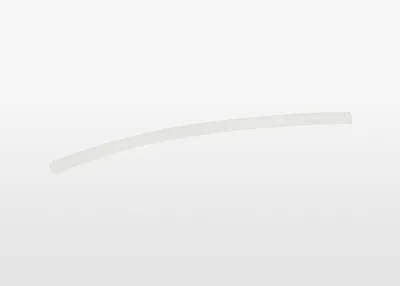

| 3HNA003065-001 | HOSE 4 x 6 PA12, WH | 0.01 kg kg | 0.01 kg kg | 0 mm mm | HOSE 4 x 6 PA12, WH |

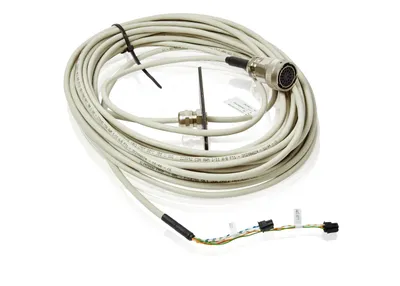

| 3HAC022723-004 | Harness - Axis 1&2 cooling 15m | 1.24 kg kg | 1.24 kg kg | 15000 mm mm | Harness - Axis 1&2 cooling 15m |

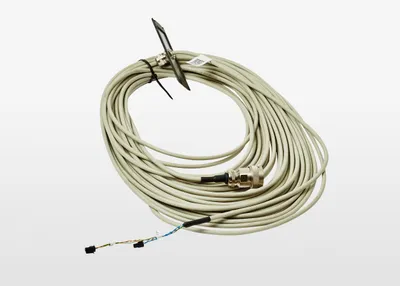

| 3HAC022723-006 | Harness - Axis 1&2 cooling 30m | 1.935 kg kg | 1.935 kg kg | 30000 mm mm | Harness - Axis 1&2 cooling 30m |

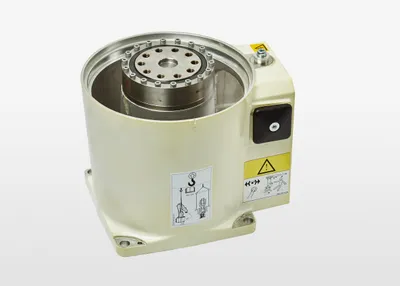

| 3HAC059699-001 | Base, clean room | 14.62 kg kg | 14.62 kg kg | 280 mm mm | Base, clean room |

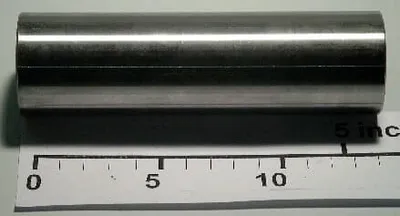

| 3HAA1001-88 | AXIS FOR PARALLELBAR | 1.925 kg kg | 1.925 kg kg | 155 mm mm | AXIS FOR PARALLELBAR |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
