Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Name | Product Net Depth / Length |
|---|---|---|---|---|---|

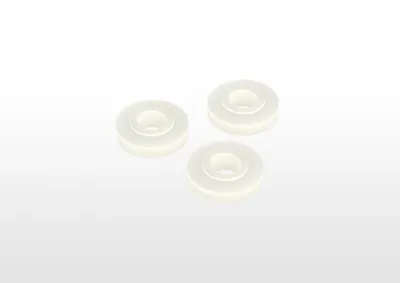

| 3HNA029806-001 | REP.KIT CLEANING ADAPTER | 0.009 kg kg | 0.009 kg kg | REP.KIT CLEANING ADAPTER | — |
| 9ADA618-59 | Torx Pan Head Screw | 0.008 kg kg | 0.008 kg kg | Torx Pan Head Screw | 35 mm mm |

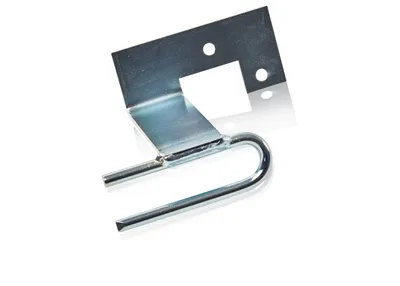

| 3HAB5928-1 | Cable guide upper arm | 0.15 kg kg | 0.15 kg kg | Cable guide upper arm | 113 mm mm |

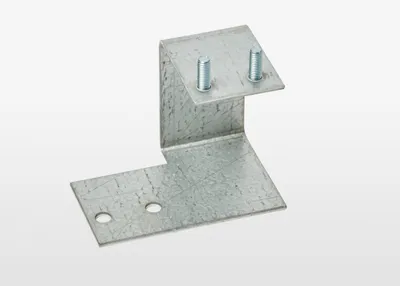

| 3HAB5921-1 | Bracket | 0.107 kg kg | 0.107 kg kg | Bracket | 75 mm mm |
| IRB1200-5kg/900mm for good environm | IRB 1200-5kg/900mm for good environment | 101 kg kg | 101 kg kg | - | 967 mm mm |
| IRB 1200 Samsung | IRB 1200 Samsung | 54 kg kg | 53 kg kg | - | 671 mm mm |
| IRB1200-7kg/700mm for good environm | IRB1200-7kg/700mm for good environment | 101 kg kg | 101 kg kg | - | 967 mm mm |
| E3HAC060331-001 | Rot ac motor with pinion | 12.6 kg kg | 13.86 kg kg | Rot ac motor with pinion | 319 mm mm |

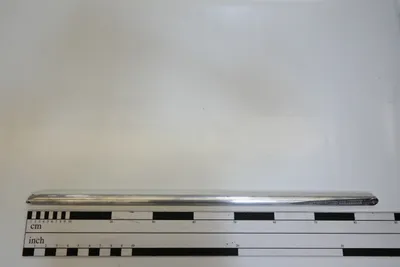

| 3HNA001569-001 | MASTERING ROD SERVO 3 | 0 kg kg | 0 kg kg | MASTERING ROD SERVO 3 | — |

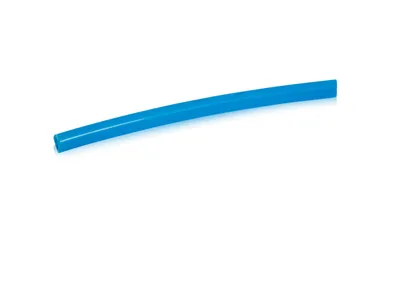

| 3HNA003185-001 | HOSE 4 x 6 PA, BU | 0.01 kg kg | 0.01 kg kg | HOSE 4 x 6 PA, BU | 45 mm mm |

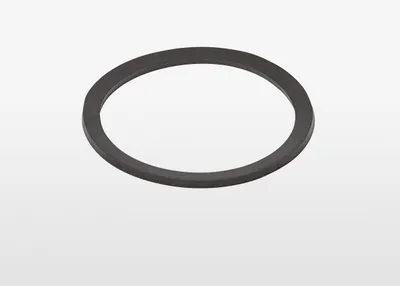

| 3HAC5329-1 | Flange Gasket ax.4 | 0.006 kg kg | 0.006 kg kg | Flange Gasket ax.4 | — |

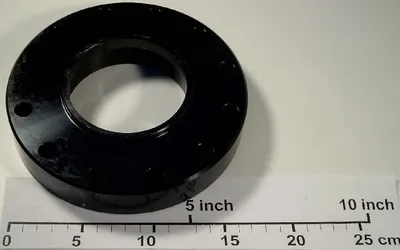

| 3HAC023306-001 | Flange extension | 4.54 kg kg | 4.54 kg kg | Flange extension | — |
| 3HAC063707-001 | Gasket | 0.002 kg kg | 0.002 kg kg | Gasket | 121 mm mm |
| E3HAC049645-001 | EXCH. Drive unit, Ax 2 | 5.84 kg kg | 5.84 kg kg | EXCH. Drive unit, Ax 2 | — |

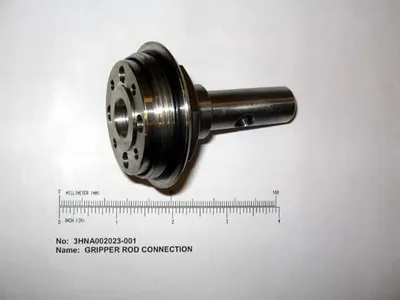

| 3HNA002023-001 | GRIPPER ROD CONNECTION | 0.29 kg kg | 0.29 kg kg | GRIPPER ROD CONNECTION | — |

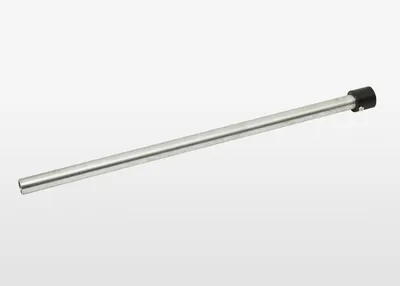

| 3HNA016680-001 | PROTECTION COVER L.470 | 0.16 kg kg | 0.16 kg kg | PROTECTION COVER L.470 | 495 mm mm |

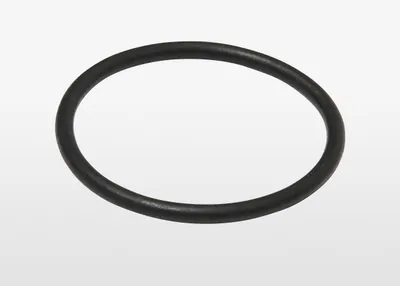

| 3HAB3772-21 | O-ring | 0.003 kg kg | 0.003 kg kg | O-ring | 30 mm mm |

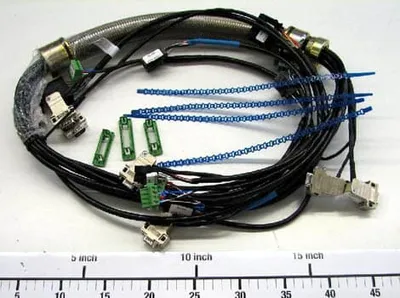

| 3HNA002323-001 | CABLE REPLACEMENT FOR 3HNE06089-1 | 2.87 kg kg | 2.87 kg kg | CABLE REPLACEMENT FOR 3HNE06089-1 | — |

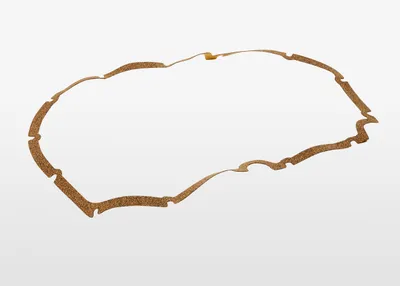

| 3HAC025154-001 | Gasket | 0.01 kg kg | 0.01 kg kg | Gasket | 470 mm mm |

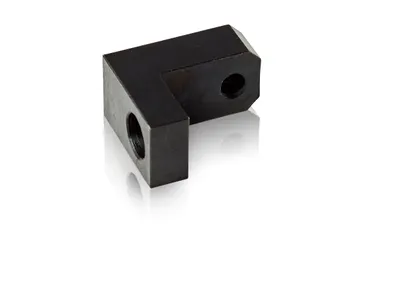

| 3HNA019232-001 | ADJUSTING BLOCK | 0.04 kg kg | 0.04 kg kg | ADJUSTING BLOCK | 30 mm mm |

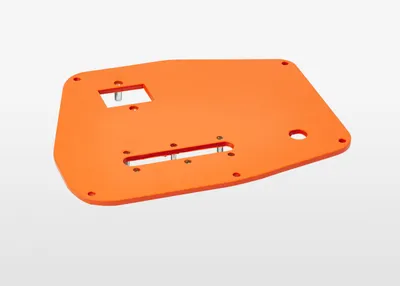

| 3HAC048332-001 | Cover SMB | 2.24 kg kg | 2.24 kg kg | Cover SMB | 284 mm mm |
| 3HAA2356-14 | Washer SRKB | 0.002 kg kg | 0.002 kg kg | Washer SRKB | — |

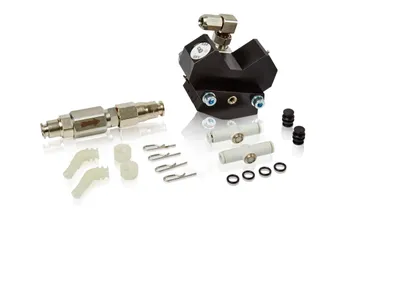

| 3HNA016767-001 | CLEANING UNIT | 0.42 kg kg | 0.42 kg kg | CLEANING UNIT | — |

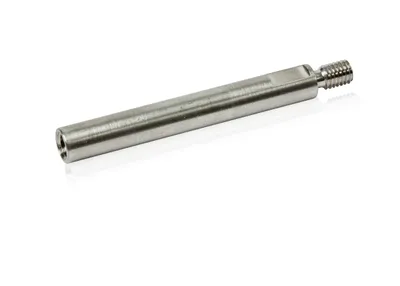

| 3HNA016764-001 | ASSEMBLY PIN | 0.003 kg kg | 0.003 kg kg | ASSEMBLY PIN | 60 mm mm |
Common to all listed parts
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
