Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|

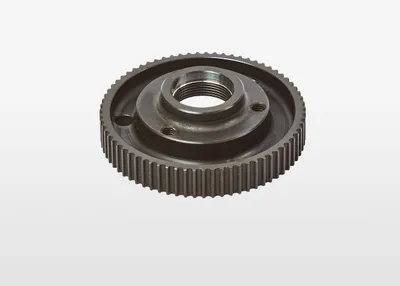

| 3HAC025596-001 | Timing belt pulley | 0.2 kg kg | 0.2 kg kg | 65 mm mm | Timing belt pulley |

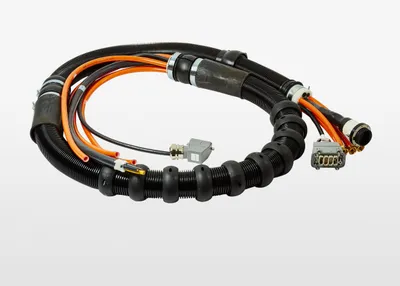

| 3HAC023170-001 | Proc cable package Upper arm SW2 | 20 kg kg | 20 kg kg | 4560 mm mm | Proc cable package Upper arm SW2 |
| 3HAC10475-1 | Wrist Std/F | 6.56 kg kg | 6.56 kg kg | — | Wrist Std/F |

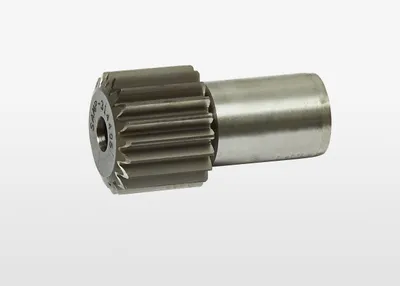

| 3HAC046186-002 | Pinion RV-700N-302,05 | 0.16 kg kg | 0.16 kg kg | 55 mm mm | Pinion RV-700N-302,05 |
| 9ADA183-39 | Hex socket head cap screw M8 x 35 ZINCPL | 0.018 kg kg | 0.018 kg kg | 44 mm mm | Hex socket head cap screw M8 x 35 Z |

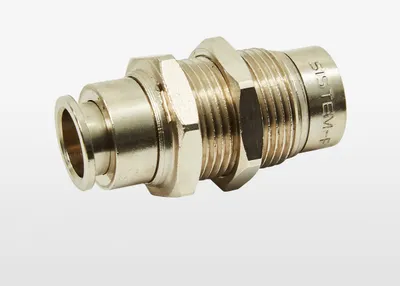

| 3HNA022520-001 | PUSH-IN CONNECTOR | 0.08 kg kg | 0.08 kg kg | 50 mm mm | PUSH-IN CONNECTOR |

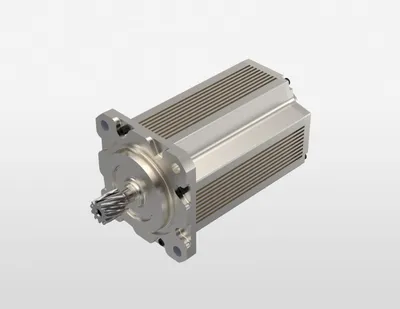

| 3HAC058368-003 | Motor incl Pinion | 6.5 kg kg | 6.5 kg kg | 142 mm mm | Motor incl Pinion |

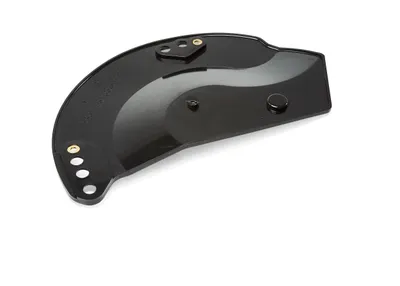

| 3HAC021071-001 | Cable protec lower arm, type-b | 0.2 kg kg | 0.2 kg kg | 360 mm mm | Cable protec lower arm, type-b |

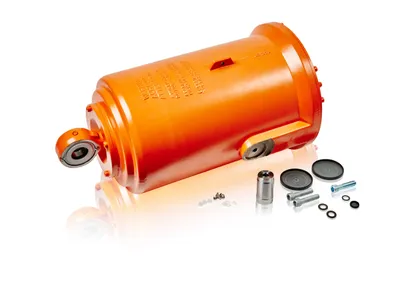

| 3HAC051384-003 | Balancing device | 185 kg kg | 185 kg kg | 787 mm mm | Balancing device |
| CS-0240 | REP. KIT BAL. UNIT S2/S3 | 0.936 kg kg | 0.936 kg kg | — | REP. KIT BAL. UNIT S2/S3 |

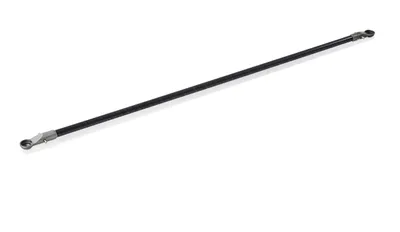

| 3HAC029024-001 | Bar | 0.1 kg kg | 0.24 kg kg | 823 mm mm | Bar |

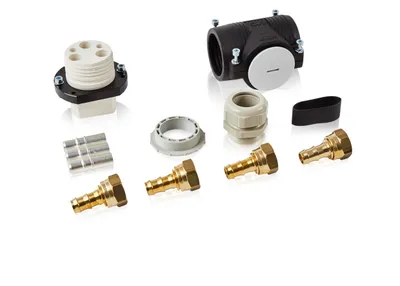

| 3HAC023072-001 | Weld, Proc 1-4 axis 6 (35mm2) | 0.87 kg kg | 0.87 kg kg | — | Weld, Proc 1-4 axis 6 (35mm2) |

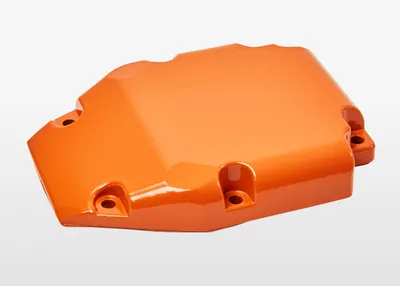

| 3HAC032811-001 | Motor Cover ax. 6 | 0.39 kg kg | 0.39 kg kg | 165 mm mm | Motor Cover ax. 6 |
| CS-0230 | REP.KIT PRES. SENS. BLOCK | 0.01 kg kg | 0.01 kg kg | — | REP.KIT PRES. SENS. BLOCK |

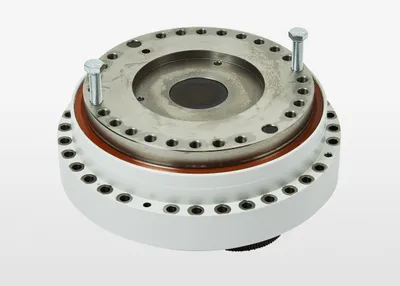

| 3HAC046186-003 | Reduction Gear RV-700N-284,4 | 104.3 kg kg | 104.3 kg kg | 395 mm mm | Reduction Gear RV-700N-284,4 |

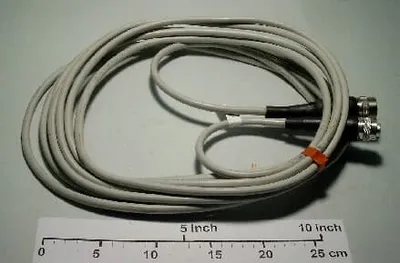

| 3HAC16425-1 | SMB signal cable 7m | 0 kg kg | 0 kg kg | — | SMB signal cable 7m |
| 9ADA183-37 | Hex socket head cap screw | 0.015 kg kg | 0.015 kg kg | — | Hex socket head cap screw |

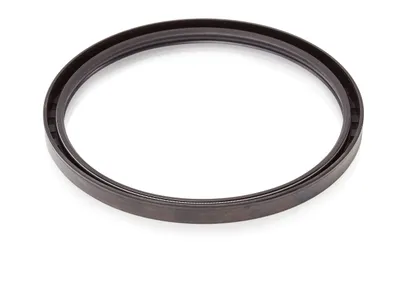

| 3HAB4317-1 | Sealing | 0.21 kg kg | 0.21 kg kg | 215 mm mm | Sealing |

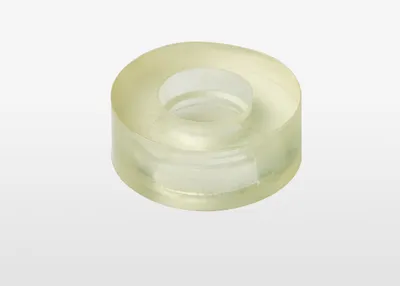

| 3HAC031871-001 | Damper | 0.003 kg kg | 0.003 kg kg | 15 mm mm | Damper |

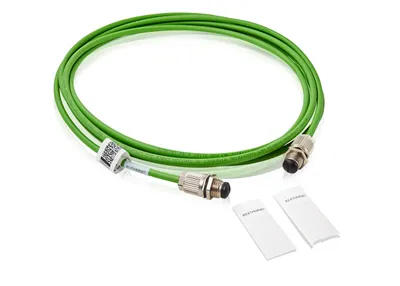

| 3HAC034203-001 | Ethernet cable, Lower arm | 0.3 kg kg | 0.3 kg kg | — | Ethernet cable, Lower arm |

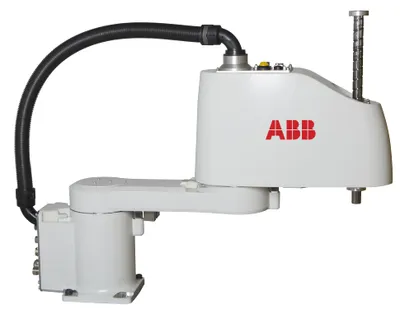

| 3HAC056161-003 | IRB 910SC 0.55 10M | 25 kg kg | 25 kg kg | 825 mm mm | - |
| 3HAC056161-002 | IRB 910SC 0.55 | 25 kg kg | 25 kg kg | 825 mm mm | - |
| 3HAC3242-4 | Fixing plate axis 3 | 0.12 kg kg | 0.12 kg kg | — | Fixing plate axis 3 |
| E3HAC049992-001 | EXCH. Upper arm with Wrist, orange | 5.72 kg kg | 5.72 kg kg | 430 mm mm | EXCH. Upper arm with Wrist, orange |
Common to all listed parts
| Selling Unit of Measure | piece |
| Quote Only | No |
| Made To Order | No |
