Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Customs Tariff Number | Product Net Weight | Gross Weight | Product Name |
|---|---|---|---|---|---|
| IRB 8700 OmniCore | IRB 8700 OmniCore | 84795000 | 4725 kg kg | 4725 kg kg | - |

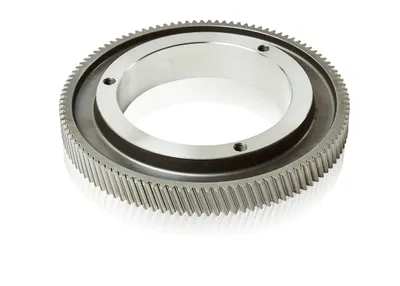

| 3HAA1001-24 | Gear | 84839089 | 7.78 kg kg | 7.78 kg kg | Gear |

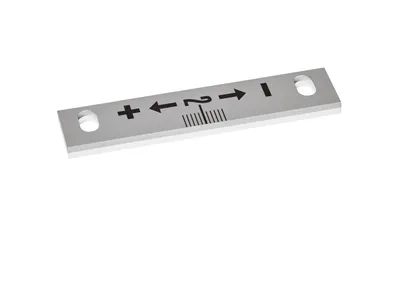

| 3HAA1001-74 | Sync. plate, axis 2 | 73182200 | 0.005 kg kg | 0.005 kg kg | Sync. plate, axis 2 |

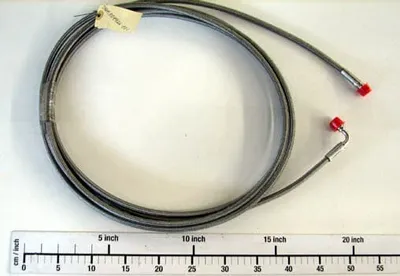

| 3HNA004926-001 | HP-HOSE 1/4", 5800MM | 84799070 | 0 kg kg | 0 kg kg | HP-HOSE 1/4", 5800MM |

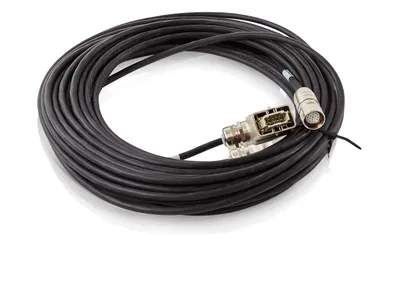

| 3HAC16844-13 | Cable to splitbox, 22m | 85444290 | 3.41 kg kg | 3.41 kg kg | Cable to splitbox, 22m |

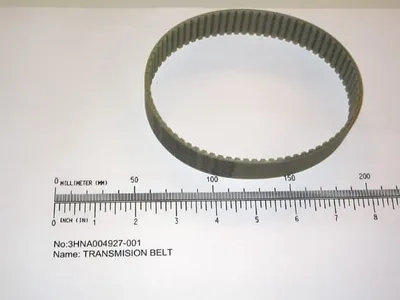

| 3HNA004927-001 | TRANSMISION BELT | 40169300 | 0 kg kg | 0 kg kg | TRANSMISION BELT |

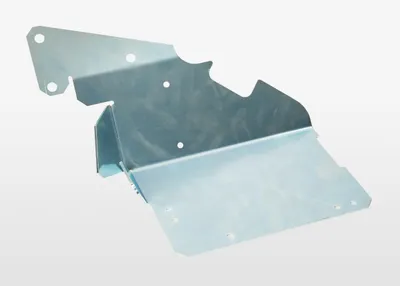

| 3HAC033268-001 | Cover plate | 84799070 | 1.791 kg kg | 1.791 kg kg | Cover plate |
| E3HAC026110-001 | Motor incl pinion | 85015220 | 5.3 kg kg | 5.3 kg kg | Motor incl pinion |

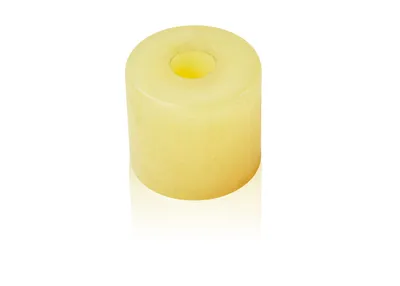

| 3HAC4444-1 | Damper | 39269097 | 0.046 kg kg | 0.046 kg kg | Damper |
| 3HAC056165-001 | Main cable, 450 reach | 85444290 | 2.66 kg kg | 2.66 kg kg | Main cable, 450 reach |

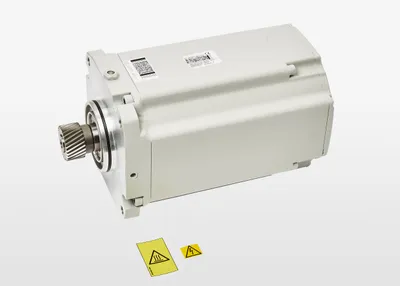

| 3HAC062340-003 | Motor incl pinion | 85015220 | 32 kg kg | 32 kg kg | Motor incl pinion |

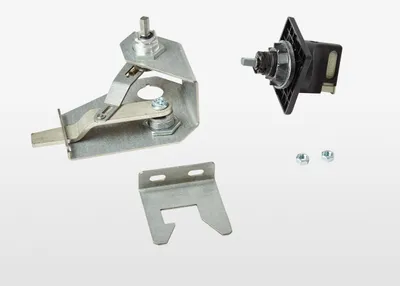

| 3HNA008382-001 | INTERLOCK WITH SWITCH | 85365080 | 0.54 kg kg | 0.54 kg kg | INTERLOCK WITH SWITCH |

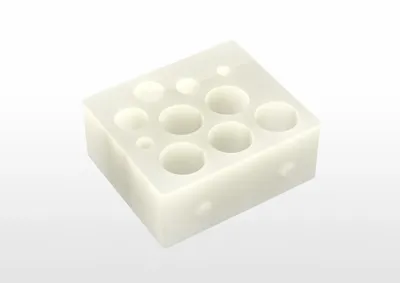

| 3HAC11487-6 | Rubberclamp | 40169300 | 0.112 kg kg | 0.112 kg kg | Rubberclamp |

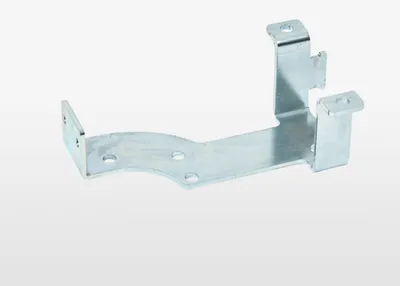

| 3HAC11497-6 | Metal clamp ax 1 | 84799070 | 0.22 kg kg | 0.22 kg kg | Metal clamp ax 1 |

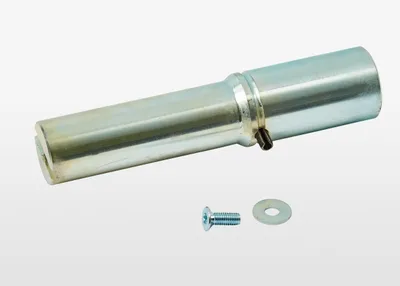

| 3HAC025290-001 | Mech stop pin, set, ax 3 | 84799070 | 1 kg kg | 1 kg kg | Mech stop pin, set, ax 3 |

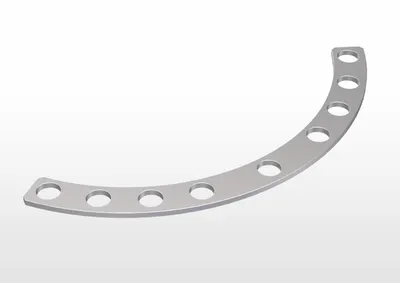

| 3HAC039489-001 | Washer, RV Gear box | 84799070 | 0.07 kg kg | 0.07 kg kg | Washer, RV Gear box |

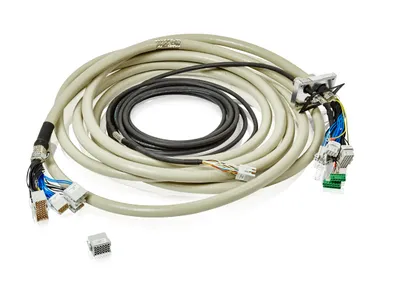

| 3HNA007330-001 | CABLE AC-AX MAIN | 85444290 | 13.5 kg kg | 13.5 kg kg | CABLE AC-AX MAIN |

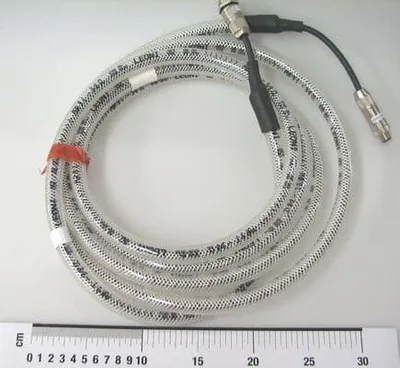

| 3HAC031965-001 | Profinet cable lower arm | 85444290 | 0.88 kg kg | 0.88 kg kg | Profinet cable lower arm |

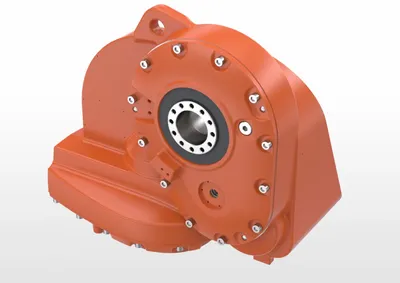

| 3HNA029360-001 | GEARBOX AXIS 1-2, Orange | 84834090 | 126 kg kg | 126 kg kg | GEARBOX AXIS 1-2, Orange |

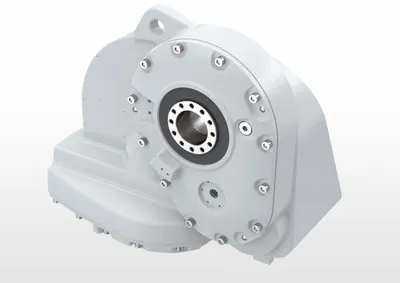

| 3HNA029360-002 | GEARBOX AXIS 1-2, Graphite White | 84834090 | 126 kg kg | 126 kg kg | GEARBOX AXIS 1-2, Graphite White |

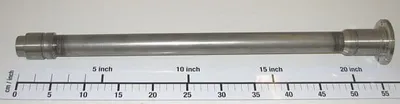

| 3HAC10445-1 | Driving shaft axis 5 | 84799070 | 2.3 kg kg | 2.3 kg kg | Driving shaft axis 5 |
| 9ADA183-36 | Hex socket head cap screw | 73181562 | 0.009 kg kg | 0.009 kg kg | Hex socket head cap screw |

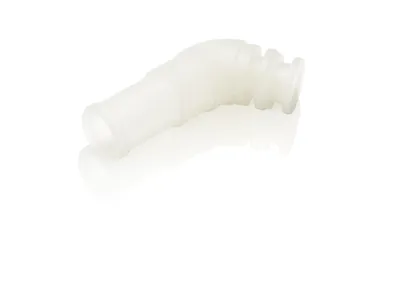

| 3HNA014059-001 | CONNECTOR 30° | 39269097 | 0.005 kg kg | 0.005 kg kg | CONNECTOR 30° |

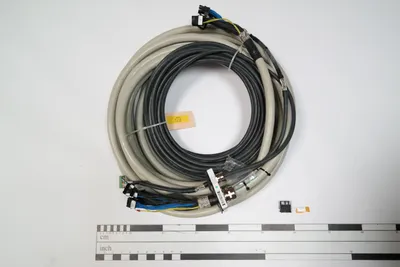

| 3HNA007332-001 | CABLE AC-AX MAIN | 85444290 | 25 kg kg | 27 kg kg | CABLE AC-AX MAIN |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
