Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Name | ABB Type Designation |
|---|---|---|---|---|---|

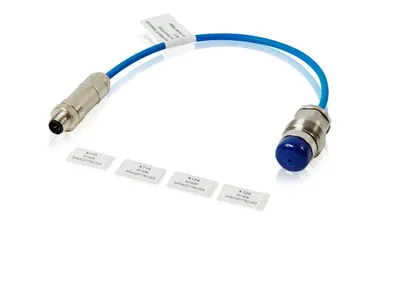

| 3HNA021752-003 | CABLE PRESSURE TRANSDUCER | 0.14 kg kg | 0.14 kg kg | CABLE PRESSURE TRANSDUCER | - |

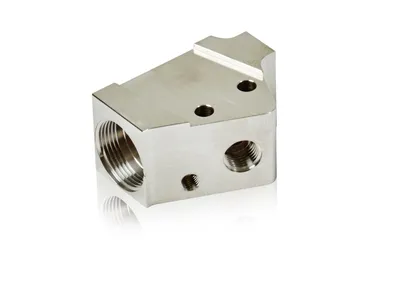

| 3HNA025422-001 | 1x2/2 VALVE BLOCK | 0.3 kg kg | 0.3 kg kg | 1x2/2 VALVE BLOCK | STAINLESS AISI 303/304 |

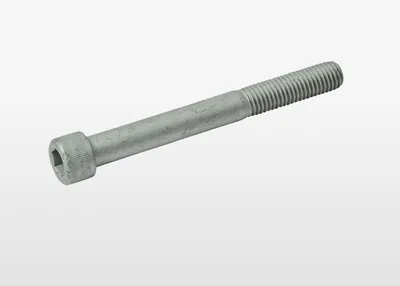

| 3HAB3409-77 | Hex socket head cap screw M12 x 110 | 0.12 kg kg | 0.12 kg kg | Hex socket head cap screw M12 x 110 | Steel 12.9 Gle 603+Geo500 M12x110 |

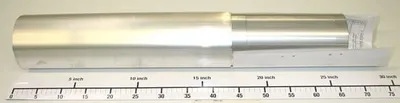

| 3HAC0235-1 | Tubular shaft 5kg | 4.4 kg kg | 4.4 kg kg | Tubular shaft 5kg | 1.8/5KG |

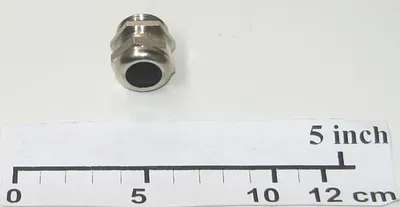

| 3HAC4772-13 | Cable gland (tabular dr.) | 0 kg kg | 0 kg kg | Cable gland (tabular dr.) | . Pg16 (Pr22,5) |

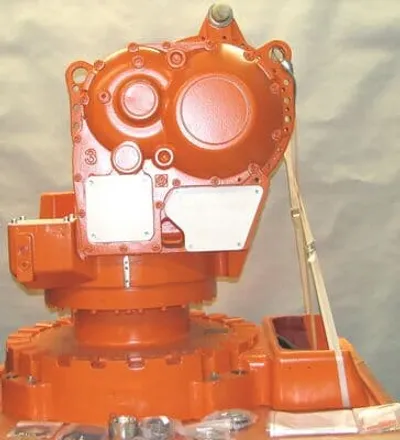

| 3HAC7149-1 | GEAR BOX | 1015 kg kg | 1015 kg kg | GEAR BOX | AXIS 1-3 INC. BASE |

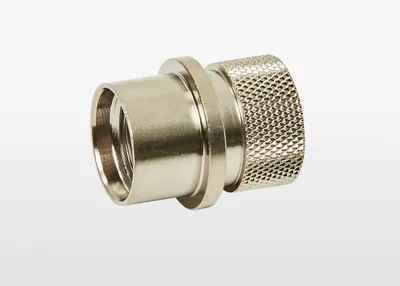

| 3HAC023621-001 | Shrink boot adapter, shell size 10 | 0.006 kg kg | 0.006 kg kg | Shrink boot adapter, shell size 10 | UTO10AD Shell size 10 |
| E3HAC057549-003 | Rot ac motor with pinion | 9.2 kg kg | 10.52 kg kg | Rot ac motor with pinion | 46x25x27 |

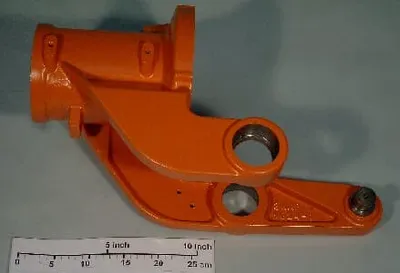

| 3HAC0236-1 | HOUSING AXIS 4 | 16.5 kg kg | 16.5 kg kg | HOUSING AXIS 4 | 1,8/5KG |
| 21522012-430 | O-ring | 0.003 kg kg | 0.003 kg kg | O-ring | Nitrile rubber D=89,5x3,0 |

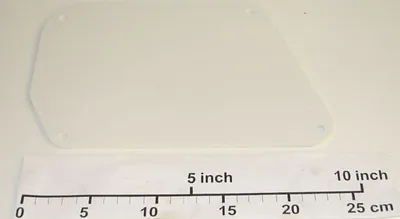

| 3HAB7241-1 | Cover SMB/Masking | 0.122 kg kg | 0.122 kg kg | Cover SMB/Masking | - |

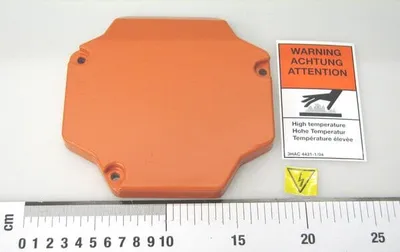

| 3HAC030324-002 | Cover | 0.76 kg kg | 0.76 kg kg | Cover | Irb 6400 ax2 |

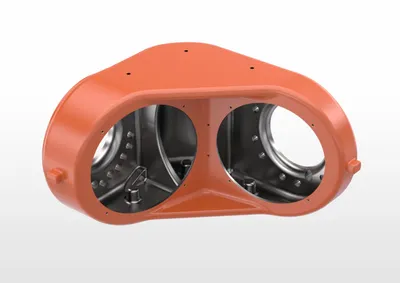

| 3HNA029310-003 | Foot Rotary, Orange | 154 kg kg | 154 kg kg | Foot Rotary, Orange | - |

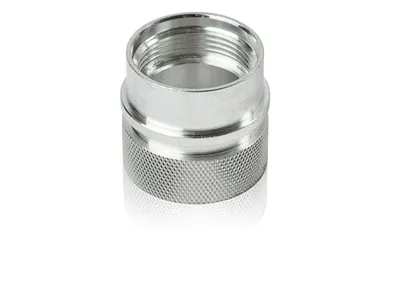

| 3HAC023621-004 | Shrink boot adapter, shell size 16 | 0.3 kg kg | 0.3 kg kg | Shrink boot adapter, shell size 16 | UTO16AD Shell size 16 |

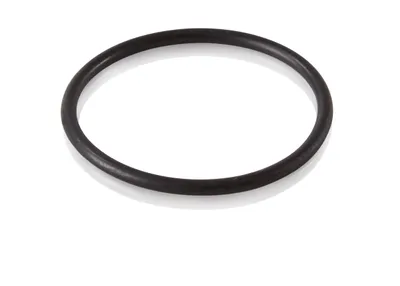

| 3HAB3772-14 | O-ring | 0.003 kg kg | 0.003 kg kg | O-ring | Nitrile rubber 29x2 |

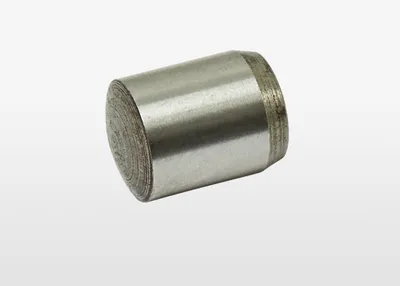

| 3HAC3785-10 | Parallel pin | 0.008 kg kg | 0.008 kg kg | Parallel pin | SS2375 10 x 14 m6 |

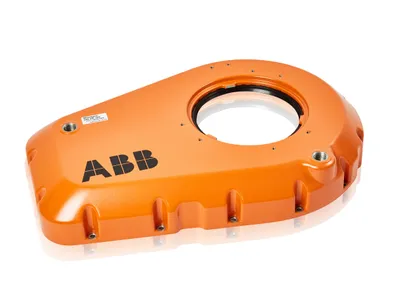

| 3HAC048314-001 | Cover with Gasket | 4.96 kg kg | 4.96 kg kg | Cover with Gasket | - |
| 21522012-535 | O-ring | 0.02 kg kg | 0.02 kg kg | O-ring | Nitrile rubber 169,3x5,7 |

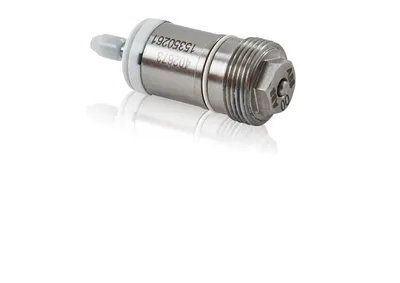

| 3HNA022998-001 | 2/2 VALVE | 0.02 kg kg | 0.02 kg kg | 2/2 VALVE | - |

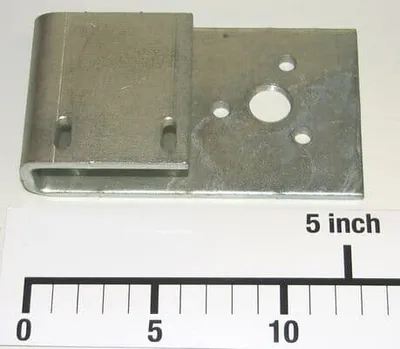

| 3HAB8194-1 | Switchbracket ax2 | 0.6 kg kg | 0.6 kg kg | Switchbracket ax2 | - |

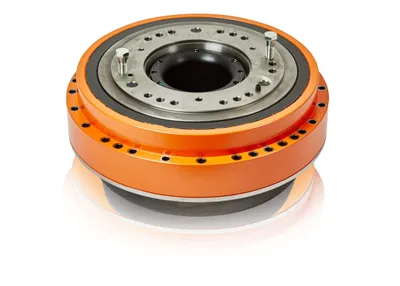

| 3HAC037638-002 | RV 500C-219.95 | 197 kg kg | 197 kg kg | RV 500C-219.95 | Std/F+ |
| 3HAC025503-001 | Cable harness man. ax1-4 | 12.216 kg kg | 12.216 kg kg | Cable harness man. ax1-4 | 55x38x19 |

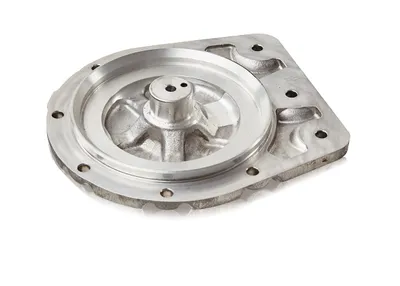

| 3HAB8890-1 | Cover | 0.653 kg kg | 0.653 kg kg | Cover | - |

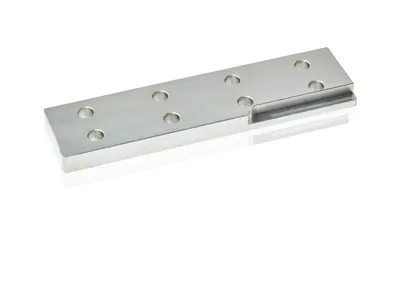

| 3HNA019222-001 | BELT FASTENER | 0.1 kg kg | 0.1 kg kg | BELT FASTENER | - |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| WEEE Category | Product Not in WEEE Scope |
