Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Height | Product Name |
|---|---|---|---|---|---|

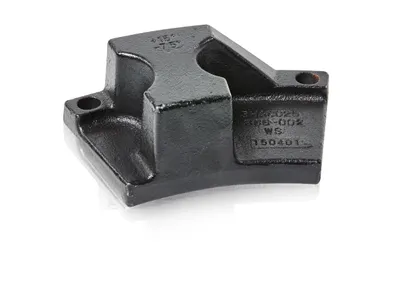

| 3HAC025366-001 | Stop +15°/-7,5° | 5 kg kg | 5 kg kg | 80 mm mm | Stop +15°/-7,5° |
| 9ADA629-42 | Torx pan head roll. screw | 0.002 kg kg | 0.002 kg kg | 10 mm mm | Torx pan head roll. screw |

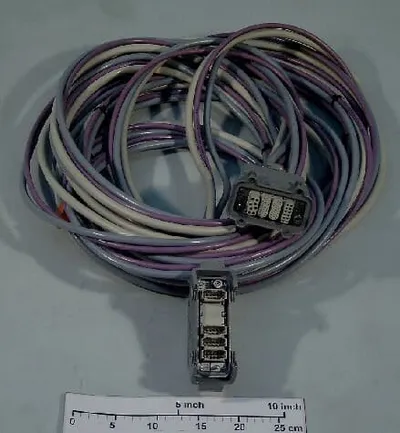

| 3HAC17200-1 | Harness CP/CS, PROFIB 15m | 8.5 kg kg | 8.5 kg kg | — | Harness CP/CS, PROFIB 15m |
| 3HAC14290-1 | Middle Jaw | 0.013 kg kg | 0.013 kg kg | 30 mm mm | Middle Jaw |
| IRB 6790 OmniCore | IRB 6790 OmniCore | 1265 kg kg | 0 kg kg | 2445 mm mm | - |

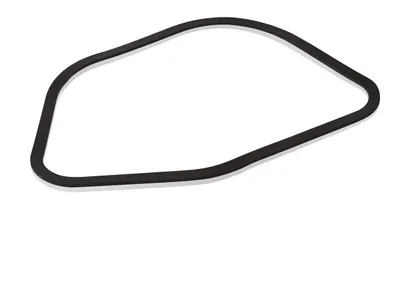

| 3HAC026690-001 | Gasket | 0.04 kg kg | 0.04 kg kg | 3 mm mm | Gasket |
| IRB 760 OmniCore | IRB 760 OmniCore | 2460 kg kg | 2460 kg kg | 2504 mm mm | - |

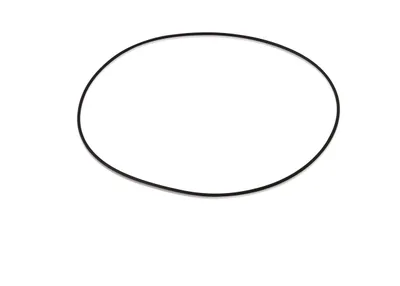

| 3HAB3772-64 | O-ring | 0.002 kg kg | 0.002 kg kg | 2 mm mm | O-ring |
| 21522012-438 | O-ring | 0.006 kg kg | 0.006 kg kg | — | O-ring |

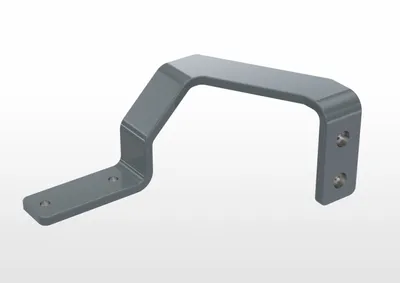

| 3HAC053988-001 | Frame adapter plate | 0.485 kg kg | 0.485 kg kg | 71 mm mm | Frame adapter plate |

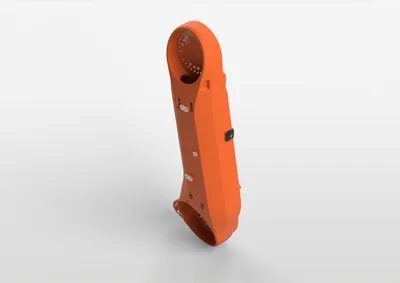

| 3HAC048323-002 | Lower arm short | 127 kg kg | 127 kg kg | — | Lower arm short |

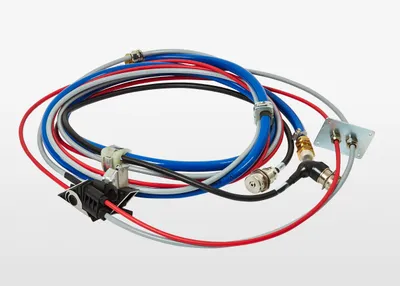

| 3HAC11448-1 | Harness ass'y CP/CFIB a3 | 2.78 kg kg | 2.78 kg kg | 65 mm mm | Harness ass'y CP/CFIB a3 |

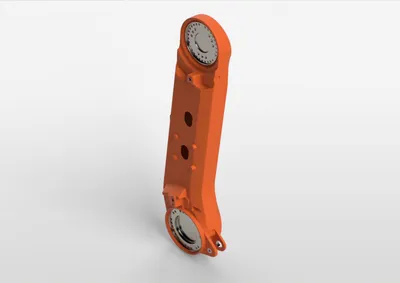

| 3HAC048324-002 | Lower arm long | 136 kg kg | 136 kg kg | — | Lower arm long |

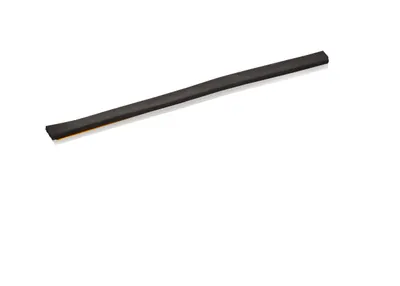

| 3HAC053986-001 | Weatherstrip | 0 kg kg | 0 kg kg | — | Weatherstrip |

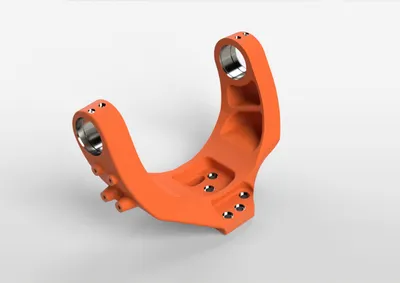

| 3HAC048327-001 | Cradle | 28 kg kg | 28 kg kg | 310 mm mm | Cradle |

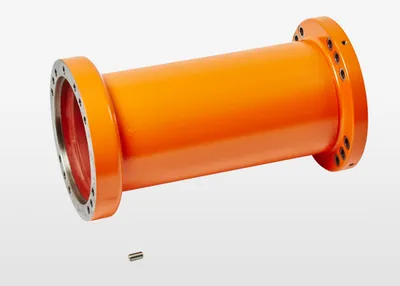

| 3HAC048326-001 | Arm extender 410mm | 20 kg kg | 20 kg kg | 235 mm mm | Arm extender 410mm |

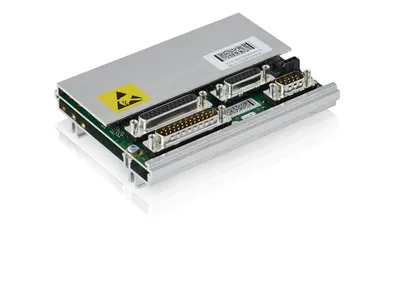

| 3HAC043904-001 | DSQC 633C Measurement Unit | 0.28 kg kg | 0.28 kg kg | 27.5 mm mm | DSQC 633C Measurement Unit |

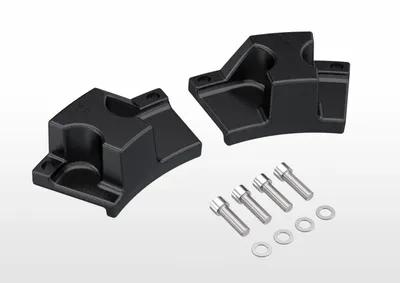

| 3HAC025204-003 | Movable mech stop set, ax 1 | 10.172 kg kg | 10.172 kg kg | — | Movable mech stop set, ax 1 |

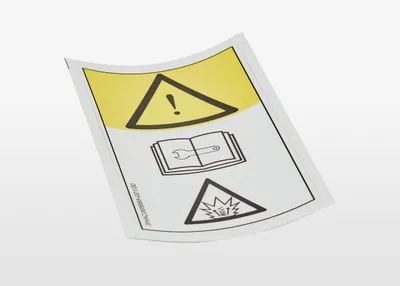

| 3HAC065665-001 | Warning label | 0.006 kg kg | 0.006 kg kg | 1 mm mm | Warning label |

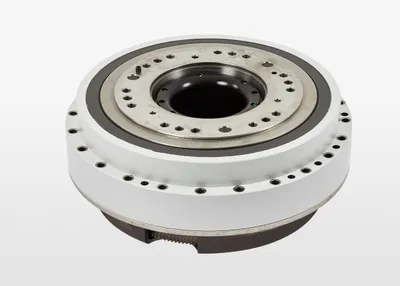

| 3HAC037638-005 | RV 500C-219.95 | 197 kg kg | 197 kg kg | 250 mm mm | RV 500C-219.95 |

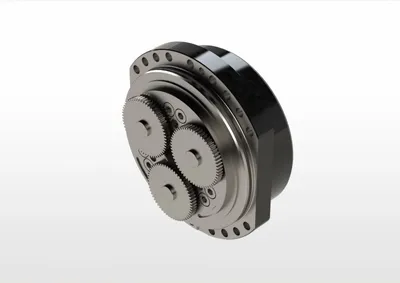

| 3HAC037639-002 | RV 125F-178.41 | 17.6 kg kg | 17.6 kg kg | — | RV 125F-178.41 |

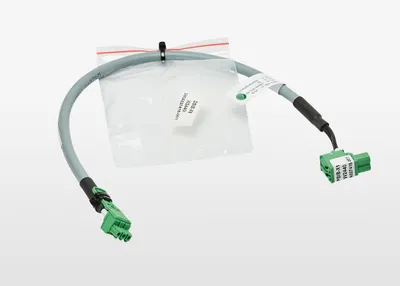

| 3HNA027415-001 | CABLE VCBI.X7 - PSIB.X1 | 0.02 kg kg | 0.02 kg kg | 10 mm mm | CABLE VCBI.X7 - PSIB.X1 |

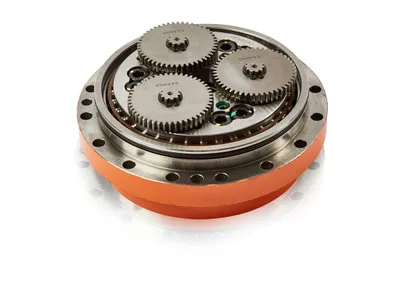

| 3HAC048318-001 | Reduction Gear RV-80N-129 | 8.9 kg kg | 8.9 kg kg | 90 mm mm | Reduction Gear RV-80N-129 |

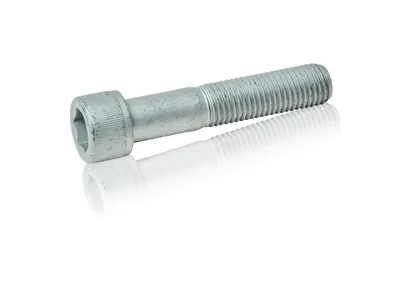

| 3HAB3409-89 | Hex socket head cap screw M16 x 80 | 0.15 kg kg | 0.15 kg kg | 25 mm mm | Hex socket head cap screw M16 x 80 |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
