ComPact INS/INV Parts





Switch disconnector, Compact INS160, 160A, with red rotary handle and yellow front, 4 poles

Switch disconnector, Compact INS160, 160A, with red rotary handle and yellow front, 3 poles

Switch disconnector, Compact INS125, 125A, with red rotary handle and yellow front, 4 poles

Switch disconnector, Compact INS125, 125A, with red rotary handle and yellow front, 3 poles

Switch disconnector, Compact INS100, 100A, with red rotary handle and yellow front, 4 poles

Switch disconnector, Compact INS100, 100A, with red rotary handle and yellow front, 3 poles

Switch disconnector, Compact INS80, 80A, with red rotary handle and yellow front, 4 poles

Switch disconnector, Compact INS80, 80A, with red rotary handle and yellow front, 3 poles

Switch disconnector, Compact INS63, 63A, with red rotary handle and yellow front, 4 poles

Switch disconnector, Compact INS63, 63A, with red rotary handle and yellow front, 3 poles

Switch disconnector, Compact INS40, 40A, with red rotary handle and yellow front, 4 poles

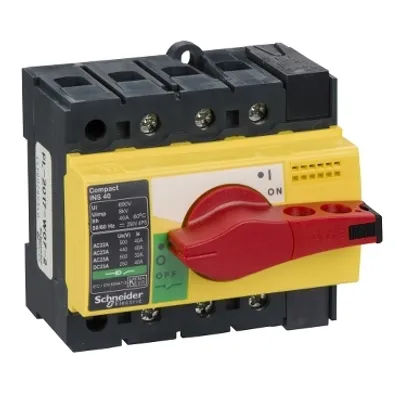

Switch disconnector, Compact INS40, 40A, with red rotary handle and yellow front, 3 poles

Switch disconnector, Compact INS160, 160A, standard version with black rotary handle, 4 poles

Switch disconnector, Compact INS160, 160A, standard version with black rotary handle, 3 poles

Switch disconnector, Compact INS125, 125A, standard version with black rotary handle, 4 poles

Switch disconnector, Compact INS125, 125A, standard version with black rotary handle, 3 poles

Switch disconnector, Compact INS100, 100A, standard version with black rotary handle, 4 poles

Switch disconnector, Compact INS100, 100A, standard version with black rotary handle, 3 poles

Switch disconnector, Compact INS80, 80A, standard version with black rotary handle, 4 poles

Switch disconnector, Compact INS80, 80A, standard version with black rotary handle, 3 poles
Compare ComPact INS/INV
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | [Ue] rated operational voltage | Mounting support | Net weight | Product certifications | [Ith] conventional free air thermal current |
|---|---|---|---|---|---|
| 28998 | 600 V AC 50/60 Hz | 35 mm symmetrical DIN rail, Plate | 0.8 kg | KEMA, ASEFA, ASTA | — |
| 28996 | 600 V AC 50/60 Hz | Plate, 35 mm symmetrical DIN rail | 0.8 kg | ASTA, ASEFA, KEMA | — |
| 28995 | 600 V AC 50/60 Hz | Plate, 35 mm symmetrical DIN rail | 0.9 kg | ASEFA, ASTA, KEMA | — |
| 28994 | 600 V AC 50/60 Hz | 35 mm symmetrical DIN rail, Plate | 0.8 kg | ASTA, KEMA, ASEFA | — |
| 28929 | 250 V DC, 690 V AC 50/60 Hz | Plate, DIN rail | 0.9 kg | KEMA-KEUR, CCC | 160 A at 60 °C |
| 28928 | 125 V DC, 690 V AC 50/60 Hz | Plate, DIN rail | 0.8 kg | CCC, KEMA-KEUR | 160 A at 60 °C |
| 28927 | 250 V DC, 690 V AC 50/60 Hz | Plate, DIN rail | 0.9 kg | CCC, KEMA-KEUR | 125 A at 60 °C |
| 28926 | 125 V DC, 690 V AC 50/60 Hz | DIN rail, Plate | 0.8 kg | CCC, KEMA-KEUR | 125 A at 60 °C |
| 28925 | 250 V DC, 690 V AC 50/60 Hz | Plate, DIN rail | 0.9 kg | CCC, KEMA-KEUR | 100 A at 60 °C |
| 28924 | 125 V DC, 690 V AC 50/60 Hz | DIN rail, Plate | 0.8 kg | KEMA-KEUR, CCC | 100 A at 60 °C |
| 28921 | 500 V AC 50/60 Hz, 250 V DC | Plate, DIN rail | 0.6 kg | CCC, KEMA-KEUR | 80 A at 60 °C |
| 28920 | 125 V DC, 500 V AC 50/60 Hz | DIN rail, Plate | 0.5 kg | KEMA-KEUR, CCC | 80 A at 60 °C |
| 28919 | 500 V AC 50/60 Hz, 250 V DC | Plate, DIN rail | 0.6 kg | CCC, KEMA-KEUR | 63 A at 60 °C |
| 28918 | 125 V DC, 500 V AC 50/60 Hz | Plate, DIN rail | 0.5 kg | CCC, KEMA-KEUR | 63 A at 60 °C |
| 28917 | 500 V AC 50/60 Hz, 250 V DC | Plate, DIN rail | 0.6 kg | KEMA-KEUR, CCC | 40 A at 60 °C |
| 28916 | 125 V DC, 500 V AC 50/60 Hz | DIN rail, Plate | 0.5 kg | KEMA-KEUR, CCC | 40 A at 60 °C |
| 28913 | 250 V DC, 690 V AC 50/60 Hz | Plate, DIN rail | 0.9 kg | CCC, KEMA-KEUR | 160 A at 60 °C |
| 28912 | 125 V DC, 690 V AC 50/60 Hz | Plate, DIN rail | 0.8 kg | CCC, KEMA-KEUR | 160 A at 60 °C |
| 28911 | 250 V DC, 690 V AC 50/60 Hz | DIN rail, Plate | 0.9 kg | CCC, KEMA-KEUR | 125 A at 60 °C |
| 28910 | 125 V DC, 690 V AC 50/60 Hz | DIN rail, Plate | 0.8 kg | CCC, KEMA-KEUR | 125 A at 60 °C |
| 28909 | 250 V DC, 690 V AC 50/60 Hz | DIN rail, Plate | 0.9 kg | KEMA-KEUR, CCC | 100 A at 60 °C |
| 28908 | 125 V DC, 690 V AC 50/60 Hz | Plate, DIN rail | 0.8 kg | CCC, KEMA-KEUR | 100 A at 60 °C |
| 28905 | 500 V AC 50/60 Hz, 250 V DC | Plate, DIN rail | 0.6 kg | CCC, KEMA-KEUR | 80 A at 60 °C |
| 28904 | 125 V DC, 500 V AC 50/60 Hz | Plate, DIN rail | 0.5 kg | CCC, KEMA-KEUR | 80 A at 60 °C |
Common to all listed parts
| Range | ComPact |
| Network frequency | 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Control type | Rotary handle |
| Mounting mode | Fixed |
| Upside connection | Front |
