Home / Schneider Electric / ComPact INS/INV / Schneider Electric 28918
Schneider Electric

Schneider Electric 28918

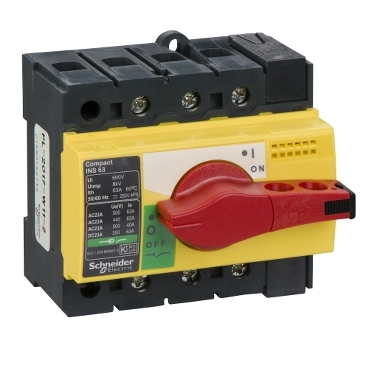

Switch disconnector, Compact INS63, 63A, with red rotary handle and yellow front, 3 poles

MPN
28918
EAN
3303430289180
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 28918 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 28918?

This Compact INS63 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 63A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 125VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS63 is a class II insulation level front-face device as per IEC 60664 standard.

Specifications

Specifications

RangeComPact
Product nameComPacT INS
Product or component typeSwitch disconnector
Poles description3P
Network typeDC, AC
Network frequency50/60 Hz
[Ie] rated operational currentAC-22A: 63 A AC 50/60 Hz 220/240 V, AC-22A: 63 A AC 50/60 Hz 380/415 V, AC-22A: 63 A AC 50/60 Hz 440/480 V, AC-22A: 63 A AC 50/60 Hz 500 V, AC-23A: 40 A AC 50/60 Hz 500 V, AC-23A: 63 A AC 50/60 Hz 220/240 V, AC-23A: 63 A AC 50/60 Hz 380/415 V, AC-23A: 63 A AC 50/60 Hz 440/480 V, DC-22A: 63 A DC 125 V 2 poles in series, DC-23A: 63 A DC 125 V 2 poles in series
[Ui] rated insulation voltage690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV
[Ith] conventional free air thermal current63 A at 60 °C
[Icm] rated short-circuit making capacity15 kA switch-disconnector alone 500 V AC at 50/60 Hz, 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz
[Ue] rated operational voltage125 V DC, 500 V AC 50/60 Hz
Suitability for isolationYes
Contact position indicatorYes
Visible breakNo
Pollution degree3
Control typeRotary handle
Handle colourRed
Mounting modeFixed
Mounting supportPlate, DIN rail
Upside connectionFront
Downside connectionFront
Cable cross section1.5…50 mm²
Maximum powerAC-23: 15 kW at 220/240 V AC 50/60 Hz, AC-23: 22 kW at 500/525 V AC 50/60 Hz, AC-23: 30 kW at 380/415 V AC 50/60 Hz, AC-23: 30 kW at 440 V AC 50/60 Hz
Rated dutyUninterrupted
Intermittent duty classClass 120 - 60 %
[Icw] rated short-time withstand current0.67 kA during 20 s conforming to IEC 60947-3, 1.73 kA during 3 s conforming to IEC 60947-3, 3 kA during 1 s conforming to IEC 60947-3, 0.55 kA during 30 s conforming to IEC 60947-3
Mechanical durability20000 cycles
Electrical durabilityAC-22A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 500 V AC 50/60 Hz, DC-22A: 1500 cycles 250 V DC 2 poles in series, DC-23A: 1500 cycles 250 V DC 2 poles in series
Connection pitch18 mm
Height85 mm
Width90 mm
Depth62.5 mm
Net weight0.5 kg
StandardsIEC 60947-1, IEC 60947-3
Product certificationsCCC, KEMA-KEUR
IP degree of protectionIP40 conforming to IEC 60529
IK degree of protectionIK07 conforming to EN 50102
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-50…85 °C

Packaging

Package 11 PCE, 10.0 cm × 9.5 cm × 10.0 cm (L × W × H), 607.0 g
Package 218 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 11.413 kg
