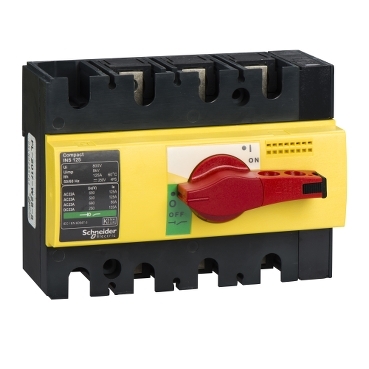

switch disconnector, Compact INS125, 125A, with red rotary handle and yellow front, 3 poles
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ComPact INS/INV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.8 kg |
Shipping & availability
When can 28926 be shipped?
28926 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 28926 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 28926 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 28926, subject to availability and destination.
This Compact INS125 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 125A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 125VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard.
Specifications
Specifications
| Range | ComPact |
| Product name | ComPacT INS |
| Product or component type | Switch disconnector |
| Poles description | 3P |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-22A: 125 A AC 50/60 Hz 220/240 V, AC-22A: 125 A AC 50/60 Hz 380/415 V, AC-22A: 125 A AC 50/60 Hz 440/480 V, AC-22A: 125 A AC 50/60 Hz 500 V, AC-22A: 125 A AC 50/60 Hz 660/690 V, AC-23A: 125 A AC 50/60 Hz 220/240 V, AC-23A: 125 A AC 50/60 Hz 380/415 V, AC-23A: 125 A AC 50/60 Hz 440/480 V, AC-23A: 125 A AC 50/60 Hz 500 V, AC-23A: 80 A AC 50/60 Hz 660/690 V, DC-22A: 125 A DC 125 V 2 poles in series, DC-23A: 125 A DC 125 V 2 poles in series |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 125 A at 60 °C |
| [Icm] rated short-circuit making capacity | 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 20 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 125 V DC, 690 V AC 50/60 Hz |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Visible break | No |
| Pollution degree | 3 |
| Control type | Rotary handle |
| Handle colour | Red |
| Mounting mode | Fixed |
| Mounting support | DIN rail, Plate |
| Upside connection | Front |
| Downside connection | Front |
| Maximum power | AC-23: 55 kW at 440 V AC 50/60 Hz, AC-23: 37 kW at 220/240 V AC 50/60 Hz, AC-23: 55 kW at 380/415 V AC 50/60 Hz, AC-23: 75 kW at 500/525 V AC 50/60 Hz, AC-23: 75 kW at 660/690 V AC 50/60 Hz |
| Rated duty | Uninterrupted |
| Intermittent duty class | Class 120 - 60 % |
| [Icw] rated short-time withstand current | 1 kA during 30 s conforming to IEC 60947-3, 1.23 kA during 20 s conforming to IEC 60947-3, 3.175 kA during 3 s conforming to IEC 60947-3, 5.5 kA during 1 s conforming to IEC 60947-3 |
| Mechanical durability | 15000 cycles |
| Electrical durability | AC-22A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 500 V AC 50/60 Hz, DC-22A: 1500 cycles 250 V DC 2 poles in series, DC-23A: 1500 cycles 250 V DC 2 poles in series, AC-22A: 1500 cycles 690 V AC 50/60 Hz, AC-23A: 1500 cycles 690 V AC 50/60 Hz |
| Connection pitch | 30 mm |
| Height | 100 mm |
| Width | 135 mm |
| Depth | 62.5 mm |
| Net weight | 0.8 kg |
| Standards | IEC 60947-3, IEC 60947-1 |
| Product certifications | CCC, KEMA-KEUR |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 13.500 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 1.038 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.801 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 98.401 kg |
| Warranty (in months) | 18 |
