Schneider Electric
LV429505Crimp lugs for aluminium cable, ComPacT NSX100/250, 150mm², set of 4 parts
ComPacT NSX, new generation Parts
Schneider Electric

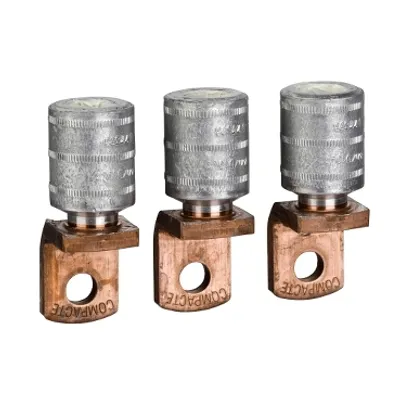

LV429504Crimp lugs for aluminium cable, ComPacT NSX100/250, 150mm², set of 3 parts
Schneider Electric
LV432482Aluminium bare cable connectors, ComPacT NSX, for 2 cables 35mm² to 240mm², 630A, set of 4 parts
Schneider Electric
LV432481Aluminium bare cable connectors, ComPacT NSX, for 2 cables 35mm² to 240mm², 630A, set of 3 parts
Schneider Electric
LV432480Aluminium bare cable connectors, ComPacT NSX, for 1 cable 35mm² to 300mm², 630A, set of 4 parts
Schneider Electric
LV432479Aluminium bare cable connectors, ComPacT NSX, for 1 cable 35mm² to 300mm², 630A, set of 3 parts
Schneider Electric
LV429348Connection accessories, ComPact NSX, EasyPact CVS, voltage tap for aluminium connectors, 6.35mm, 1 or 2 cables, 10 parts
Schneider Electric
LV429260Aluminium bare cable connectors, ComPacT NSX, for 1 cable 120mm² to 185mm², 250A, set of 4 parts
Schneider Electric
LV429259Aluminium bare cable connectors, ComPacT NSX, for 1 cable 120mm² to 185mm², 250A, set of 3 parts
Schneider Electric
LV429249Aluminium bare cable connectors, ComPacT NSX, for 6 cables 1.5mm² to 35mm², 250A, set of 4 parts
Schneider Electric
LV429248Aluminium bare cable connectors, ComPacT NSX, for 6 cables 1.5mm² to 35mm², 250A, set of 3 parts
Schneider Electric
LV429243Steel bare cable connectors, ComPacT NSX, for 1 cable 1.5mm² to 95mm², 160A, set of 4 parts
Schneider Electric
LV429242Steel bare cable connectors, ComPacT NSX, for 1 cable 1.5mm² to 95mm², 160A, set of 3 parts
Schneider Electric
LV429228Aluminium bare cable connectors, ComPacT NSX, for 1 cable 25mm² to 95mm², 250A, set of 4 parts
Schneider Electric
LV429227Aluminium bare cable connectors, ComPacT NSX, for 1 cable 25mm² to 95mm², 250A, set of 3 parts
Schneider Electric
LV432493Terminal extensions, ComPacT NSX 400/630, spreaders 45mm to 70mm pitch, set of 4 parts
Schneider Electric
LV432492Terminal extensions, ComPacT NSX 400/630, spreaders 45mm to 70mm pitch, set of 3 parts
Schneider Electric
LV432491Terminal extensions, ComPacT NSX 400/630, spreaders 45mm to 52.5mm pitch, set of 4 parts
Compare ComPacT NSX, new generation
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Quantity per set | [In] rated current | Conductor material | Connections - terminals |
|---|---|---|---|---|---|
| LV429505 | Crimp lug | Set of 4 | 250 A | Aluminium | Crimp lug1 cable(s) 150 mm² |
| LV429504 | Crimp lug | Set of 3 | 250 A | Aluminium | Crimp lug1 cable(s) 150 mm² |
| LV429258 | Crimp lug | Set of 4 | 250 A | Copper | Crimp lug1 cable(s) 185 mm² |
| LV429257 | Crimp lug | Set of 4 | 250 A | Copper | Crimp lug1 cable(s) 150 mm² |
| LV429256 | Crimp lug | Set of 4 | 250 A | Copper | Crimp lug1 cable(s) 120 mm² |
| LV429254 | Crimp lug | Set of 3 | 250 A | Copper | Crimp lug1 cable(s) 185 mm² |
| LV429253 | Crimp lug | Set of 3 | 250 A | Copper | Crimp lug1 cable(s) 150 mm² |
| LV429252 | Crimp lug | Set of 3 | 250 A | Copper | Crimp lug1 cable(s) 120 mm² |
| LV432482 | Bare cable connector | Set of 4 | 630 A | Aluminium | Screw terminal2 cable(s) 35…240 mm² |
| LV432481 | Bare cable connector | Set of 3 | 630 A | Aluminium | Screw terminal2 cable(s) 35…240 mm² |
| LV432480 | Bare cable connector | Set of 4 | 630 A | Aluminium | Screw terminal1 cable(s) 35…300 mm² |
| LV432479 | Bare cable connector | Set of 3 | 630 A | Aluminium | Screw terminal1 cable(s) 35…300 mm² |
| LV429348 | Voltage plug | Set of 10 | — | — | — |
| LV429260 | Bare cable connector | Set of 4 | 250 A | Aluminium | Screw terminal1 cable(s) 120…185 mm² |
| LV429259 | Bare cable connector | Set of 3 | 250 A | Aluminium | Screw terminal1 cable(s) 120…185 mm² |
| LV429249 | Bare cable connector | Set of 4 | 250 A | Aluminium | Screw terminal6 cable(s) 1.5…35 mm² |
| LV429248 | Bare cable connector | Set of 3 | 250 A | Aluminium | Screw terminal6 cable(s) 1.5…35 mm² |
| LV429243 | Bare cable connector | Set of 4 | 160 A | Steel | Screw terminal1 cable(s) 1.5…95 mm² |
| LV429242 | Bare cable connector | Set of 3 | 160 A | Steel | Screw terminal1 cable(s) 1.5…95 mm² |
| LV429228 | Bare cable connector | Set of 4 | 250 A | Aluminium | Screw terminal1 cable(s) 25…95 mm² |
| LV429227 | Bare cable connector | Set of 3 | 250 A | Aluminium | Screw terminal1 cable(s) 25…95 mm² |
| LV432493 | Spreader | 4 | 630 A | — | — |
| LV432492 | Spreader | 3 | 630 A | — | — |
| LV432491 | Spreader | 4 | 630 A | — | — |
Common to all listed parts
| Accessory / separate part category | Connection accessory |
