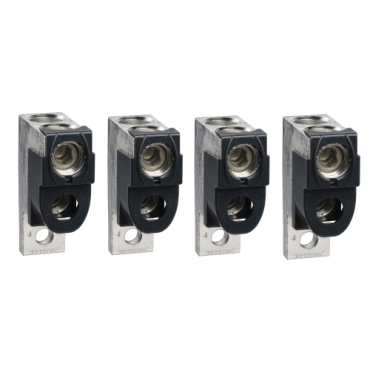

Aluminium bare cable connectors, ComPacT NSX, for 2 cables 35mm² to 240mm², 630A, set of 4 parts
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ComPacT NSX, new generation |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.16 kg |
Shipping & availability
When can LV432482 be shipped?
LV432482 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV432482 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV432482 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV432482, subject to availability and destination.
These accessories are aluminium bare cable connectors for Compact NSX 400/630 and EasyPact CVS 400/630. These connectors can receive 2 copper or aluminium cables from 35mm² to 240mm². The connectors are screwed directly on the device terminals or right angle terminal extensions. The rated current is up to 630 A. They are sold by set of 4 parts.
Specifications
Specifications
| Product or component type | Bare cable connector |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT ComPacT NSX400, ComPacT ComPacT NSX630, ComPacT ComPacT NSX DC, ComPact Compact NSX400, ComPact Compact NSX630, ComPact Compact NSX400 DC, ComPact Compact NSX630 DC, ComPact, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630, ComPact ComPacT INS, ComPact Compact INV |
| Poles description | 4P |
| Quantity per set | Set of 4 |
| [In] rated current | 630 A |
| Conductor material | Aluminium |
| Connections - terminals | Screw terminal2 cable(s) 35…240 mm² |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.700 cm |
| Package 1 Width | 22.000 cm |
| Package 1 Length | 25.500 cm |
| Package 1 Weight | 1.158 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 11.982 kg |
| Warranty (in months) | 18 |
