Brake motor Parts

ABB

VEBM3558T-5

2HP,1764RPM,3PH,60HZ,145TC,3528M,TE

ABB

CEBM3558T

2HP,1760RPM,3PH,60HZ,145TC,3528M,TE

ABB

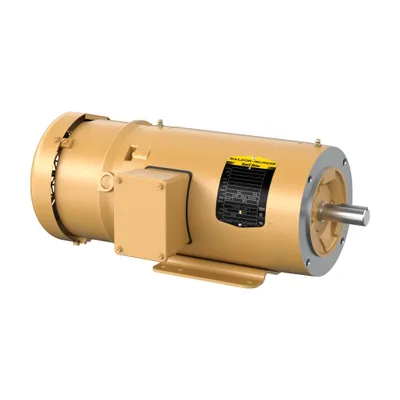

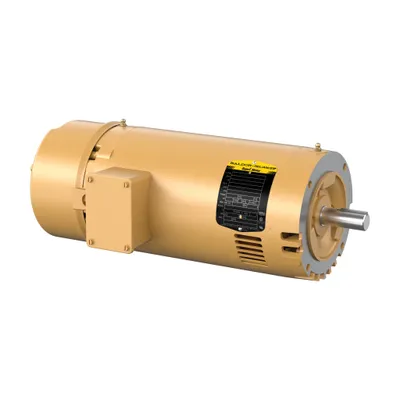

CEBM3554T

1.5HP,1770RPM,3PH,60HZ,145TC,3524M

ABB

VEBM3554T-5

1.5HP,1770RPM,3PH,60HZ,145TC,3524M

ABB

EBM3554TY

1.5HP,1770RPM,3PH,60HZ,145T,3524M,T

ABB

EBM3556TY

1HP,1170RPM,3PH,60HZ,145T,3526M,TEF

ABB

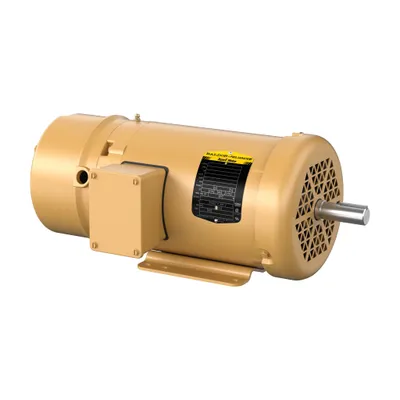

EBM3558TY

2HP,1760RPM,3PH,60HZ,145T,3528M,TEF

ABB

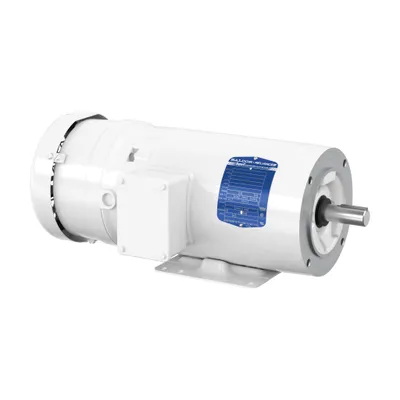

CEWDBM3558T

2HP,1760RPM,3PH,60HZ,145TC,3528M,TE

ABB

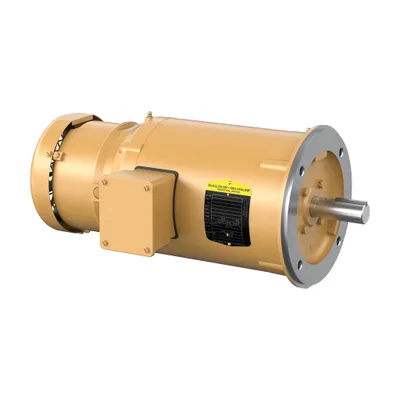

VEBM3611T-5

3HP,1760RPM,3PH,60HZ,182TC,3628M,TE

ABB

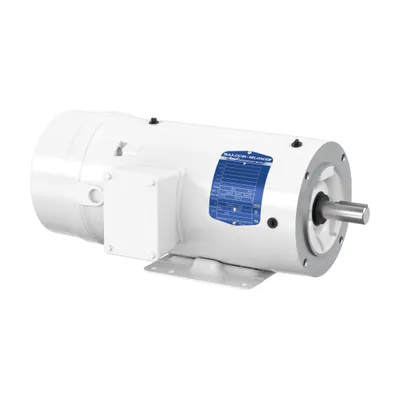

CEWDBM3546T

1HP,1770RPM,3PH,60HZ,143TC,3522M,TE

ABB

EBM4104TY

30HP,1760RPM,3PH,60HZ,286T,1056M,TE

ABB

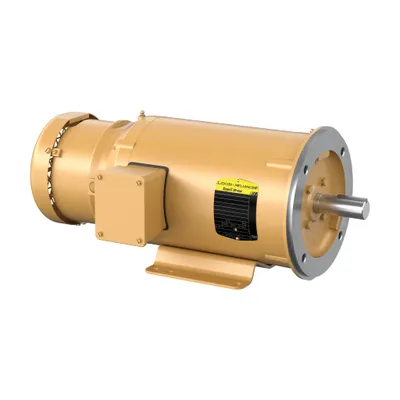

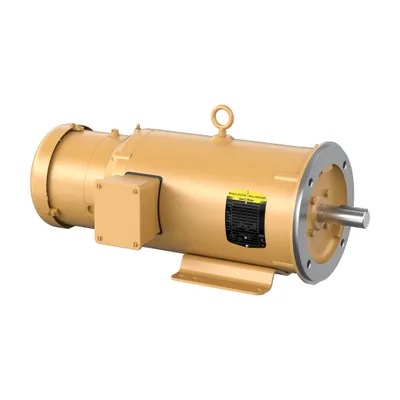

CEBM3615T-DI

5HP,1750RPM,3PH,60HZ,184TC,3642M,TE

ABB

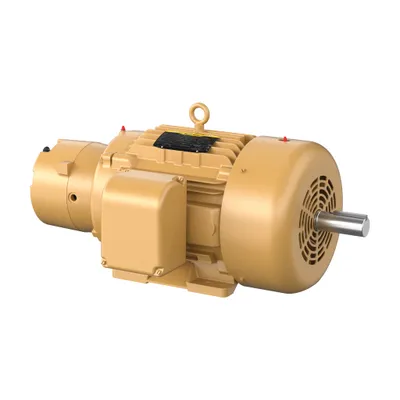

EBM4103TY

25HP,1775RPM,3PH,60HZ,284T,1054M,TE

ABB

VEBM3154T

1.5HP,1770RPM,3PH,60HZ,145TC,3524M

ABB

VEBM3116T

1HP,1770RPM,3PH,60HZ,143TC,3520M,OP

ABB

CEBM3615T

5HP,1750RPM,3PH,60HZ,184TC,3642M,TE

ABB

CEBM3611T

3HP,1760RPM,3PH,60HZ,182TC,3632M,TE

ABB

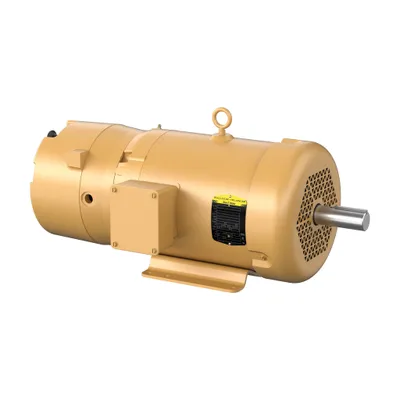

EBM3710TY

7.5HP,1770RPM,3PH,60HZ,213T,3736M,T

ABB

EBM3615TY

5HP,1750RPM,3PH,60HZ,184T,3642M,TEF

ABB

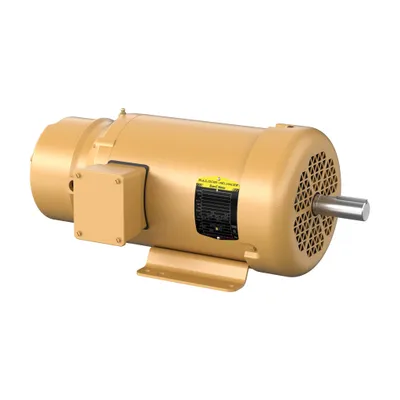

EBM3611TY

3HP,1760RPM,3PH,60HZ,182T,3632M,TEF

ABB

EBM3614TY

2HP,1175RPM,3PH,60HZ,184T,3644M,TEF

ABB

VEBM3218T

5HP,1750RPM,3PH,60HZ,184TC,3640M,OP

ABB

VEBM3248T

5HP,1750RPM,3PH,60HZ,184TC,3640M,OP

ABB

CEBM3546T

1HP,1770RPM,3PH,60HZ,143TC,3522M,TE

Compare Brake motor

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Motor Frame Size	Product Net Weight	Dimension Diagram
VEBM3558T-5	VEBM3558T-5	80 %	145TC	57 lb	35LYE060
CEBM3558T	CEBM3558T	77 %	145TC	52 lb	35LYE567
CEBM3554T	CEBM3554T	72 %	145TC	48 lb	35LYE567
VEBM3554T-5	VEBM3554T-5	73 %	145TC	52 lb	35LYE060
EBM3554TY	EBM3554TY	72 %	145T	48 lb	35LYA021
EBM3556TY	EBM3556TY	64 %	145T	48 lb	35LYA021
EBM3558TY	EBM3558TY	77 %	145T	52 lb	35LYA021
CEWDBM3558T	CEWDBM3558T	77 %	145TC	60 lb	35LYMM610
VEBM3611T-5	VEBM3611T-5	77 %	182TC	83 lb	36LYE049
CEWDBM3546T	CEWDBM3546T	66 %	143TC	51 lb	35LYMM890
EBM4104TY	EBM4104TY	80 %	286T	570 lb	10LYE507
CEBM3615T-DI	CEBM3615T-DI	78 %	184TC	123 lb	36LYQ899
EBM4103TY	EBM4103TY	81 %	284T	419 lb	10LYE491
VEBM3154T	VEBM3154T	72 %	145TC	44 lb	35LYQ109
VEBM3116T	VEBM3116T	69 %	143TC	44 lb	35LYE054
CEBM3615T	CEBM3615T	78 %	184TC	101 lb	36LYE047
CEBM3611T	CEBM3611T	75 %	182TC	81 lb	36LYE047
EBM3710TY	EBM3710TY	81 %	213T	149 lb	37LYA021
EBM3615TY	EBM3615TY	78 %	184T	101 lb	36LYA021
EBM3611TY	EBM3611TY	75 %	182T	77 lb	36LYA021
EBM3614TY	EBM3614TY	60 %	184T	104 lb	36LYA021
VEBM3218T	VEBM3218T	80 %	184TC	100 lb	36LYE035
VEBM3248T	VEBM3248T	80 %	184TC	99 lb	36LYE035
CEBM3546T	CEBM3546T	62 %	143TC	43 lb	35LYE567

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Insulation Class	F
Number of Phases	3-phase
Number of Speeds	Single Speed
