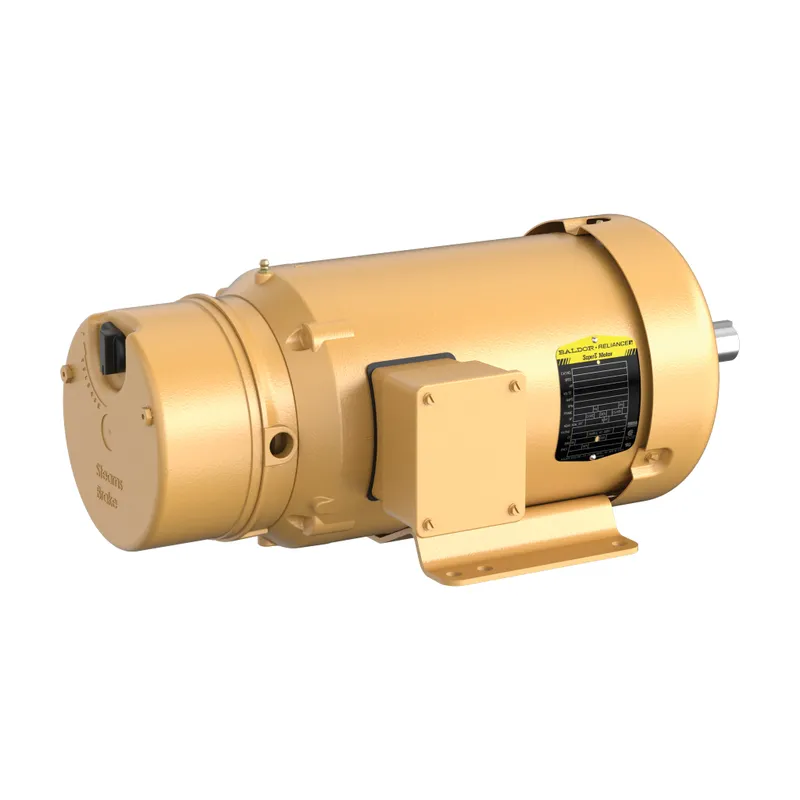

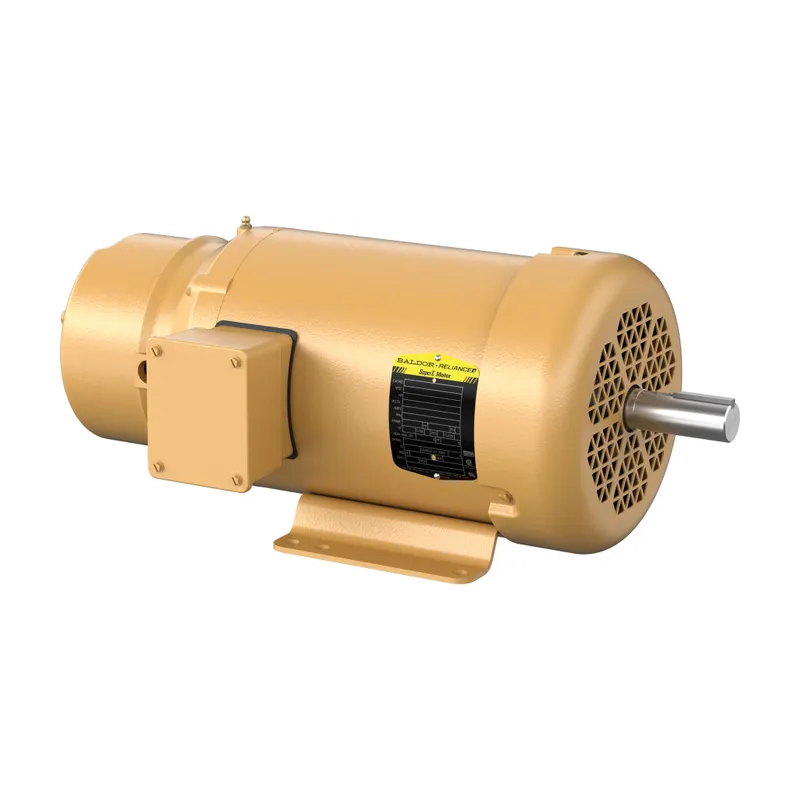

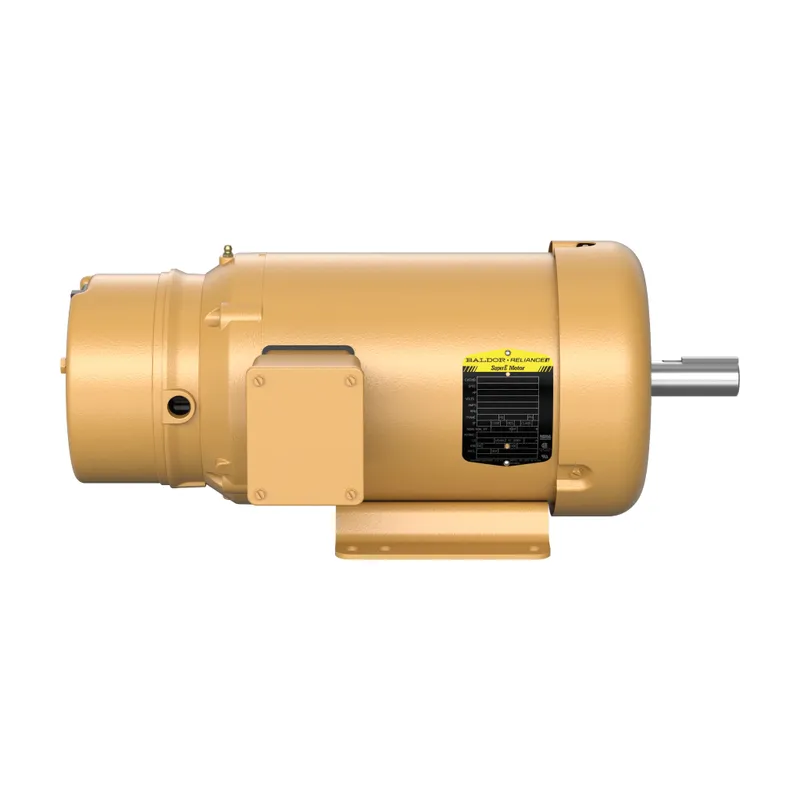

ABB EBM3615TY
5HP,1750RPM,3PH,60HZ,184T,3642M,TEF
- MPN
- EBM3615TY
- Category
- Brake motor
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB EBM3615TY?
Brake 5 Hp 230 V (EBM3615TY)
Specifications
Ordering
| Catalog Number | EBM3615TY |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 78 % |
| Rated Efficiency | 89.50 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 5 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 184T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | Yes |
Dimensions
| Product Net Height | 16.25 in |
| Product Net Weight | 101 lb |
| Product Net Width | 16.625 in |
| Dimension Diagram | 36LYA021 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA_PREMIUM, UR |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
