Home / ABB / Brake motor / ABB VEBM3116T

ABB

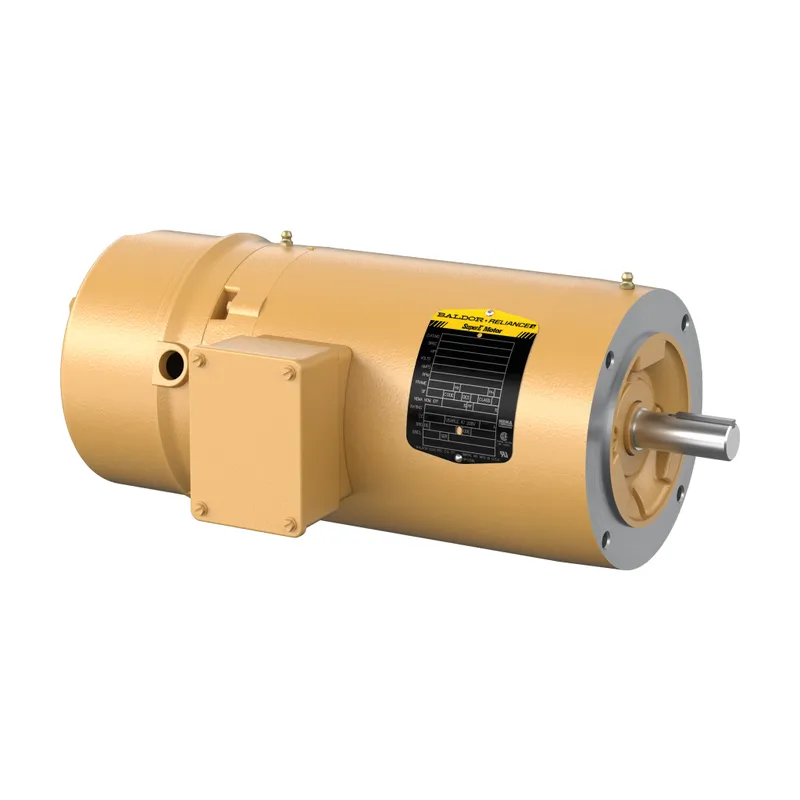

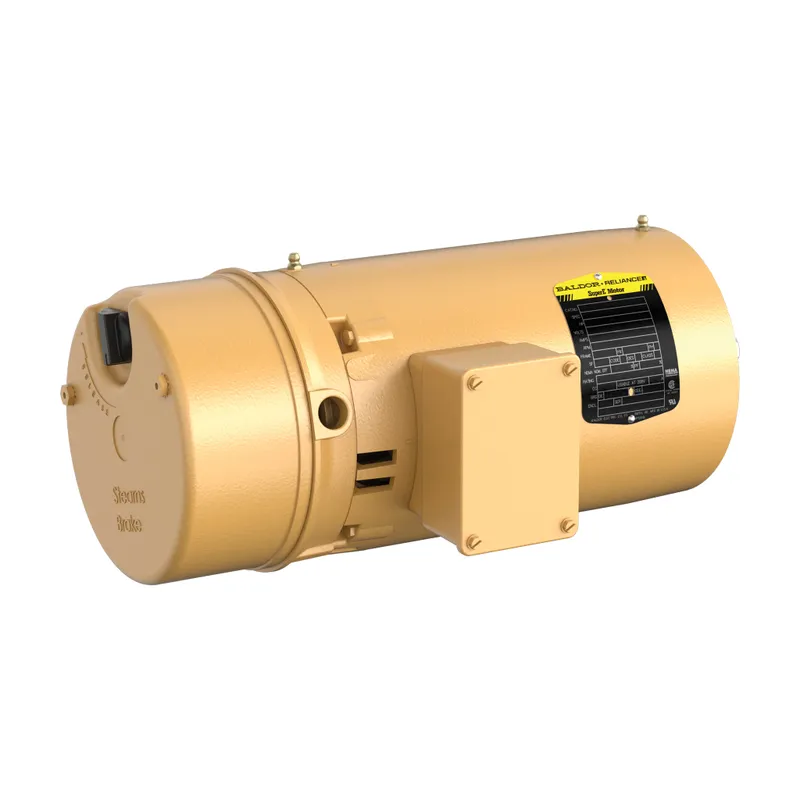

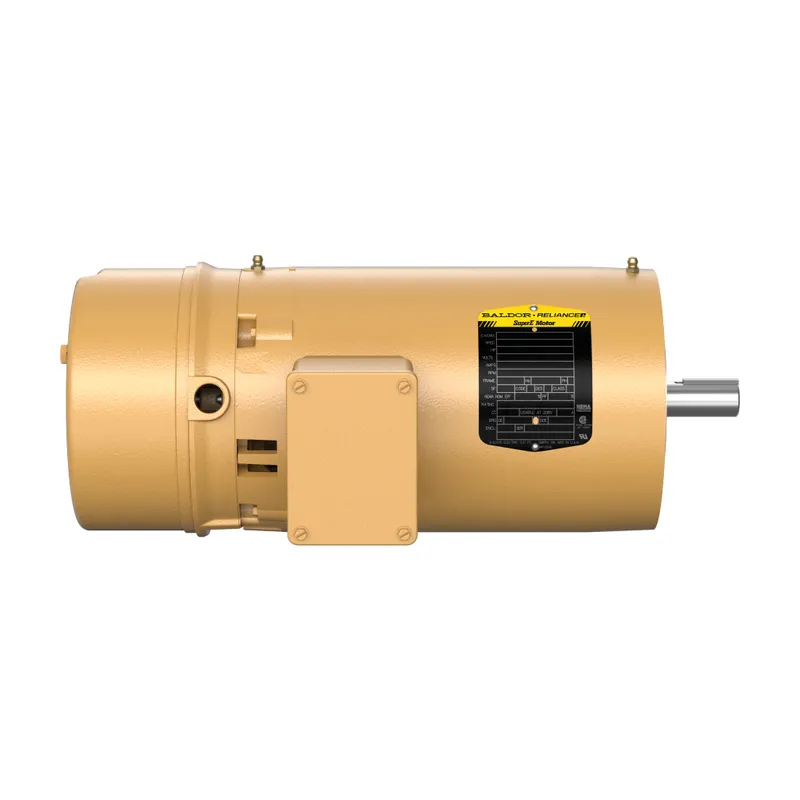

ABB VEBM3116T

1HP,1770RPM,3PH,60HZ,143TC,3520M,OP

MPN: VEBM3116T
Category: Brake motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VEBM3116T?

Brake 1 Hp 230 V (VEBM3116T)

Specifications

Ordering

Catalog Number	VEBM3116T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	69 %
Rated Efficiency	85.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	OPEN
Frame Material	Steel
Motor Frame Size	143TC
Motor Base Type	Footless
Mounting Position	F1
Brake Present	Yes

Dimensions

Product Net Height	15.125 in
Product Net Weight	44 lb
Product Net Width	16.125 in
Dimension Diagram	35LYE054

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor

VEBM3116T: frequently asked questions

When can VEBM3116T be shipped?

VEBM3116T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VEBM3116T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VEBM3116T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VEBM3116T, subject to availability and destination.
