Home / ABB / EC Titanium™ (General Purpose SP5+) / ABB ECS100A4H3EF4
ABB

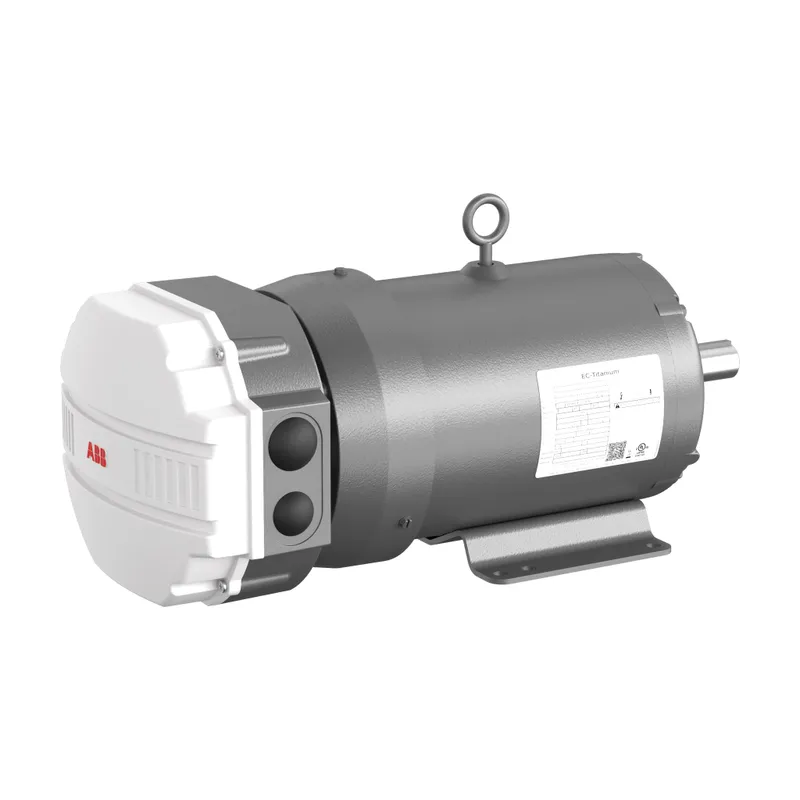

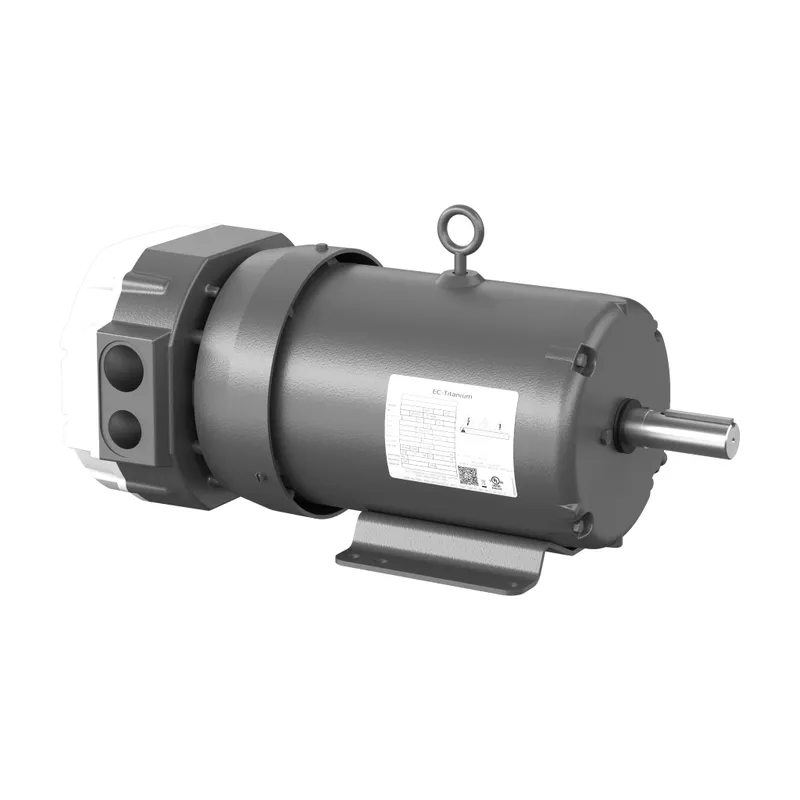

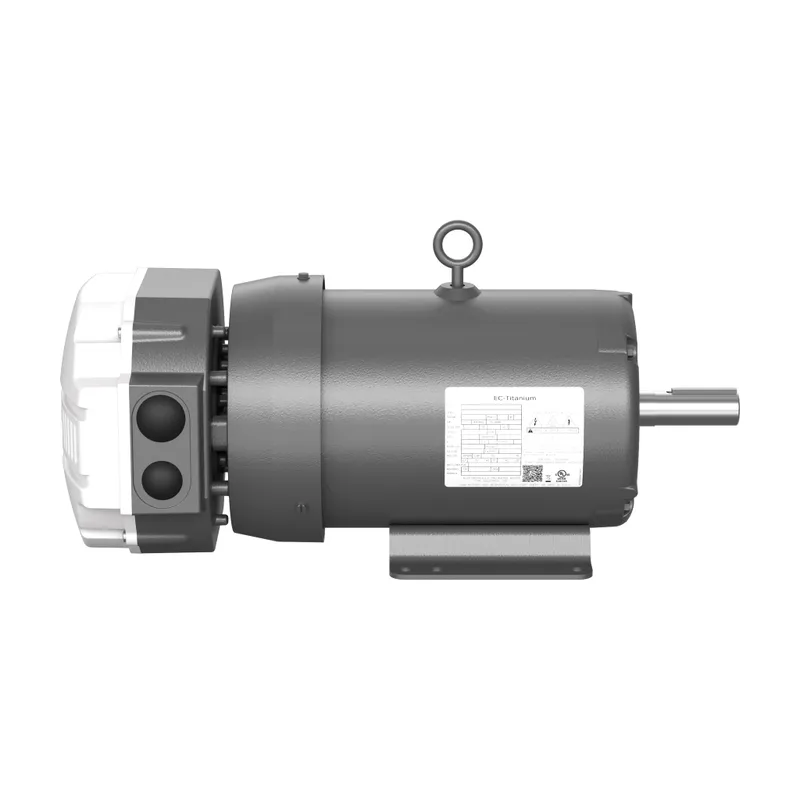

ABB ECS100A4H3EF4

3HP,1800RPM,3PH,60HZ,182T,TEFC,AXIA

MPN
ECS100A4H3EF4
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ECS100A4H3EF4?

ECM IMD 3 Hp 460 V (ECS100A4H3EF4)

Specifications

Ordering

Catalog NumberECS100A4H3EF4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelIE5
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Rated Efficiency92.80 %
Type of DutyContinuous
Starting of MotorINVERTER SPECIAL
Synchronous Speed (vsyn)1800 r/min
Output Power3 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size182T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height16.25 in
Product Net Weight66 lb
Product Net Width16.625 in
Dimension Diagram36LYT259

Certificates and Declarations

Certification AgencyBLUETOOTH, CULUS, WEEE
ETIM 7EC001851 - Electric motor

ECS100A4H3EF4: frequently asked questions

When can ECS100A4H3EF4 be shipped?

ECS100A4H3EF4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECS100A4H3EF4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECS100A4H3EF4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECS100A4H3EF4, subject to availability and destination.
