SIRIUS 3RV2 motor starter protectors Parts
Browse Subcategories
Compare SIRIUS 3RV2 motor starter protectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | continuous current rated value | Net Weight | operational current rated value | operational current — at AC-3 at 400 V rated value | operational current — at AC-3e at 400 V rated value |
|---|---|---|---|---|---|
| 3RV2811-0HD10 | 0.8 A | 0.476 kg | 0.8 A | 0.8 A | 0.8 A |
| 3RV2811-0GD10 | 0.63 A | 458.08 g | 0.63 A | 0.63 A | 0.63 A |
| 3RV2811-0FD10 | 0.5 A | 0.412 kg | 0.5 A | 0.5 A | 0.5 A |
| 3RV2811-0ED10 | 0.4 A | 0.413 kg | 0.4 A | 0.4 A | 0.4 A |
| 3RV2811-0DD10 | 0.32 A | 400.08 g | 0.32 A | 0.32 A | 0.32 A |
| 3RV2311-0AC20 | 0.16 A | 0.266 kg | 0.16 A | 0.16 A | 0.16 A |

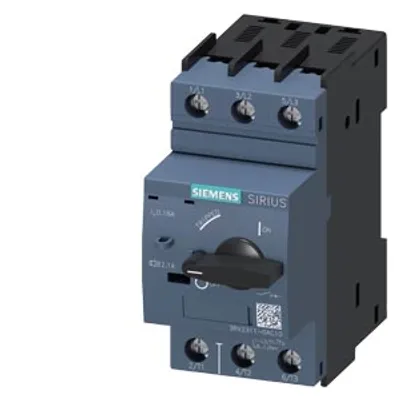

| 3RV2311-0AC10 | 0.16 A | 0.247 kg | 0.16 A | 0.16 A | 0.16 A |
| 3RV2142-4YA10 | 93 A | 2.275 kg | 93 A | 93 A | 93 A |
| 3RV2142-4RA10 | 84 A | 2.273 kg | 84 A | 84 A | 84 A |

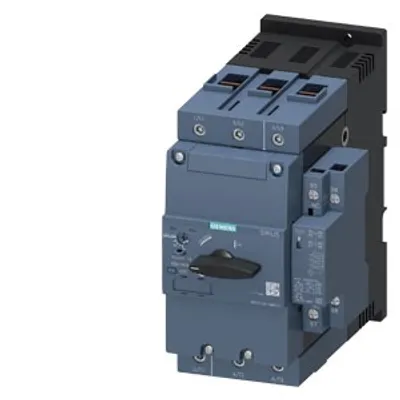

| 3RV2142-4MA10 | 100 A | 2.259 kg | 100 A | 100 A | 100 A |
| 3RV2142-4KA10 | 75 A | 2.235 kg | 75 A | 75 A | 75 A |
| 3RV2142-4JA10 | 63 A | 2.227 kg | 63 A | 63 A | 63 A |
| 3RV2011-0JA20 | 1 A | 334.6 g | 1 A | 1 A | 1 A |
| 3RV2011-0HA25-Z W96 | 0.8 A | 288.6 g | 0.8 A | 0.8 A | 0.8 A |
| 3RV2011-0HA25 | 0.8 A | 288.6 g | 0.8 A | 0.8 A | 0.8 A |
| 3RV2011-0HA20-Z X95 | 0.8 A | 271.6 g | 0.8 A | 0.8 A | 0.8 A |
| 3RV2021-4CA15 | 22 A | 353.18 g | 22 A | 22 A | 22 A |
| 3RV2021-4CA10-0DA0 | 22 A | 337.6 g | 22 A | — | — |
| 3RV2021-4CA10-0BA0 | 22 A | 337.6 g | 22 A | — | — |
| 3RV2021-4AA25-Z W96 | 16 A | 405.6 g | 16 A | 16 A | 16 A |
| 3RV2021-4AA25 | 16 A | 405.6 g | 16 A | 16 A | 16 A |
| 3RV2021-4AA20-0BA0 | 16 A | 0.393 kg | 16 A | 16 A | — |
| 3RV2021-4AA20-Z X95 | 16 A | 402.6 g | 16 A | 16 A | 16 A |

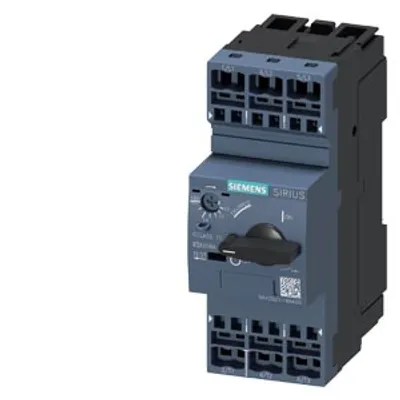

| 3RV2021-4AA20-Z W96 | 16 A | 402.6 g | 16 A | 16 A | 16 A |
Common to all listed parts
| Product equipment of circuit breaker for motor protection complete unit with protection device | Yes |
| product function disconnector functionality | Yes |
| product extension auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity during operation | 10 ... 95 % |
| number of poles for main current circuit | 3 |
