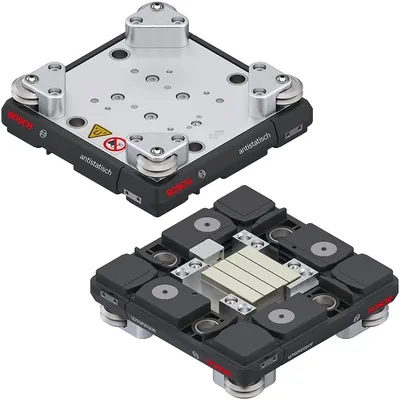

Workpiece pallet WT 2/LS Parts
Compare Workpiece pallet WT 2/LS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimension h [mm] | Dimension [b] [mm] | Force F [N] | Weight workpiece pallet [mWT] [kg] | Weight [kg] |
|---|---|---|---|---|---|
| 3842562360 | 144.45 | 568 | 83.0 | 13.03 | 9.73 |
| 3842562359 | 144.45 | 408 | 73.0 | 8.6 | 8.2 |
| 3842562358 | 144.45 | 328 | 73.0 | 7.87 | 7.39 |
| 3842562357 | 144.45 | 248 | 49.0 | 6.17 | 5.94 |
| 3842562356 | 154.45 | 408 | 56.0 | 6.53 | 6.89 |
| 3842562355 | 154.45 | 328 | 56.0 | 6.17 | 5.94 |
| 3842562354 | 154.45 | 248 | 42.0 | 5.14 | 4.83 |
| 3842562353 | 162 | 168 | 28.0 | 3.44 | 3.33 |
| 3842562352 | 114.45 | 328 | 46.0 | 4.98 | 4.81 |
| 3842562351 | 122 | 248 | 46.0 | 3.89 | 3.33 |
| 3842562350 | 122 | 168 | 31.0 | 3.01 | 2.87 |
| 3842562349 | 122 | 88 | 15.0 | 2.1 | 1.97 |
| 3842562348 | 88.5 | 248 | 23.0 | 2.58 | 2.46 |
| 3842562347 | 88.5 | 168 | 12.0 | 1.93 | 1.84 |
| 3842562346 | 88.5 | 88 | 12.0 | 1.64 | 1.51 |
Common to all listed parts
| Delivery information | Assembled, individually packed with magnetic cover |
| Process force Fx [N] | 0 |
| Process force Fy [N] | 500 |
| Process force Fz | Fz = 100 N + Maximale Zuladung - Aktuelle Zuladung |
