Bosch Rexroth 3842562358

WORKPIECE PALLET WT 2/LS 400X400

MPN: 3842562358
Category: Workpiece pallet WT 2/LS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842562358?

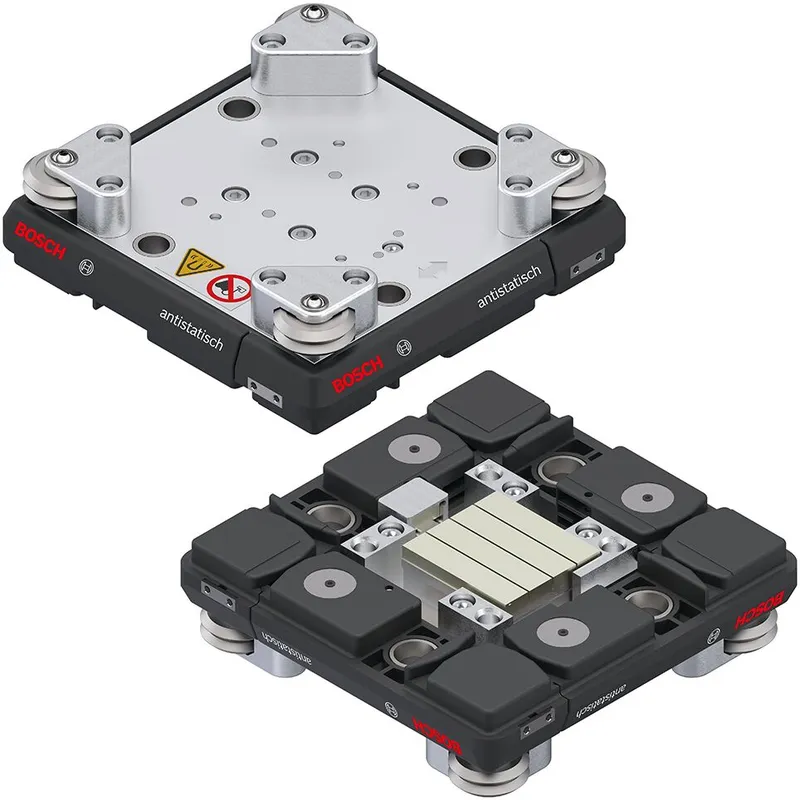

Workpiece pallet WT 2/LS 400x400

Suitable for belt, toothed belt and flat top chain

Plastic frame modules with PA wear pad and aluminum carrying plate

Suitable for use in an EPA

Integrated roller carrier with guide rollers

Integrated feed magnet with magnetic protection plate

Integrated measuring magnet

Magnet stop protection

Specifications

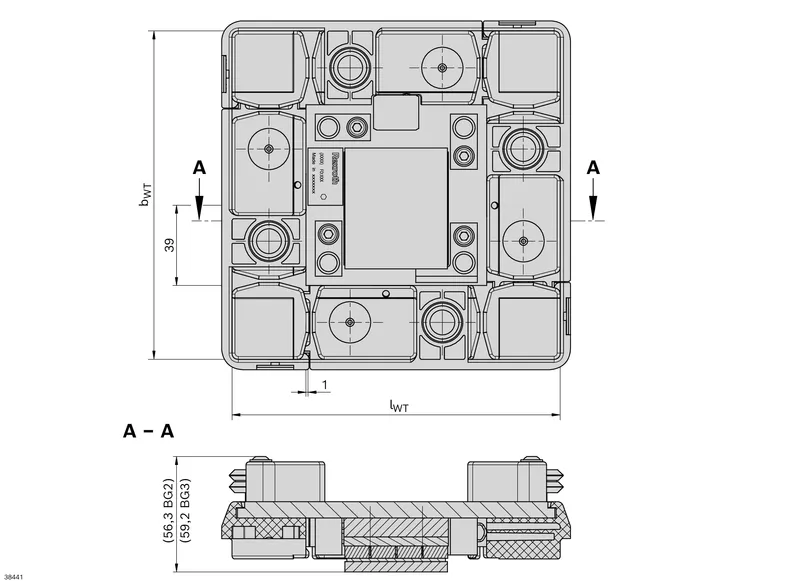

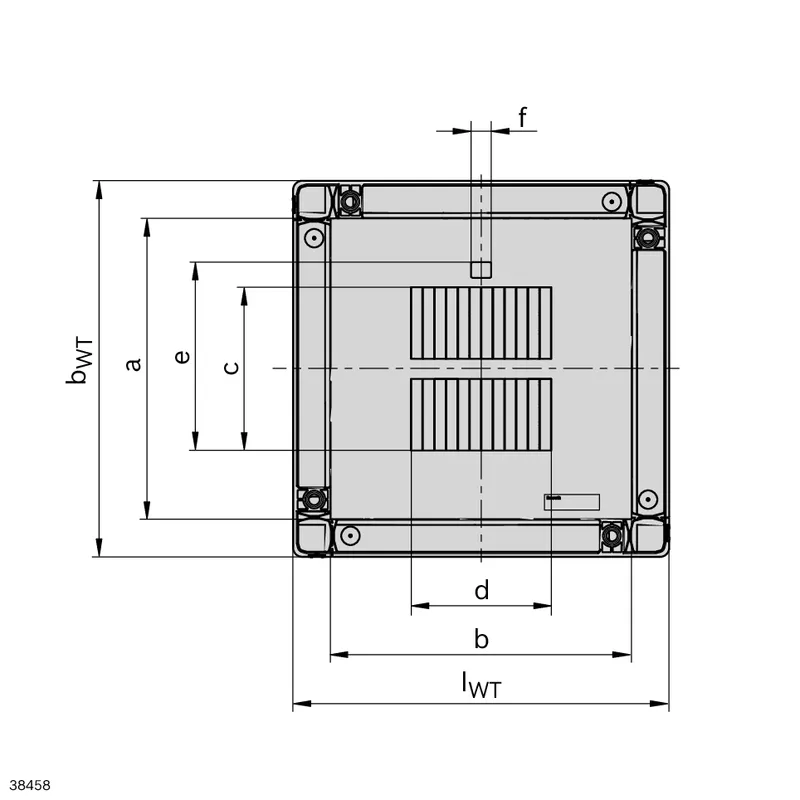

Dimension h [mm]	144.45
Dimension [a] [mm]	9.3
Dimension [b] [mm]	328
Length [l] [mm]	153
Force F [N]	73.0
Dimension b [mm]	29.01
Workpiece pallet length [lWT] [mm]	400
Weight workpiece pallet [mWT] [kg]	7.87
Magnetic rows	2
Weight (transported material) [kg]	35
Scope of delivery	Carrying plates; Connection elements; Feed magnet with magnetic protection plate; Frame modules; Magnet stop protection; Measuring magnet; Positioning bushings; Roller carrier with guide rollers
Delivery information	Assembled, individually packed with magnetic cover
Notice	Nominal force refers to room temperature.; The process force Fz can be increased by using the maximum possible load as a process force.
Process force Fx [N]	0
Process force Fy [N]	500
Process force Fz	Fz = 100 N + Maximale Zuladung - Aktuelle Zuladung
Workpiece pallet width [bWT] [mm]	400
Weight [kg]	7.39
