Bosch Rexroth 3842562349
WORKPIECE PALLET WT 2/LS 240X160
- MPN
- 3842562349
- Category
- Workpiece pallet WT 2/LS
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842562349?

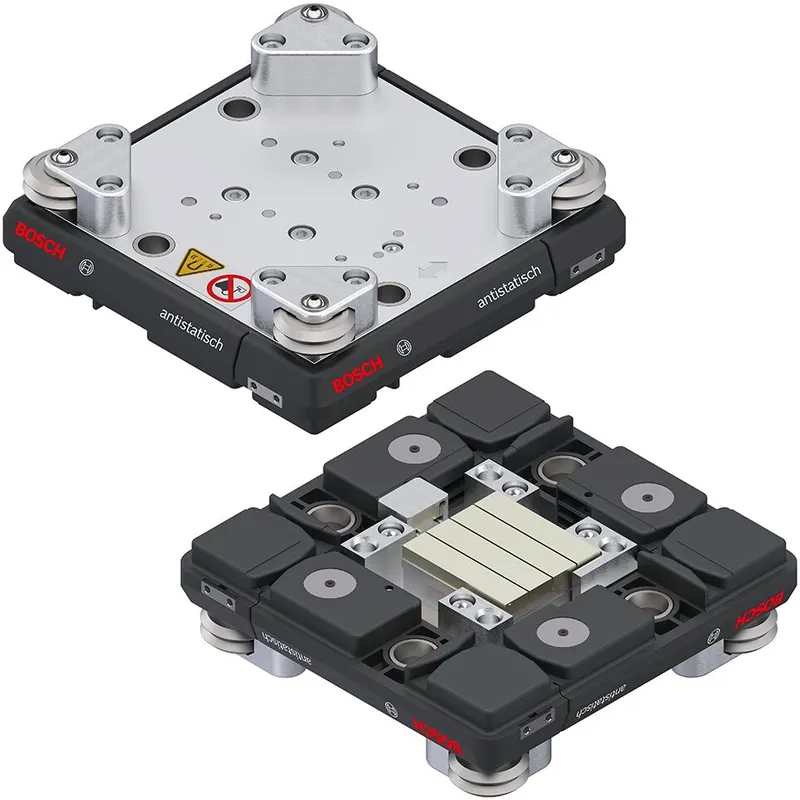

Workpiece pallet WT 2/LS 240x160
Suitable for belt, toothed belt and flat top chain
Plastic frame modules with PA wear pad and aluminum carrying plate
Suitable for use in an EPA
Integrated roller carrier with guide rollers
Integrated feed magnet with magnetic protection plate
Integrated measuring magnet
Magnet stop protection

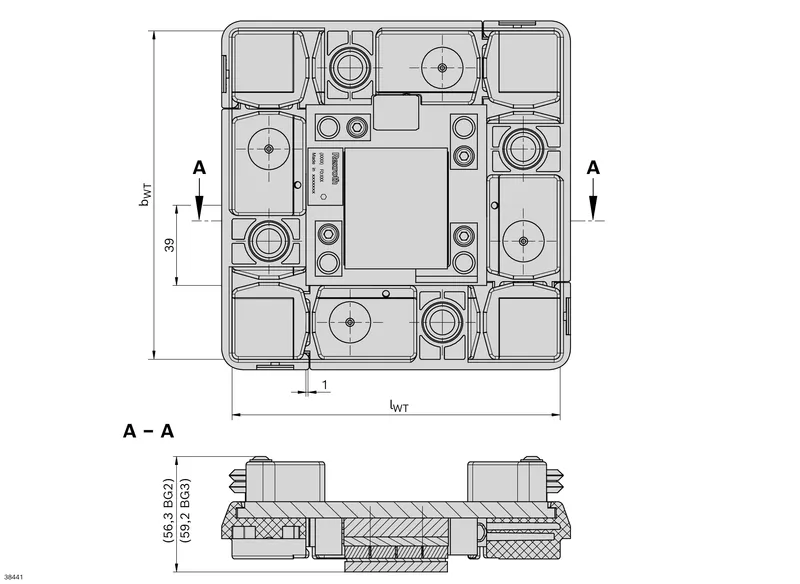

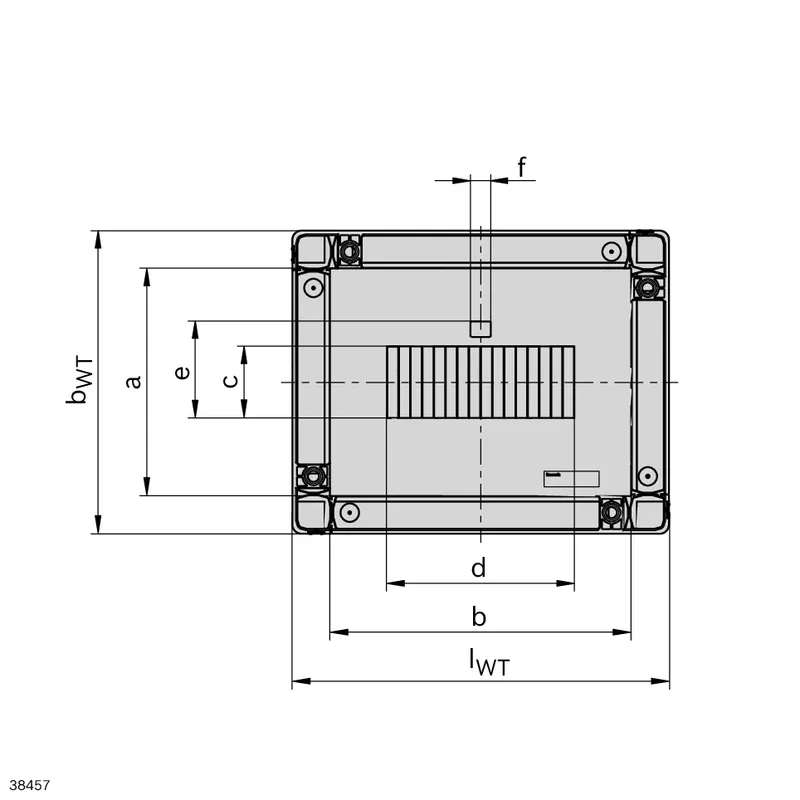

Specifications
Specifications
| Dimension h [mm] | 122 |
| Dimension [a] [mm] | 1.1 |
| Dimension [b] [mm] | 88 |
| Length [l] [mm] | 51 |
| Dimension [c] [mm] | 33 |
| Dimension [d] [mm] | 47 |
| Force F [N] | 15.0 |
| Dimension b [mm] | 23.1 |
| Workpiece pallet length [lWT] [mm] | 160 |
| Weight workpiece pallet [mWT] [kg] | 2.1 |
| Magnetic rows | 1 |
| Number [kkØ6] | 4x |
| Number [M5] | 4x |
| Weight (transported material) [kg] | 10 |
| Scope of delivery | Carrying plates; Connection elements; Feed magnet with magnetic protection plate; Frame modules; Magnet stop protection; Measuring magnet; Positioning bushings; Roller carrier with guide rollers |
| Delivery information | Assembled, individually packed with magnetic cover |
| Notice | Nominal force refers to room temperature.; The process force Fz can be increased by using the maximum possible load as a process force. |
| Process force Fx [N] | 0 |
| Process force Fy [N] | 500 |
| Process force Fz | Fz = 100 N + Maximale Zuladung - Aktuelle Zuladung |
| Workpiece pallet width [bWT] [mm] | 240 |
| Weight [kg] | 1.97 |
