Bosch Rexroth

Bosch Rexroth 3842998494

LIFT POSITIONING UNIT HP1 HUB 15MM MITTELST

MPN: 3842998494
Category: Positioning TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998494?

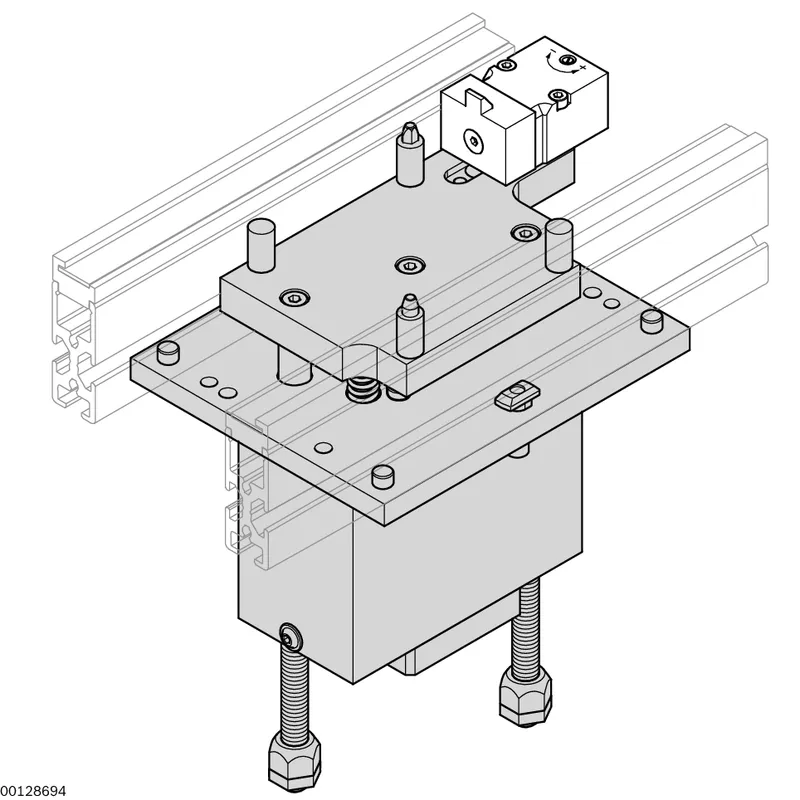

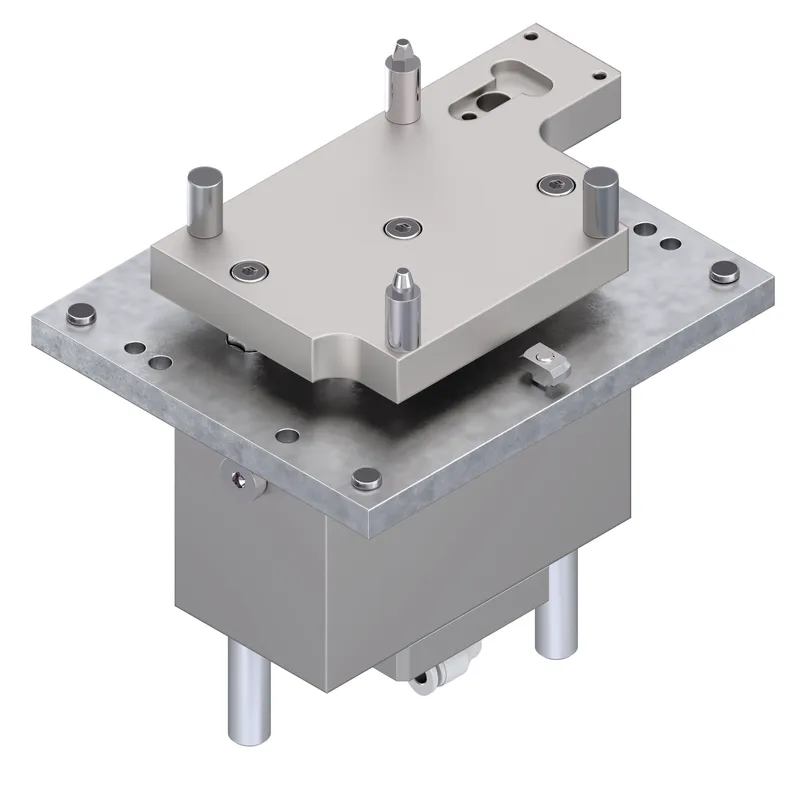

Lift positioning unit HP 1/P h=15mm

Can be used with workpiece pallets WT 1/P

Positioning via the HP 1/P positioning pins and the positioning bushings on the WT 1/P workpiece pallet

Permissible vertical process force up to 400 N incl. WT 1/P. The positioning plate of the HP 1/P supports the WT 1/P on its carrying plate during this process.

Repeat accuracy in X- and Y-direction: ± 0.025 mm

Fixed stop for pre-positioning the arriving workpiece pallet. Can be replaced with a damper DA 1/B if necessary.

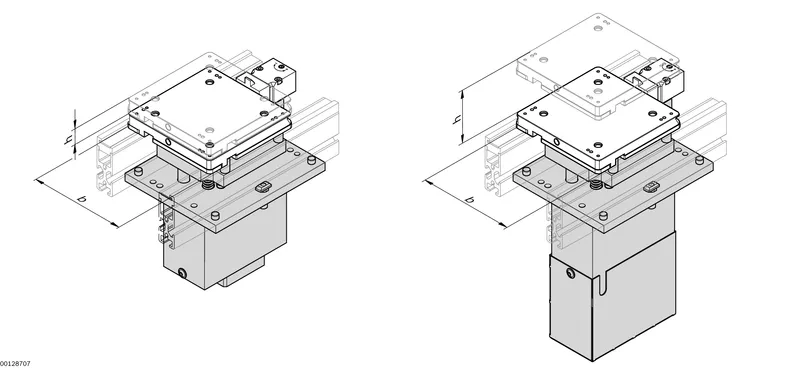

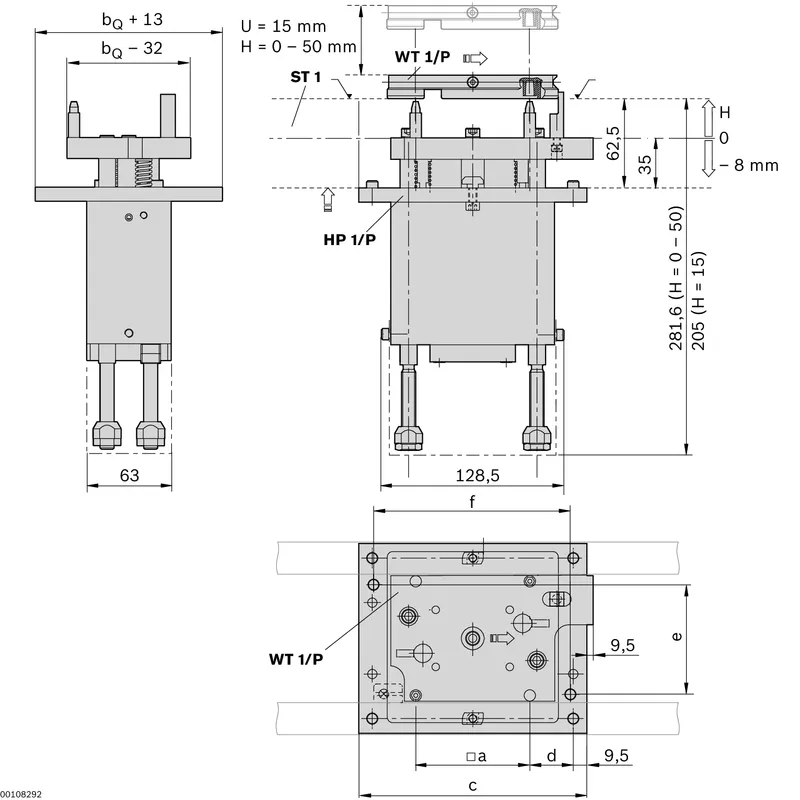

With the HP 1/P in the version with variable lift, the lifting height above conveying level is max. 50 mm. The lifting height is infinitely variable.

The version with a fixed lifting height 15 mm above the conveying level has an extremely low installation height. It is therefore particularly suited for use on manual workstations without restricting the legroom.

The HP 1/P has three positions:- Bottom position: WT on the section are let through.- Center position: WT are stopped on the section (by integrated fixed stop or optional damper DA 1/B). The center position can be approached from the bottom and the top position.

Specifications

ESD	Yes
Dry room [%rF]	<1

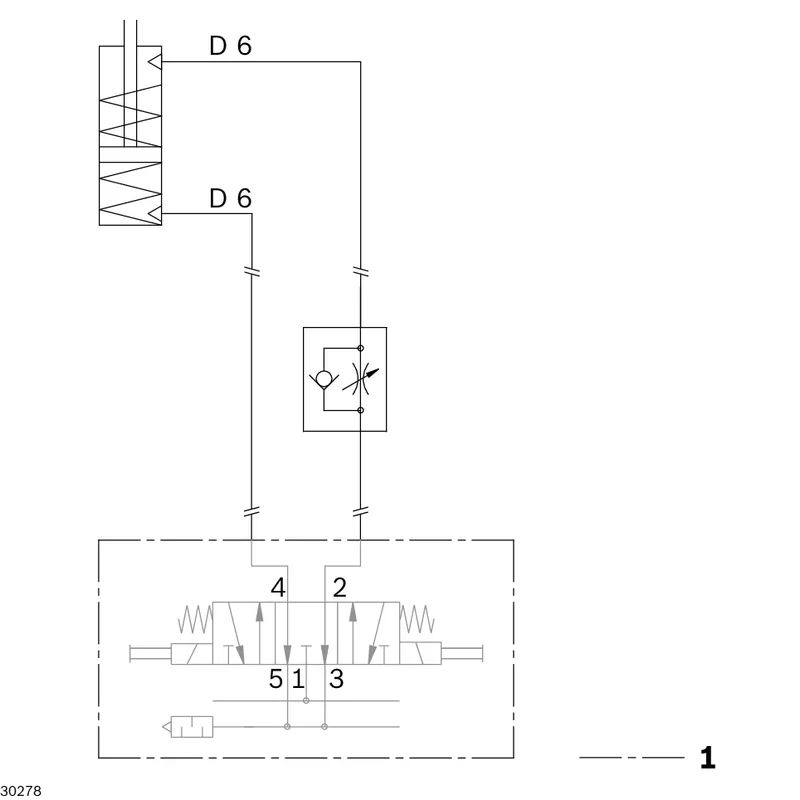

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Maximum load version [Fmax] [N]	3200
Repetition accuracy	±0,025
Permissible vertical process force [N]	400
Lift of WT over conveyor medium [h0]	15
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Including all fastening elements; Pneumatic screw fitting; Switch bracket SH 1/M-A for querying the position of the HP 1/P; Switch bracket SH 1/S for querying the workpiece pallet position in the HP 1/P
Delivery information	Fully assembled
Preferred values [mm]	120; 160; 80
Clean room classification	ISO class 7
Recommended accessories	Damper DA 1; Sensor (Ø 6.5 mm; S<sub>N </sub>= 4 mm) for querying the workpiece pallet position in the HP 1/P and for querying the upper position of the HP 1/P; VE 1 stop gate for pre-separation
Weight [kg]	0
