Compare Curves STS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Deflection angle [α] [°] | Dimension A [mm] [mm] | Actual chain length [m] | Effective sliding rail length [m] | Weight [kg] |
|---|

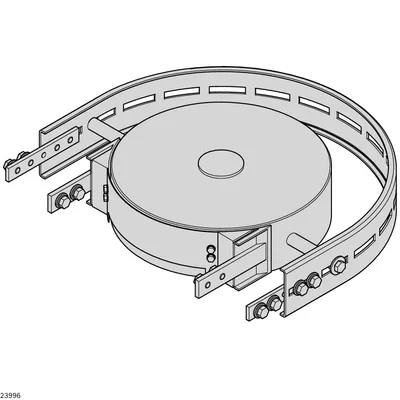

| 3842547118 | 180 | 210.5 | 2x 0,72 | 2x 0,91 | 5 |
| 3842547113 | 90 | 185.5 | 2x 0,44 | 2x 0,53 | 4.4 |
| 3842547112 | 45 | 185.5 | 2x 0,32 | 2x 0,38 | 4.3 |
| 3842547111 | 30 | 185.5 | 2x 0,28 | 2x 0,34 | 4.2 |
| 3842547114 | 180 | 185.5 | 2x 0,68 | 2x 0,82 | 4.7 |
| 3842547121 | 90 | 240.5 | 2x 0,48 | 2x 0,63 | 4.7 |
| 3842547120 | 45 | 240.5 | 2x 0,34 | 2x 0,44 | 4.5 |
| 3842547119 | 30 | 240.5 | 2x 0,29 | 2x 0,38 | 4.4 |
| 3842547122 | 180 | 240.5 | 2x 0,77 | 2x 1,01 | 5.2 |
Common to all listed parts
| Scope of delivery | Incl. fastening material for mounting to STS section profiles |
| Delivery information | Fully assembled |
