Curves STS Parts
Compare Curves STS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Deflection angle [α] [°] | Dimension A [mm] [mm] | Actual chain length [m] | Effective sliding rail length [m] | Weight [kg] |
|---|---|---|---|---|---|
| 3842547153 | 30 | 453.9 | 2x 0,46 | 8x 0,46 | 3.23 |
| 3842547152 | 15 | 334.9 | 2x 0,33 | 8x 0,33 | 2.85 |
| 3842547129 | 90 | 720 | 2x 0,98 | 5x 0,98 | 7.18 |
| 3842547128 | 45 | 609.1 | 2x 0,59 | 5x 0,59 | 4.24 |

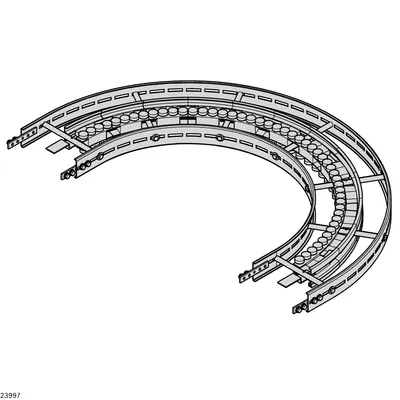

| 3842547127 | 30 | 496.6 | 2x 0,46 | 5x 0,46 | 3.54 |
| 3842547130 | 180 | 1240 | 2x 1,77 | 5x 1,77 | 12.66 |
| 3842547147 | 5 | 246.2 | 2x 0,24 | 8x 0,24 | 2.36 |
| 3842547150 | 45 | 548.7 | 2x 0,59 | 8x 0,59 | 3.36 |
| 3842547149 | 30 | 453.9 | 2x 0,46 | 8x 0,46 | 2.98 |

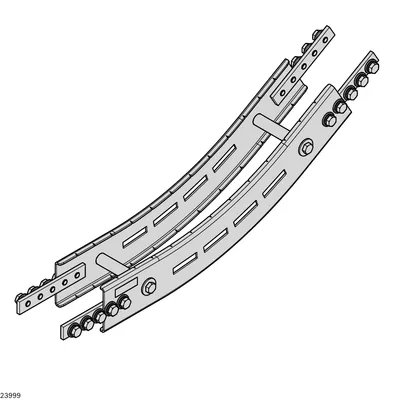

| 3842547148 | 15 | 334.9 | 2x 0,33 | 8x 0,33 | 2.6 |
| 3842547125 | 90 | 680 | 2x 0,98 | 5x 0,98 | 6.64 |
| 3842547124 | 45 | 580.8 | 2x 0,59 | 5x 0,59 | 3.98 |
| 3842547123 | 30 | 476.6 | 2x 0,46 | 5x 0,46 | 3.3 |
| 3842547126 | 180 | 1160 | 2x 1,77 | 5x 1,77 | 11.8 |
| 3842547143 | 5 | 246.2 | 2x 0,24 | 4x 0,24 | 1.64 |
| 3842547146 | 45 | 548.7 | 2x 0,59 | 4x 0,59 | 2.64 |
| 3842547145 | 30 | 453.9 | 2x 0,46 | 4x 0,46 | 2.26 |
| 3842547144 | 15 | 334.9 | 2x 0,33 | 4x 0,33 | 1.88 |

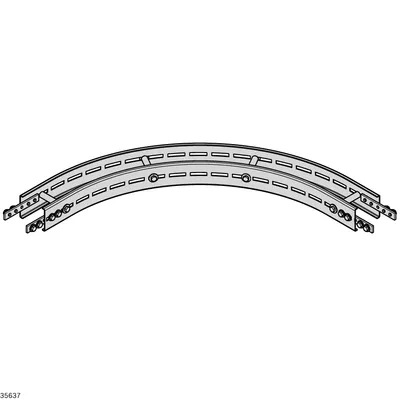

| 3842557061 | 90 | 860 | 2x 1,3 | 4x 1,3 | 4.56 |
| 3842557060 | 45 | 378.2 | 2x 0,75 | 4x 0,75 | 2.57 |
| 3842557059 | 30 | 255.7 | 2x 0,56 | 4x 0,56 | 2.05 |

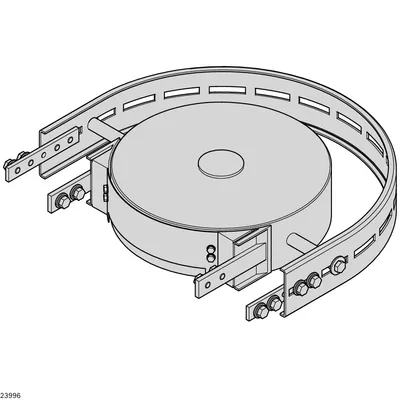

| 3842547117 | 90 | 210.5 | 2x 0,46 | 2x 0,58 | 4.6 |
| 3842547116 | 45 | 210.5 | 2x 0,33 | 2x 0,41 | 4.4 |
| 3842547115 | 30 | 210.5 | 2x 0,28 | 2x 0,35 | 4.3 |
Common to all listed parts
| Delivery information | Fully assembled |
