Bosch Rexroth 3842547120

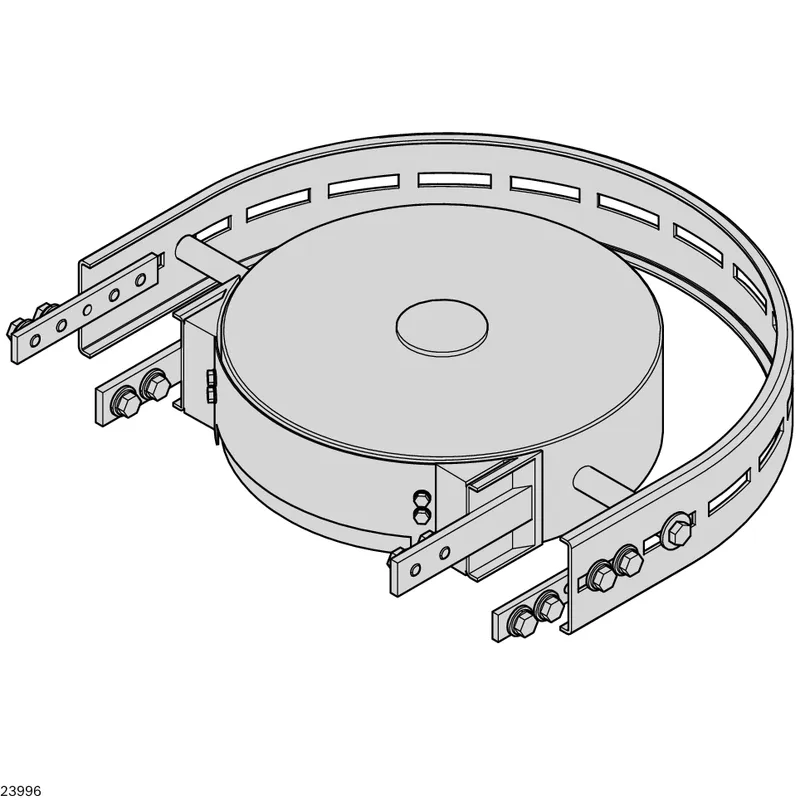

CAM WHEEL 120+ STS 45°

MPN: 3842547120
Category: Curves STS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547120?

Curve wheel STS VFplus 120 45°

Easy-to-clean design

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Surfaces in contact with chain made of FDA-compliant materials

No interfering contours above chain plate height

Can be used horizontally and vertically (for wedge conveyors)

Specifications

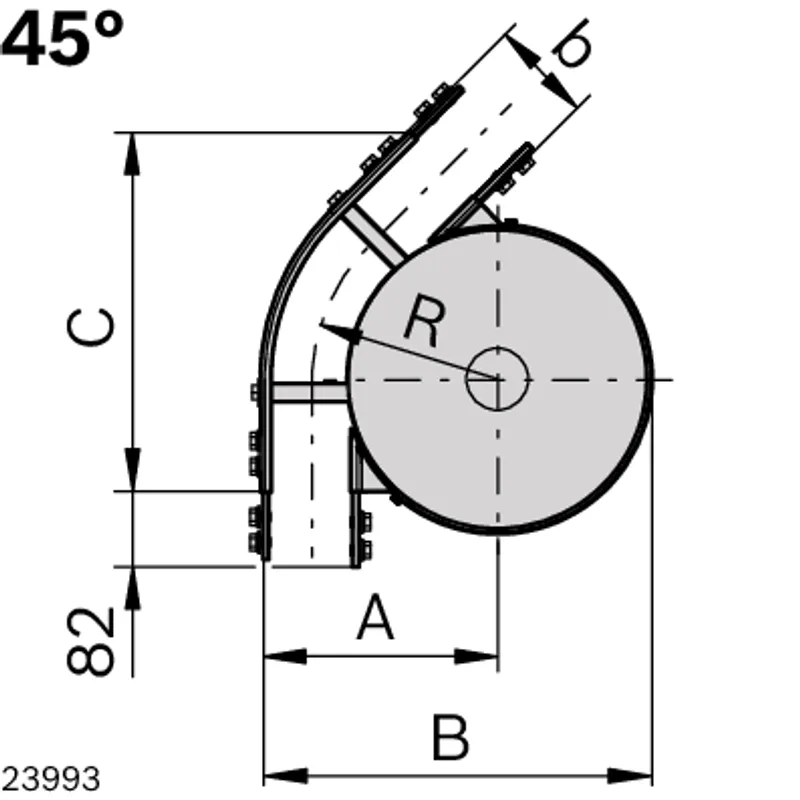

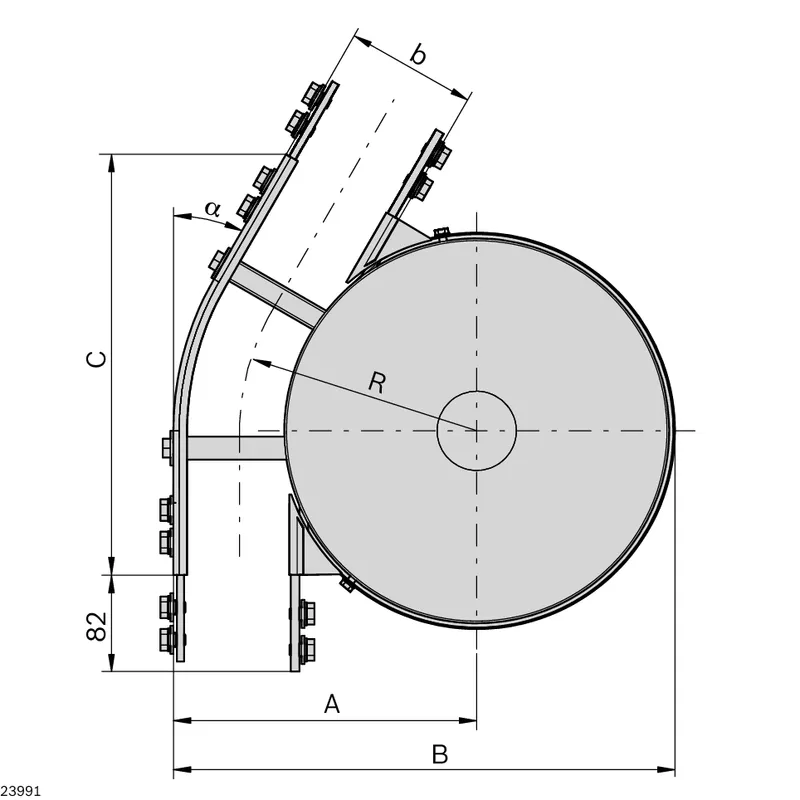

Deflection angle [α] [°]	45
Dimension A [mm] [mm]	240.5
Size [b] [mm]	120
Dimension b [mm]	377.5
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain wheel: PA, white; Housing: Non-rusting steel 1.4301
Actual chain length [m]	2x 0,34
Effective sliding rail length [m]	2x 0,44
Weight [kg]	4.5
