Bosch Rexroth

Bosch Rexroth 3842547125

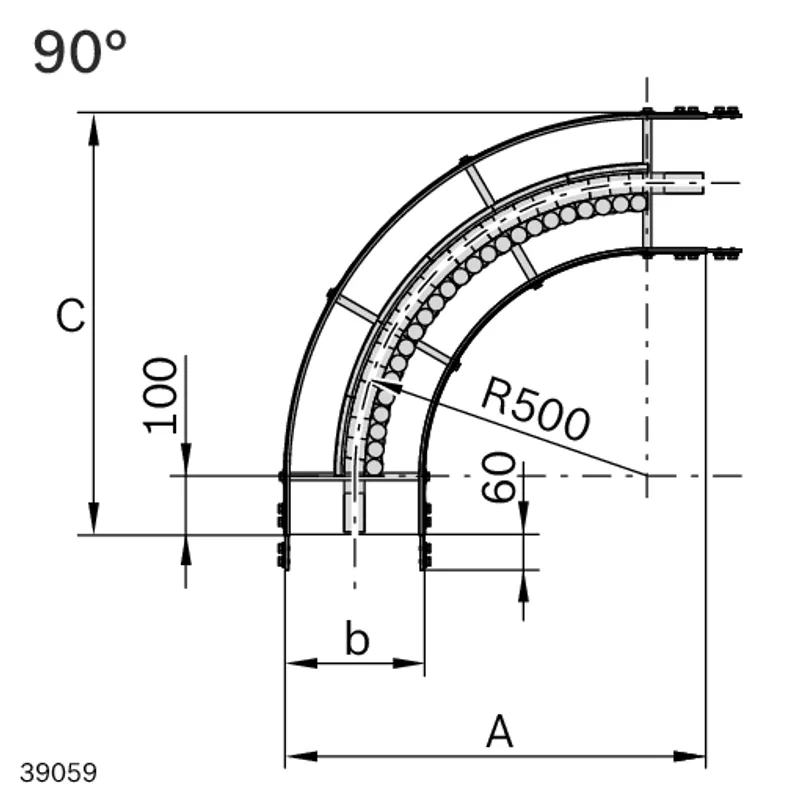

CURVE 160+ HOR STS 90°R500

MPN: 3842547125
Category: Curves STS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547125?

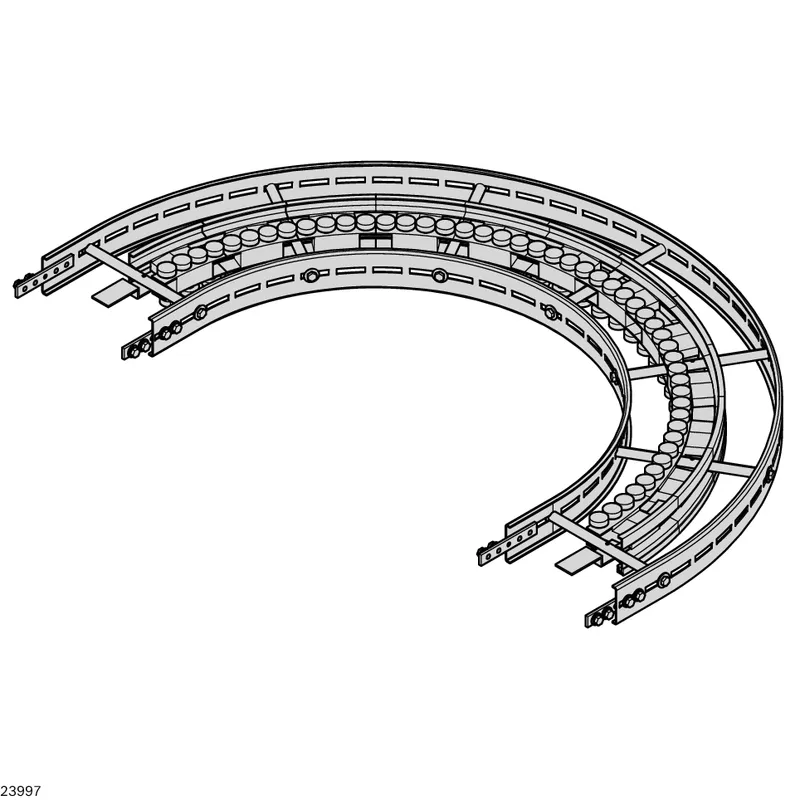

Roller curve horizontal STS VFplus 160 90°

Patented roller elements for low-friction, quieter changes in chain direction

Easy-to-clean design

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Surfaces in contact with chain made of FDA-compliant materials

Specifications

Deflection angle [α] [°]	90
Dimension A [mm] [mm]	680
Size [b] [mm]	160
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Connector: Non-rusting steel 1.4301; Profile: Non-rusting steel 1.4301; Roller carrier: PA 66; Rollers: PA
Actual chain length [m]	2x 0,98
Effective sliding rail length [m]	5x 0,98
Required accessories	Slide rail: Length calculation
Weight [kg]	6.64
