Drilling jigs Parts

Showing 1–6 of 6 parts

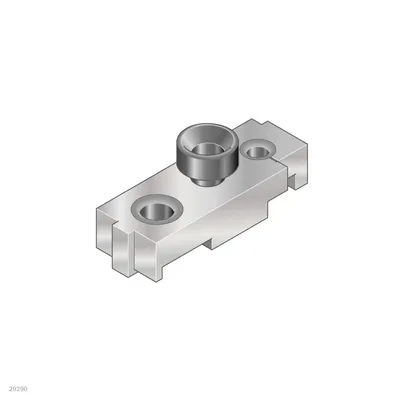

Bosch Rexroth 3842528577 – DRILLING AND BORING JIG N8-D11/7,8
Bosch Rexroth
3842528577

DRILLING AND BORING JIG N8-D11/7,8

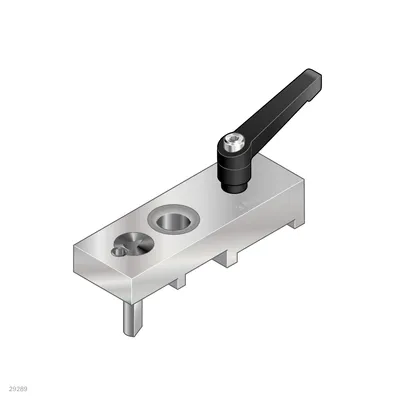

Bosch Rexroth 3842516729 – DRILLING AND BORING JIG N8 D11
Bosch Rexroth
3842516729

DRILLING AND BORING JIG N8 D11

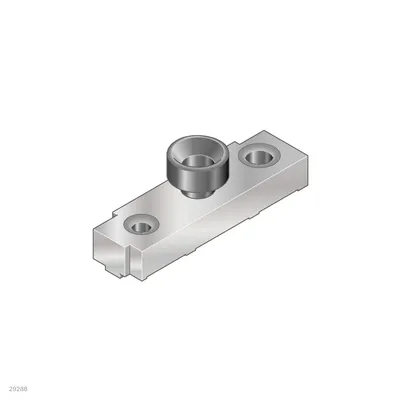

Bosch Rexroth 3842537556 – DRILLING AND BORING JIG N6 D5,8 D8
Bosch Rexroth
3842537556

DRILLING AND BORING JIG N6 D5,8 D8

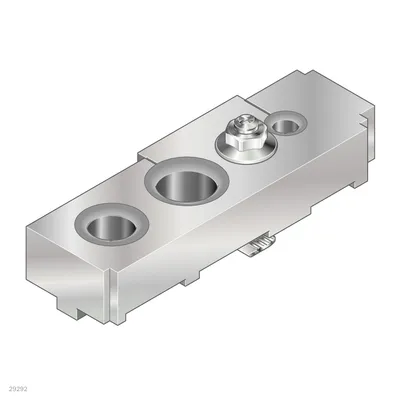

Bosch Rexroth 3842530400 – DRILLING AND BORING JIG N10-D9,8/17-P40+50
Bosch Rexroth
3842530400

DRILLING AND BORING JIG N10-D9,8/17-P40+50

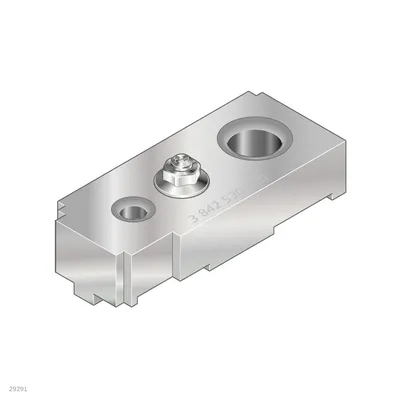

Bosch Rexroth 3842528574 – DRILLING AND BORING JIG N10 D9,8 D17 D21
Bosch Rexroth
3842528574

DRILLING AND BORING JIG N10 D9,8 D17 D21

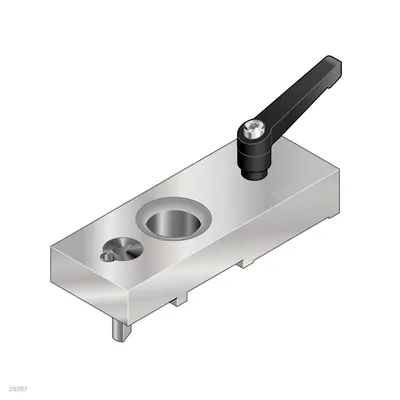

Bosch Rexroth 3842516731 – DRILLING AND BORING JIG N10 D17
Bosch Rexroth
3842516731

DRILLING AND BORING JIG N10 D17

Compare Drilling jigs

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNProfile slotMaterialWeight [kg]
38425285778Steel, galvanized0.29
38425167298Aluminum0.18
38425375566Aluminum0.06
384253040010Steel, galvanized0.09
384252857410Steel, galvanized0.97
384251673110Aluminum0.34

Common to all listed parts

Packaging unit1
Scope of deliveryIncl. fastening material
