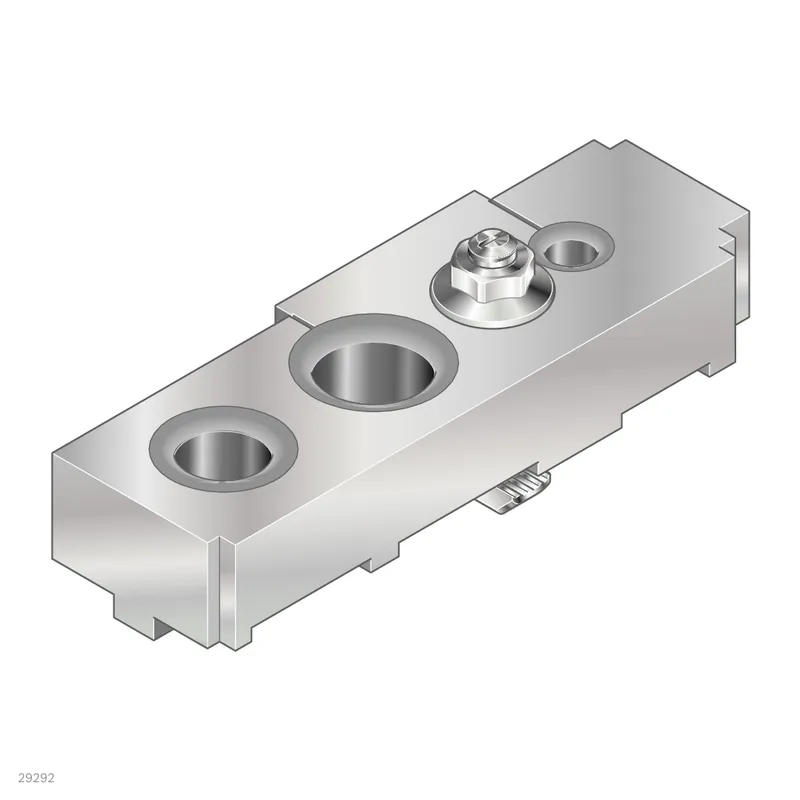

DRILLING AND BORING JIG N10-D9,8/17-P40+50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Drilling jigs |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842530400 be shipped?
3842530400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842530400 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842530400 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842530400, subject to availability and destination.

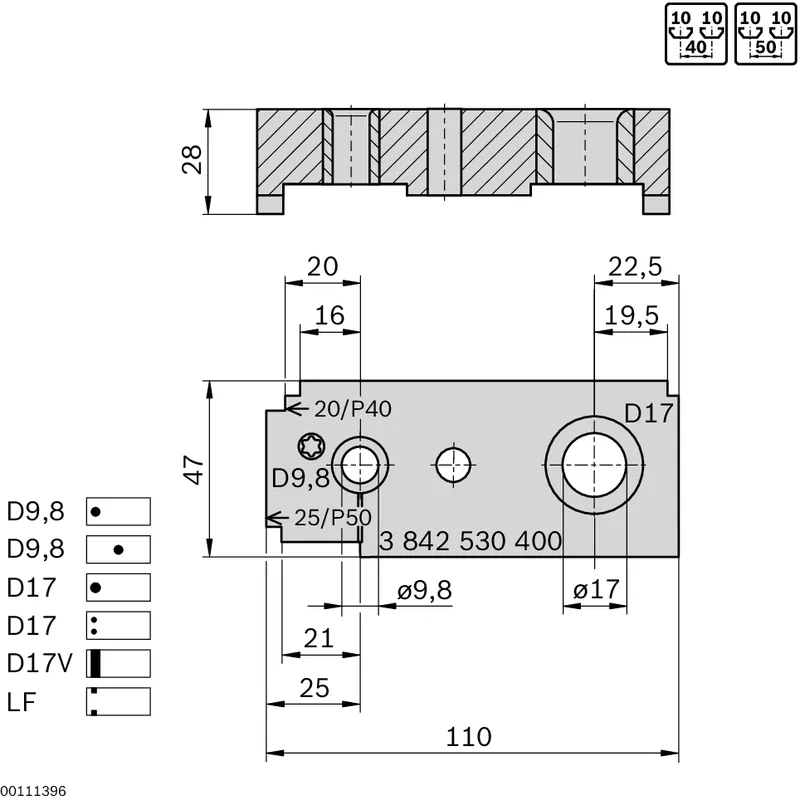

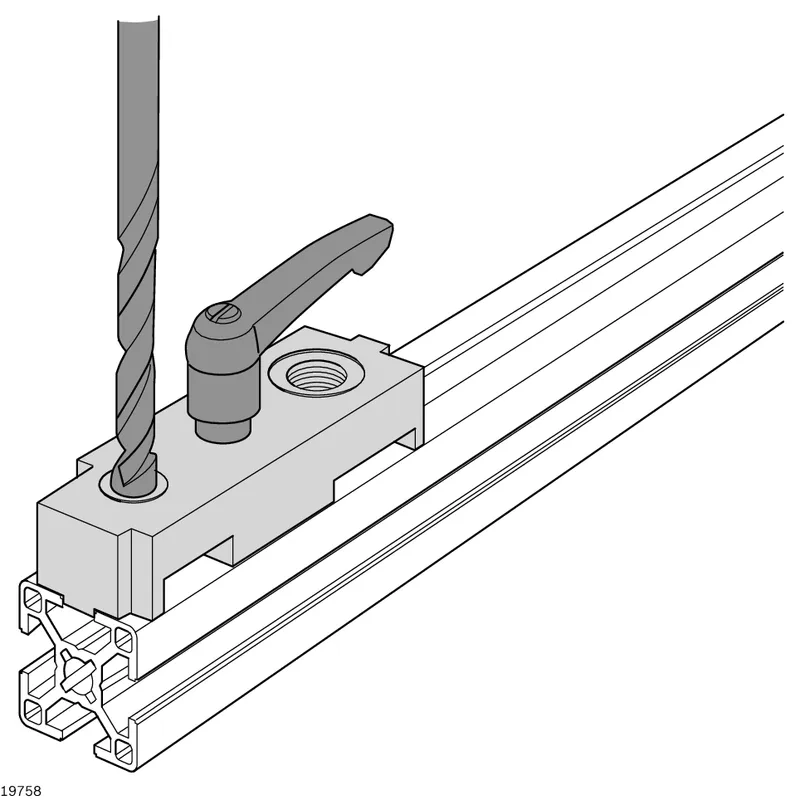

Drilling jig Torx 50 for groove 10 groove spacing 40, 51 For through-holes (ø 9.8) for hexagonal-star socket screwdrivers T50 For fastening holes (ø 17) for bolt connectors, quick connectors, and threaded sleeves
Specifications
Specifications
| Modular dimension [mm] | 40 |
| Modular dimension 02 [mm] | 50 |
| Profile slot | 10 |
| Packaging unit | 1 |
| Scope of delivery | Incl. fastening material |
| Material | Steel, galvanized |
| Fastening material | 1x T-bolt HS10-M8x50; 1x flange nut 10 M8 |
| Weight [kg] | 0.09 |
