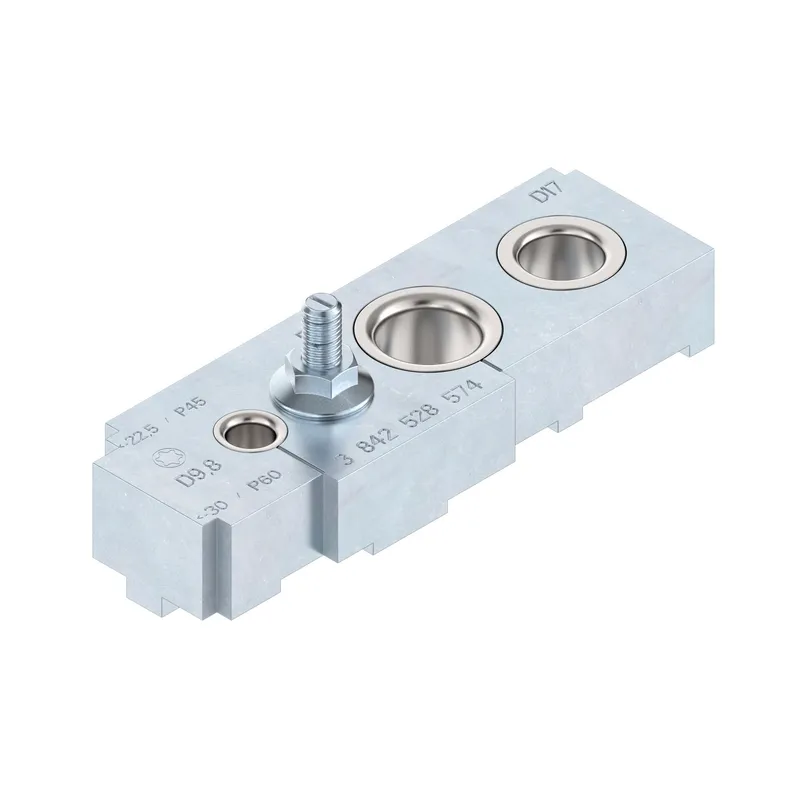

Bosch Rexroth 3842528574
DRILLING AND BORING JIG N10 D9,8 D17 D21
- MPN
- 3842528574
- Category
- Drilling jigs
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842528574?

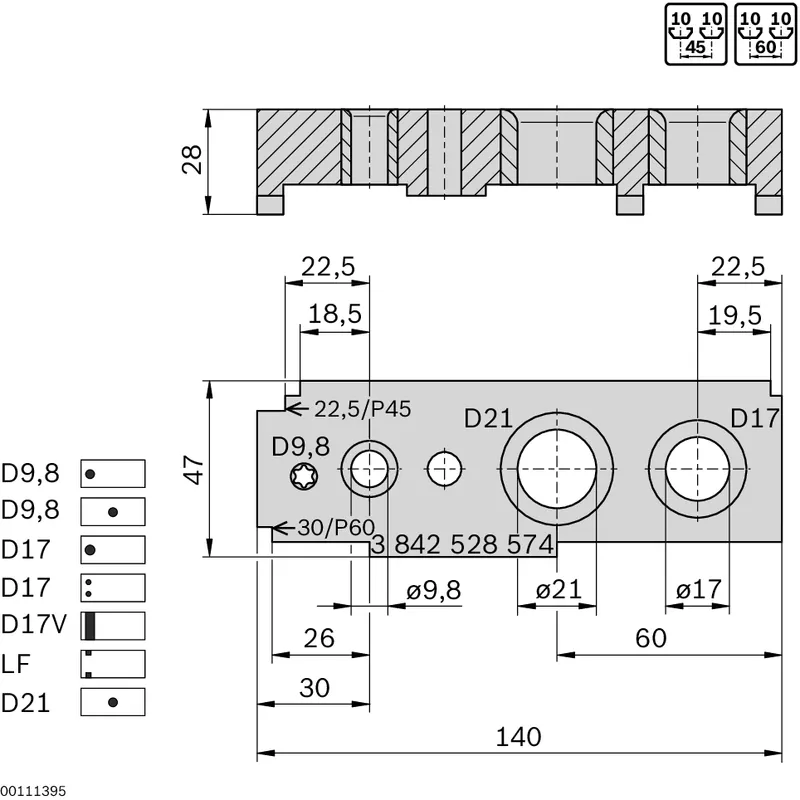

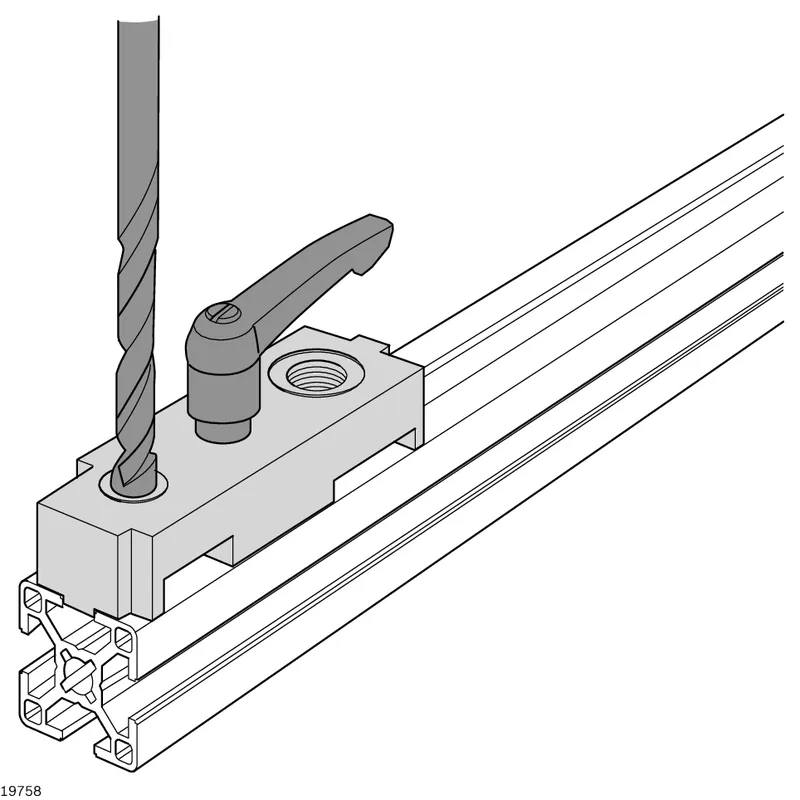

Drilling jig Torx 50 for groove 10 groove spacing 45, 61
For fastening holes (ø 17) for bolt connectors, quick connectors, and threaded sleeves
For through-holes (ø 9.8) for hexagonal-star socket screwdrivers T50
For counterbores (ø 21) for pneumatic connections
Specifications
Specifications
| Modular dimension [mm] | 45 |
| Modular dimension 02 [mm] | 60 |
| Profile slot | 10 |
| Packaging unit | 1 |
| Scope of delivery | Incl. fastening material |
| Material | Steel, galvanized |
| Fastening material | 1x T-bolt HS10-M8x50; 1x flange nut 10 M8 |
| Weight [kg] | 0.97 |
3842528574: frequently asked questions
When can 3842528574 be shipped?
3842528574 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842528574 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842528574 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842528574, subject to availability and destination.
