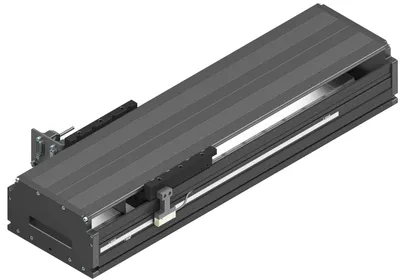

Linear motor modules Parts
























Compare Linear motor modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor | Maximum permissible moving external load mex max [kg] | Length L [mm] | Maximum travel range smax [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R040636538 | IL-30F-W4 | 20.0 | 690.0 | 400.0 | 18.5 |
| R040636536 | IL-30F-W4 | 20.0 | 630.0 | 340.0 | 17.3 |
| R040636534 | IL-30F-W4 | 20.0 | 570.0 | 280.0 | 16 |
| R040636532 | IL-30F-W4 | 20.0 | 510.0 | 220.0 | 14.8 |
| R040636530 | IL-30F-W4 | 20.0 | 450.0 | 160.0 | 13.6 |
| R040636528 | IL-30F-W3 | 15.0 | 1770.0 | 1540.0 | 40.5 |
| R040636526 | IL-30F-W3 | 15.0 | 1710.0 | 1480.0 | 39.2 |
| R040636524 | IL-30F-W3 | 15.0 | 1650.0 | 1420.0 | 37.9 |
| R040636522 | IL-30F-W3 | 15.0 | 1590.0 | 1360.0 | 36.6 |
| R040636520 | IL-30F-W3 | 15.0 | 1530.0 | 1300.0 | 35.3 |
| R040636518 | IL-30F-W3 | 15.0 | 1470.0 | 1240.0 | 34 |
| R040636516 | IL-30F-W3 | 15.0 | 1410.0 | 1180.0 | 32.8 |
| R040636514 | IL-30F-W3 | 15.0 | 1350.0 | 1120.0 | 31.5 |
| R040636512 | IL-30F-W3 | 15.0 | 1290.0 | 1060.0 | 30.3 |
| R040636510 | IL-30F-W3 | 15.0 | 1230.0 | 1000.0 | 29.1 |
| R040636508 | IL-30F-W3 | 15.0 | 1170.0 | 940.0 | 27.8 |
| R040636506 | IL-30F-W3 | 15.0 | 1110.0 | 880.0 | 26.6 |
| R040636504 | IL-30F-W3 | 15.0 | 1050.0 | 820.0 | 25.3 |
| R040636502 | IL-30F-W3 | 15.0 | 990.0 | 760.0 | 24.1 |
| R040636500 | IL-30F-W3 | 15.0 | 930.0 | 700.0 | 22.8 |
| R040636498 | IL-30F-W3 | 15.0 | 870.0 | 640.0 | 21.6 |
| R040636496 | IL-30F-W3 | 15.0 | 810.0 | 580.0 | 20.4 |
| R040636494 | IL-30F-W3 | 15.0 | 750.0 | 520.0 | 19.1 |
| R040636492 | IL-30F-W3 | 15.0 | 690.0 | 460.0 | 17.9 |
Common to all listed parts
| Nominal size [mm] | LMM-180 |
| Motor type | Iron-free linear motor |
| Width [mm] | 180.0 |
| Height [mm] | 81.0 |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: maximum force | Maximum force and current: 4% duty cycle and 1 second duration |
| Dynamic load capacity, guideway Cgw [N] | 32035 |
