Linear motor modules Parts
























Compare Linear motor modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor | Maximum permissible moving external load mex max [kg] | Length L [mm] | Maximum travel range smax [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R040636606 | IL-30F-W5 | 30.0 | 750.0 | 400.0 | 20.4 |
| R040636604 | IL-30F-W5 | 30.0 | 690.0 | 340.0 | 19.2 |
| R040636602 | IL-30F-W5 | 30.0 | 630.0 | 280.0 | 17.9 |
| R040636600 | IL-30F-W5 | 30.0 | 570.0 | 220.0 | 16.7 |
| R040636588 | IL-30F-W5 | 30.0 | 510.0 | 160.0 | 15.4 |
| R040636586 | IL-30F-W4 | 20.0 | 1830.0 | 1540.0 | 42.4 |
| R040636584 | IL-30F-W4 | 20.0 | 1770.0 | 1480.0 | 41.1 |
| R040636582 | IL-30F-W4 | 20.0 | 1710.0 | 1420.0 | 39.8 |
| R040636580 | IL-30F-W4 | 20.0 | 1650.0 | 1360.0 | 38.5 |
| R040636578 | IL-30F-W4 | 20.0 | 1590.0 | 1300.0 | 37.2 |
| R040636576 | IL-30F-W4 | 20.0 | 1530.0 | 1240.0 | 35.9 |
| R040636574 | IL-30F-W4 | 20.0 | 1470.0 | 1180.0 | 34.7 |
| R040636572 | IL-30F-W4 | 20.0 | 1410.0 | 1120.0 | 33.4 |
| R040636570 | IL-30F-W4 | 20.0 | 1350.0 | 1060.0 | 32.2 |
| R040636568 | IL-30F-W4 | 20.0 | 1290.0 | 1000.0 | 31 |
| R040636566 | IL-30F-W4 | 20.0 | 1230.0 | 940.0 | 29.7 |
| R040636559 | IL-30F-W4 | 20.0 | 1170.0 | 880.0 | 28.5 |
| R040636557 | IL-30F-W4 | 20.0 | 1110.0 | 820.0 | 27.2 |
| R040636555 | IL-30F-W4 | 20.0 | 1050.0 | 760.0 | 26 |
| R040636553 | IL-30F-W4 | 20.0 | 990.0 | 700.0 | 24.7 |
| R040636551 | IL-30F-W4 | 20.0 | 930.0 | 640.0 | 23.5 |
| R040636549 | IL-30F-W4 | 20.0 | 870.0 | 580.0 | 22.3 |
| R040636547 | IL-30F-W4 | 20.0 | 810.0 | 520.0 | 21 |
| R040636545 | IL-30F-W4 | 20.0 | 750.0 | 460.0 | 19.8 |
Common to all listed parts

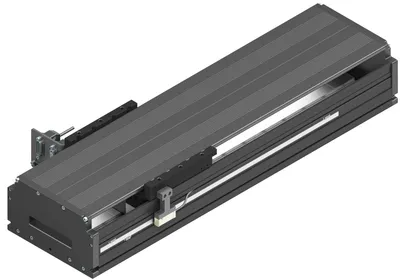

| Nominal size [mm] | LMM-180 |
| Motor type | Iron-free linear motor |
| Width [mm] | 180.0 |
| Height [mm] | 81.0 |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: maximum force | Maximum force and current: 4% duty cycle and 1 second duration |
| Dynamic load capacity, guideway Cgw [N] | 32035 |
