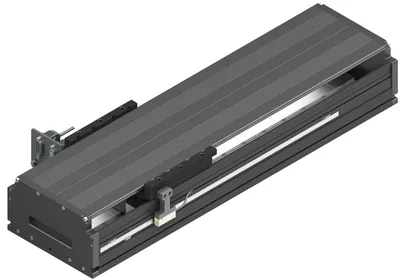

Linear motor modules Parts
























Compare Linear motor modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor type | Motor | Length L [mm] | Maximum travel range smax [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R040636659 | Linear motor with iron core | IC-150B-075-W2 | 692.0 | 520.0 | 15.4 |
| R040636657 | Linear motor with iron core | IC-150B-075-W2 | 608.0 | 436.0 | 14 |
| R040636655 | Linear motor with iron core | IC-150B-075-W2 | 524.0 | 352.0 | 12.5 |
| R040636648 | Linear motor with iron core | IC-150B-075-W2 | 440.0 | 268.0 | 11.1 |
| R040636646 | Linear motor with iron core | IC-150B-075-W2 | 356.0 | 184.0 | 9.6 |
| R040636644 | Iron-free linear motor | IL-30F-W5 | 1890.0 | 1540.0 | 44.3 |
| R040636642 | Iron-free linear motor | IL-30F-W5 | 1830.0 | 1480.0 | 43 |
| R040636640 | Iron-free linear motor | IL-30F-W5 | 1770.0 | 1420.0 | 41.7 |
| R040636638 | Iron-free linear motor | IL-30F-W5 | 1710.0 | 1360.0 | 40.4 |
| R040636636 | Iron-free linear motor | IL-30F-W5 | 1650.0 | 1300.0 | 39.1 |
| R040636634 | Iron-free linear motor | IL-30F-W5 | 1590.0 | 1240.0 | 37.8 |
| R040636632 | Iron-free linear motor | IL-30F-W5 | 1530.0 | 1180.0 | 36.5 |
| R040636630 | Iron-free linear motor | IL-30F-W5 | 1470.0 | 1120.0 | 35.3 |
| R040636628 | Iron-free linear motor | IL-30F-W5 | 1410.0 | 1060.0 | 34.1 |
| R040636626 | Iron-free linear motor | IL-30F-W5 | 1350.0 | 1000.0 | 32.8 |
| R040636624 | Iron-free linear motor | IL-30F-W5 | 1290.0 | 940.0 | 31.6 |
| R040636622 | Iron-free linear motor | IL-30F-W5 | 1230.0 | 880.0 | 30.3 |
| R040636620 | Iron-free linear motor | IL-30F-W5 | 1170.0 | 820.0 | 29.1 |
| R040636618 | Iron-free linear motor | IL-30F-W5 | 1110.0 | 760.0 | 27.8 |
| R040636616 | Iron-free linear motor | IL-30F-W5 | 1050.0 | 700.0 | 26.6 |
| R040636614 | Iron-free linear motor | IL-30F-W5 | 990.0 | 640.0 | 25.4 |
| R040636612 | Iron-free linear motor | IL-30F-W5 | 930.0 | 580.0 | 24.1 |
| R040636610 | Iron-free linear motor | IL-30F-W5 | 870.0 | 520.0 | 22.9 |
| R040636608 | Iron-free linear motor | IL-30F-W5 | 810.0 | 460.0 | 21.6 |
Common to all listed parts
| Nominal size [mm] | LMM-180 |
| Width [mm] | 180.0 |
| Height [mm] | 81.0 |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: maximum force | Maximum force and current: 4% duty cycle and 1 second duration |
| Dynamic load capacity, guideway Cgw [N] | 32035 |
| Dynamic torsional moment load capacity Mt [Nm] | 1986.0 |
