Precision screws Parts
Compare Precision screws
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Direction of lead | Mass m (kg/m) [kg/m] | Weight [kg] | Dimension d2 [mm] |
|---|---|---|---|---|---|
| R151131900 | 32 x 5R x 3,5 | Right | 5.45 | 0 | 28.4 |
| R151131700 | 32 x 5R x 3,5 | Right | 5.45 | 0 | 28.4 |
| R151131500 | 32 x 5R x 3,5 | Right | 5.45 | 0 | 28.4 |

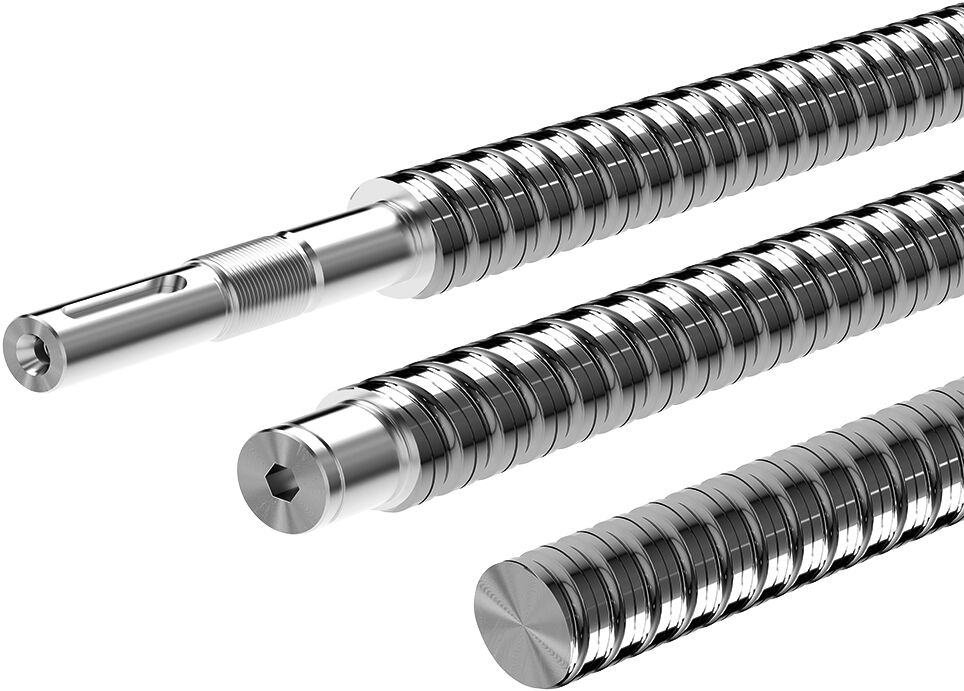

| R155131900 | 32 x 5L x 3,5 | Left | 5.45 | 0 | 28.4 |
| R155131700 | 32 x 5L x 3,5 | Left | 5.45 | 0 | 28.4 |
| R155131500 | 32 x 5L x 3,5 | Left | 5.45 | 0 | 28.4 |
| R151139910 | 32 x 32R x 3,969 | Right | 5.5 | 0 | 27.9 |
| R151139710 | 32 x 32R x 3,969 | Right | 5.5 | 0 | 27.9 |
| R151139510 | 32 x 32R x 3,969 | Right | 5.5 | 0 | 27.9 |
| R151137910 | 32 x 20R x 3,969 | Right | 5.6 | 0 | 27.9 |
| R151137710 | 32 x 20R x 3,969 | Right | 5.6 | 5.58 | 27.9 |
| R151137510 | 32 x 20R x 3,969 | Right | 5.6 | 0 | 27.9 |
| R151134910 | 32 x 10R x 3,969 | Right | 5.6 | 0 | 27.9 |
| R151134710 | 32 x 10R x 3,969 | Right | 5.6 | 0 | 27.9 |
| R151134510 | 32 x 10R x 3,969 | Right | 5.6 | 0 | 27.9 |
| R151121900 | 25 x 5R x 3 | Right | 3.31 | 0 | 21.9 |
| R151121700 | 25 x 5R x 3 | Right | 3.31 | 0 | 21.9 |
| R151121500 | 25 x 5R x 3 | Right | 3.31 | 0 | 21.9 |
| R155121900 | 25 x 5L x 3 | Left | 3.31 | 0 | 21.9 |
| R155121700 | 25 x 5L x 3 | Left | 3.31 | 0 | 21.9 |
| R155121500 | 25 x 5L x 3 | Left | 3.31 | 0 | 21.9 |
| R151128910 | 25 x 25R x 3,5 | Right | 3.25 | 0 | 21.4 |
| R151128710 | 25 x 25R x 3,5 | Right | 3.25 | 0 | 21.4 |
| R151128510 | 25 x 25R x 3,5 | Right | 3.25 | 0 | 21.4 |
Common to all listed parts
| Max. length Lmax [mm] | 2500.0 |
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Maximum operating temperature [°C] | +80 |
| Bearing temperature max [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Bearing temperature min [°C] | -15 |
