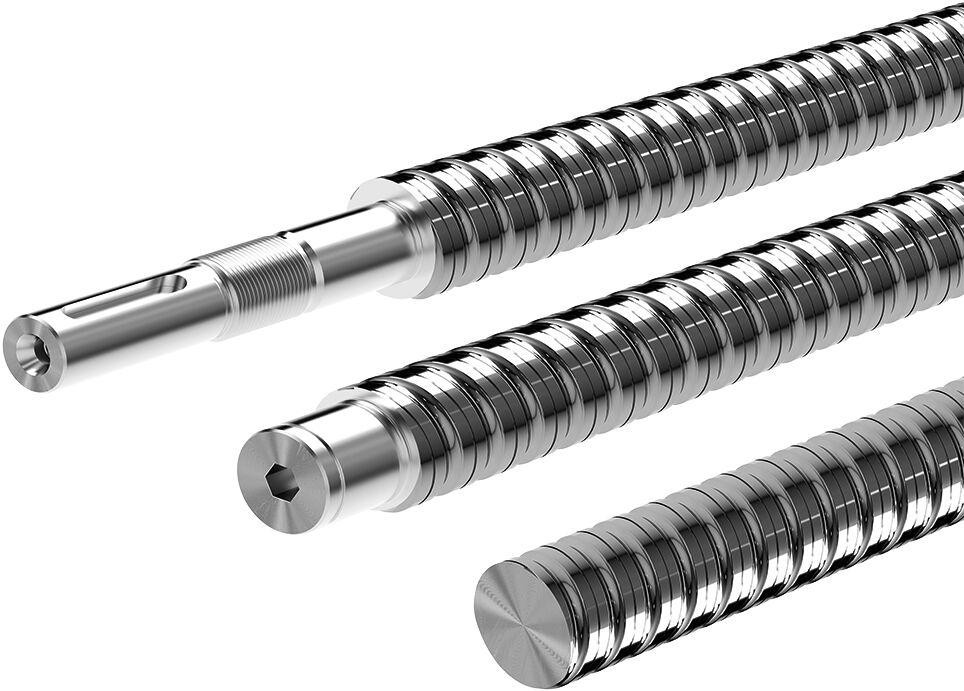

Precision screws Parts
Compare Precision screws
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Max. length Lmax [mm] | Mass m (kg/m) [kg/m] | Dimension d1 [mm] | Dimension d2 [mm] |
|---|---|---|---|---|---|
| R151124900 | 25 x 10R x 3 | 2500.0 | 3.43 | 24 | 21.9 |
| R151124700 | 25 x 10R x 3 | 2500.0 | 3.43 | 24 | 21.9 |
| R151124500 | 25 x 10R x 3 | 2500.0 | 3.43 | 24 | 21.9 |
| R151111900 | 20 x 5R x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R151111700 | 20 x 5R x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R151111500 | 20 x 5R x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R155111900 | 20 x 5L x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R155111700 | 20 x 5L x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R155111500 | 20 x 5L x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R151117910 | 20 x 20R x 3,5 | 1500.0 | 1.99 | 19 | 16.7 |
| R151117710 | 20 x 20R x 3,5 | 1500.0 | 1.99 | 19 | 16.7 |
| R151117510 | 20 x 20R x 3,5 | 1500.0 | 1.99 | 19 | 16.7 |
| R151114900 | 20 x 10R x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R151114700 | 20 x 10R x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R151114500 | 20 x 10R x 3 | 1500.0 | 2.03 | 19 | 16.9 |
| R151101900 | 16 x 5R x 3 | 1500.0 | 1.24 | 15 | 12.9 |
| R151101700 | 16 x 5R x 3 | 1500.0 | 1.24 | 15 | 12.9 |
| R151101500 | 16 x 5R x 3 | 1500.0 | 1.24 | 15 | 12.9 |
| R155101900 | 16 x 5L x 3 | 1500.0 | 1.24 | 15 | 12.9 |
| R155101700 | 16 x 5L x 3 | 1500.0 | 1.24 | 15 | 12.9 |
| R155101500 | 16 x 5L x 3 | 1500.0 | 1.24 | 15 | 12.9 |
| R151106910 | 16 x 16R x 3 | 1500.0 | 1.29 | 15 | 12.9 |
| R151106710 | 16 x 16R x 3 | 1500.0 | 1.29 | 15 | 12.9 |
| R151106510 | 16 x 16R x 3 | 1500.0 | 1.29 | 15 | 12.9 |
Common to all listed parts
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Weight [kg] | 0 |
| Maximum operating temperature [°C] | +80 |
| Bearing temperature max [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Bearing temperature min [°C] | -15 |
