Bosch Rexroth
R040110262BALL RUNNER BLOCK W. MEASURING SYSTEM IMSC-KWD-015-FNS-C1-P-SS-0-01-S1-G-300-D
ball runner block IMScompact Parts
Bosch Rexroth

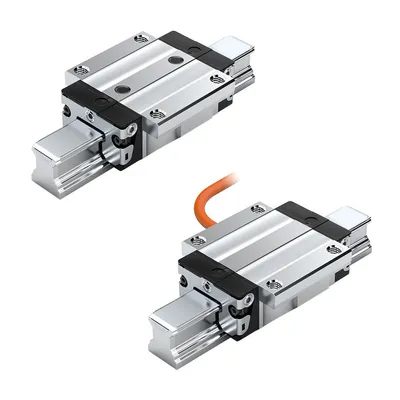

R030101987BALL RUNNER BLOCK W. MEASURING SYSTEM IMSC-KWD-015-FNS-C1-P-SS-0-01-I4-F-300-D
Compare ball runner block IMScompact
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Format | Dynamic load capacity C [N] | Dynamic torsional moment load capacity Mt [Nm] | Dynamic longitudinal moment load capacity ML [Nm] | Static load capacity C0 [N] |
|---|---|---|---|---|---|
| R040110262 | FNS - flange, normal, standard height | 9860.0 | 95.0 | 68.0 | 12700.0 |
| R030101987 | FNS - flange, normal, standard height | 9860.0 | 95.0 | 68.0 | 12700.0 |
| R162229990 | SNS - slimline, normal, standard height | 28600.0 | 410.0 | 290.0 | 35900.0 |
| R162129990 | SNH - slimline, normal, high | 28600.0 | 410.0 | 290.0 | 35900.0 |
| R162329990 | SLS - slimline, long, standard height | 37300.0 | 530.0 | 530.0 | 52500.0 |
| R162429990 | SLH - slimline, long, high | 37300.0 | 530.0 | 530.0 | 52500.0 |
| R165129990 | FNS - flange, normal, standard height | 28600.0 | 410.0 | 290.0 | 35900.0 |
| R165329990 | FLS - flange, long, standard height | 37300.0 | 530.0 | 530.0 | 52500.0 |
| R162289990 | SNS - slimline, normal, standard height | 23400.0 | 300.0 | 200.0 | 29800.0 |
| R162389990 | SLS - slimline, long, standard height | 29600.0 | 380.0 | 340.0 | 41800.0 |
| R165189990 | FNS - flange, normal, standard height | 23400.0 | 300.0 | 200.0 | 29800.0 |
| R165389990 | FLS - flange, long, standard height | 29600.0 | 380.0 | 340.0 | 41800.0 |
| R162219990 | SNS - slimline, normal, standard height | 9860.0 | 95.0 | 68.0 | 12700.0 |
| R162119990 | SNH - slimline, normal, high | 9860.0 | 95.0 | 68.0 | 12700.0 |
| R162319990 | SLS - slimline, long, standard height | 12800.0 | 120.0 | 120.0 | 18400.0 |
| R165119990 | FNS - flange, normal, standard height | 9860.0 | 95.0 | 68.0 | 12700.0 |
| R165319990 | FLS - flange, long, standard height | 12800.0 | 120.0 | 120.0 | 18400.0 |
Common to all listed parts
| Accuracy class | P - Precise |
| Ball chain | Without ball chain (standard) |
| Cable length [m] | max. 3 |
| Type integrated measuring system | IMScompact |
