Bosch Rexroth R162229990

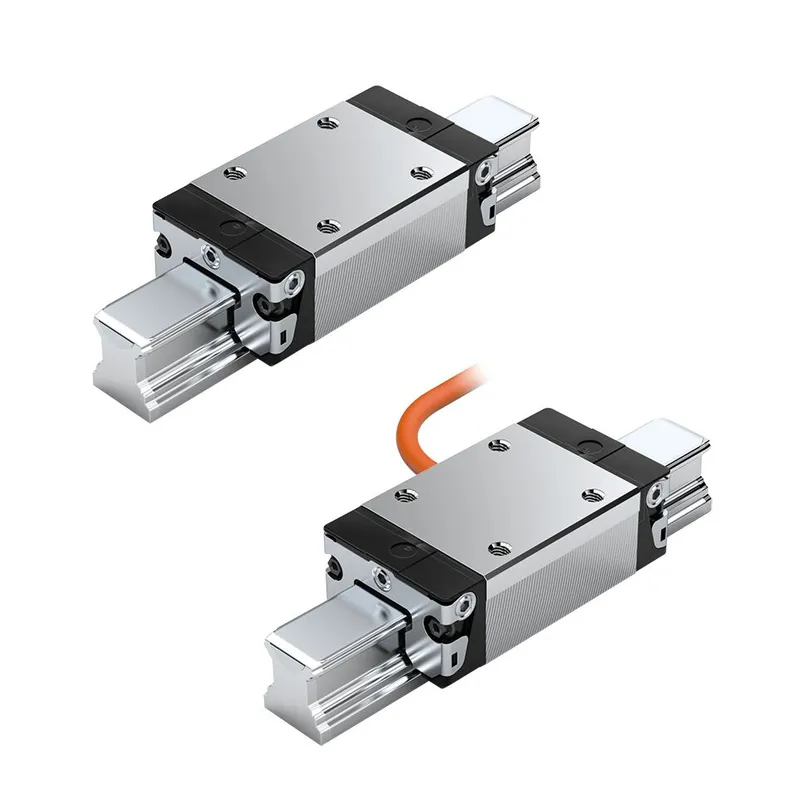

BALL RUNNER BLOCK KWD-025-SNS-VC

MPN: R162229990
Category: ball runner block IMScompact

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R162229990?

Configurable ball runner block SNS, optionally with integrated measuring sensor.

The runner block and the measuring sensor form a compact, pre-assembled unit

The runner block is fully loadable up to Fmax and compatible with the Rexroth interchangeable design. With the integrated seals and the massive steel shield, the electronics are optimally protected.

Specifications

Nominal size [mm]	25
Format	SNS - slimline, normal, standard height
Preload class	C1, C2 from low to medium preload
Accuracy class	P - Precise
Seal	Standard seal, low-friction seal
Ball chain	Without ball chain (standard)
Dynamic load capacity C [N]	28600.0
Dynamic torsional moment load capacity Mt [Nm]	410.0
Dynamic longitudinal moment load capacity ML [Nm]	290.0
Weight [kg]	0
Static load capacity C0 [N]	35900.0
Static torsional moment load capacity Mt0 [Nm]	510
Static longitudinal moment load capacity ML0 [Nm]	360
Cable length [m]	max. 3
Interface	incremental: TTL 10µm, 1Vss / 1000µm, absolute: SSI 10 µm
Type integrated measuring system	IMScompact
