Bosch Rexroth R040110262

BALL RUNNER BLOCK W. MEASURING SYSTEM IMSC-KWD-015-FNS-C1-P-SS-0-01-S1-G-300-D

MPN: R040110262
Category: ball runner block IMScompact

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R040110262?

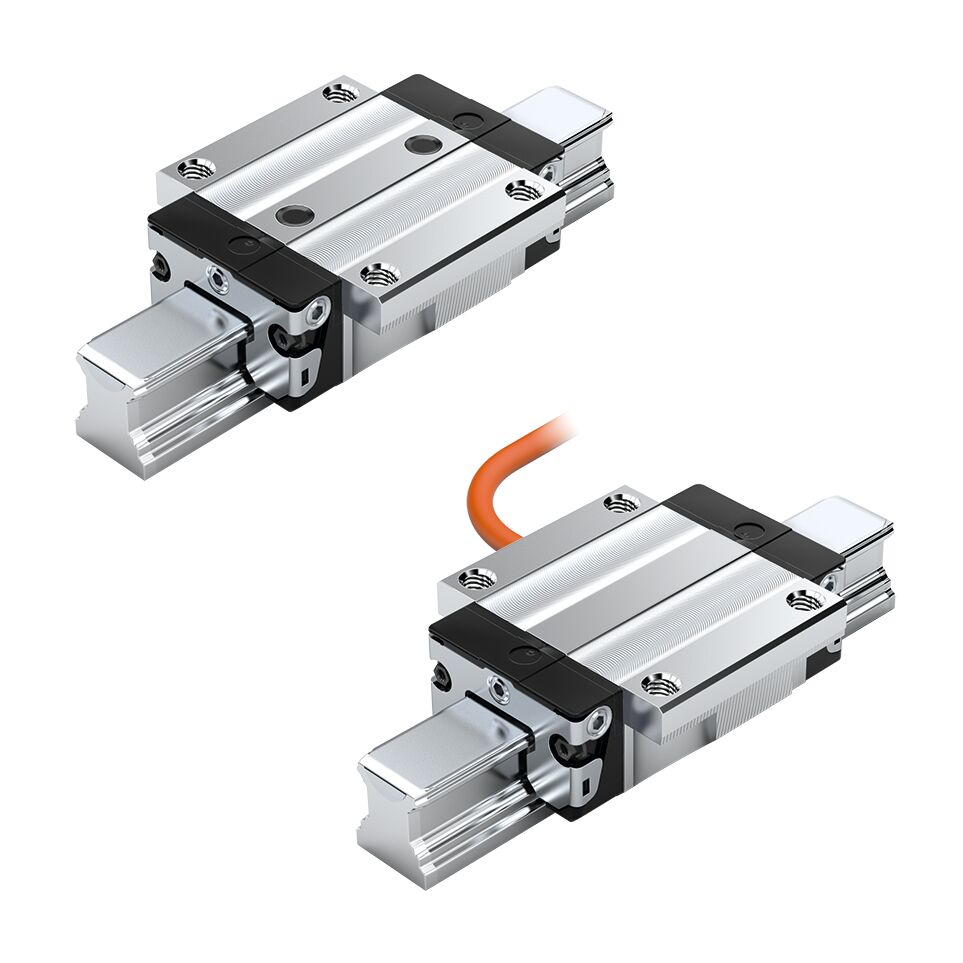

Ball runner block with integrated measuring sensor.

The runner block and the measuring sensor form a compact, completely assembled unit

The runner block is fully loadable up to Fmax and compatible with the Rexroth interchangeable design. With the integrated gaskets and the massive steel shield, the electronics are optimally protected.

Specifications

Nominal size [mm]	15
Format	FNS - flange, normal, standard height
Preload class	C1 - Low preload
Accuracy class	P - Precise
Seal	SS - Standard seal
Ball chain	Without ball chain (standard)
Dynamic load capacity C [N]	9860.0
Dynamic torsional moment load capacity Mt [Nm]	95.0
Dynamic longitudinal moment load capacity ML [Nm]	68.0
Weight [kg]	0.2
Static load capacity C0 [N]	12700.0
Static torsional moment load capacity Mt0 [Nm]	120
Static longitudinal moment load capacity ML0 [Nm]	87
Cable length [m]	max. 3
Interface	absolute: SSI 10 µm
Connector type	15-pin sub-D. pins, SSI/EC
Type integrated measuring system	IMScompact
