Precision steel shafts with shaft support rails Parts
Available on requestSHAFT WITH SUPPORT WM-25-AS1-H6X46-MPN: R101502530 · Bosch Rexroth
Price on request
Request a quote

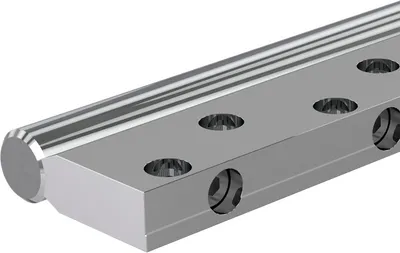

Available on requestSHAFT WITH SUPPORT WM-25-AS1-H6CR-MPN: R101502560 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AS1-H6-MPN: R101502500 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AP-H7X46-MPN: R102502531 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AP-H7CR-MPN: R102502561 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AP-H7-MPN: R102502501 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AP-H6X46-MPN: R102502530 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AP-H6CR-MPN: R102502560 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AP-H6-MPN: R102502500 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH2-H7X46-MPN: R101152531 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH2-H7CR-MPN: R101152561 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH2-H7-MPN: R101152501 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH2-H6X46-MPN: R101152530 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH2-H6CR-MPN: R101152560 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH2-H6-MPN: R101152500 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH1-H7X46-MPN: R101102531 · Bosch Rexroth
Price on request
Request a quote

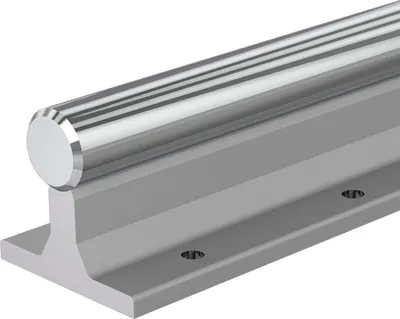

Available on requestSHAFT WITH SUPPORT WM-25-AFH1-H7CR-MPN: R101102561 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH1-H7-MPN: R101102501 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH1-H6X46-MPN: R101102530 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH1-H6CR-MPN: R101102560 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFH1-H6-MPN: R101102500 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFE2-H7CR-MPN: R101052561 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFE2-H746-MPN: R101052531 · Bosch Rexroth
Price on request
Request a quote
Available on requestSHAFT WITH SUPPORT WM-25-AFE2-H7-MPN: R101052501 · Bosch Rexroth
Price on request
Request a quoteCompare Precision steel shafts with shaft support rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Tolerance grade shaft | Mass m (kg/m) [kg/m] | Dimension O1 thread x lead [mm] | Dimension O2 thread diameter | Dimension V [mm] |
|---|---|---|---|---|---|
| R101502530 | h6 | 6 | M8x50 | M8x20 | 20 |
| R101502560 | h6 | 6 | M8x50 | M8x20 | 20 |
| R101502500 | h6 | 6 | M8x50 | M8x20 | 20 |
| R102502531 | h7 | 5.4 | M8x30 | M6 | 6 |
| R102502561 | h7 | 5.4 | M8x30 | M6 | 6 |
| R102502501 | h7 | 5.4 | M8x30 | M6 | 6 |
| R102502530 | h6 | 5.4 | M8x30 | M6 | 6 |
| R102502560 | h6 | 5.4 | M8x30 | M6 | 6 |
| R102502500 | h6 | 5.4 | M8x30 | M6 | 6 |
| R101152531 | h7 | 5.9 | M8x35 | M6x16 | 6 |
| R101152561 | h7 | 5.9 | M8x35 | M6x16 | 6 |
| R101152501 | h7 | 5.9 | M8x35 | M6x16 | 6 |
| R101152530 | h6 | 5.9 | M8x35 | M6x16 | 6 |
| R101152560 | h6 | 5.9 | M8x35 | M6x16 | 6 |
| R101152500 | h6 | 5.9 | M8x35 | M6x16 | 6 |
| R101102531 | h7 | 5.9 | M8x35 | M6x16 | 6 |
| R101102561 | h7 | 5.9 | M8x35 | M6x16 | 6 |
| R101102501 | h7 | 5.9 | M8x35 | M6x16 | 6 |
| R101102530 | h6 | 5.9 | M8x35 | M6x16 | 6 |
| R101102560 | h6 | 5.9 | M8x35 | M6x16 | 6 |
| R101102500 | h6 | 5.9 | M8x35 | M6x16 | 6 |
| R101052561 | h7 | 5.4 | M8x30 | M6x16 | 6 |
| R101052531 | h7 | 5.4 | M8x30 | M6x16 | 6 |
| R101052501 | h7 | 5.4 | M8x30 | M6x16 | 6 |
Common to all listed parts
| Shaft diameter d [mm] | 25.0 |
| Material shaft support rails | Aluminum |
| Weight [kg] | 0 |
| Dimension M [mm] | 10.8 |
| Dimension N [mm] | 15 |
