Linear sets with linear bushings Parts
























Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

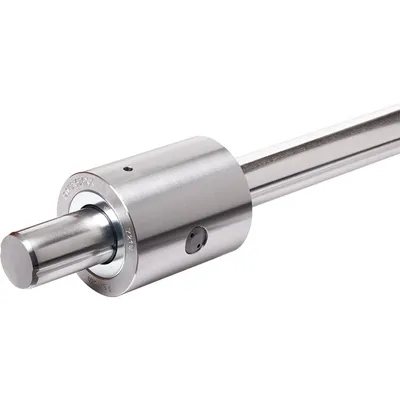

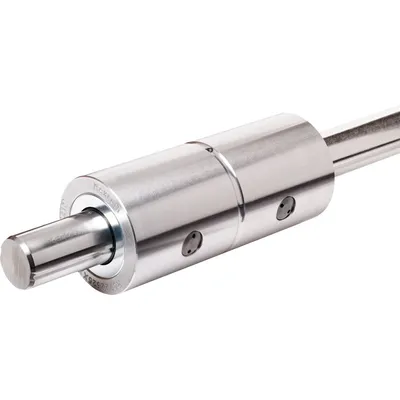

| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Dynamic torsional moment load capacity Mt [Nm] | Mass m (kg/m) [kg/m] | Weight [kg] |
|---|---|---|---|---|---|
| R072153088 | 30.0 | 3680.0 | 37.0 | 5.5 | 13.2 |
| R072153087 | 30.0 | 3680.0 | 37.0 | 5.5 | 0.1 |
| R072153069 | 30.0 | 3680.0 | 37.0 | 5.5 | 0 |
| R072153086 | 30.0 | 3680.0 | 37.0 | 5.5 | 0 |
| R072152579 | 25.0 | 3030.0 | 24.0 | 3.8 | 0 |
| R072152589 | 25.0 | 3030.0 | 24.0 | 3.8 | 0 |
| R072152585 | 25.0 | 3030.0 | 24.0 | 3.8 | 0.1 |
| R072152580 | 25.0 | 3030.0 | 24.0 | 3.8 | 0.8 |
| R072152588 | 25.0 | 3030.0 | 24.0 | 3.8 | 0.1 |
| R072152587 | 25.0 | 3030.0 | 24.0 | 3.8 | 0.1 |
| R072152569 | 25.0 | 3030.0 | 24.0 | 3.8 | 0 |
| R072152586 | 25.0 | 3030.0 | 24.0 | 3.8 | 0 |
| R072152079 | 20.0 | 1550.0 | 12.0 | 2.45 | 0 |
| R072152089 | 20.0 | 1550.0 | 12.0 | 2.45 | 0 |
| R072152085 | 20.0 | 1550.0 | 12.0 | 2.45 | 3.43 |
| R072152080 | 20.0 | 1550.0 | 12.0 | 2.45 | 2.23 |
| R072152088 | 20.0 | 1550.0 | 12.0 | 2.45 | 0.1 |
| R072152087 | 20.0 | 1550.0 | 12.0 | 2.45 | 0.1 |
| R072152086 | 20.0 | 1550.0 | 12.0 | 2.45 | 0 |
| R072221679 | 16.0 | 1260.0 | 5.5 | 1.57 | 0 |
| R072221689 | 16.0 | 1260.0 | 5.5 | 1.57 | 0 |
| R072221685 | 16.0 | 1260.0 | 5.5 | 1.57 | 2.35 |
| R072221680 | 16.0 | 1260.0 | 5.5 | 1.57 | 1.3 |
| R072221688 | 16.0 | 1260.0 | 5.5 | 1.57 | 0.1 |
Common to all listed parts
| Format of linear bushings | H - Sleeve design |
| Series | Torque |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
