Linear sets with linear bushings Parts

Showing 241–264 of 912 parts
Bosch Rexroth R072252080 – LINEAR-SET LSHDR2T-20-WV-500
Bosch Rexroth
R072252080

LINEAR-SET LSHDR2T-20-WV-500

Bosch Rexroth R072252088 – LINEAR-SET LSHDR2T-20-WV-2000
Bosch Rexroth
R072252088

LINEAR-SET LSHDR2T-20-WV-2000

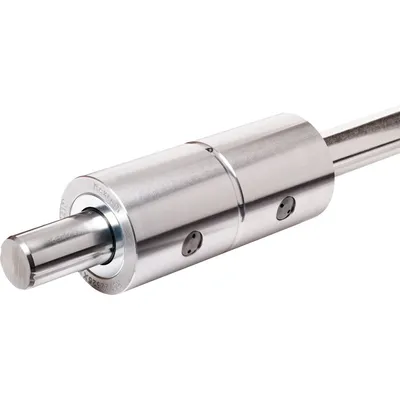

Bosch Rexroth R072252087 – LINEAR-SET LSHDR2T-20-WV-1200
Bosch Rexroth
R072252087

LINEAR-SET LSHDR2T-20-WV-1200

Bosch Rexroth R072252086 – LINEAR-SET LSHDR2T-20-SPECIAL
Bosch Rexroth
R072252086

LINEAR-SET LSHDR2T-20-SPECIAL

Bosch Rexroth R072155079 – LINEAR-SET LSHDR2-50-WV-X90-K
Bosch Rexroth
R072155079

LINEAR-SET LSHDR2-50-WV-X90-K

Bosch Rexroth R072155089 – LINEAR-SET LSHDR2-50-WV-K
Bosch Rexroth
R072155089

LINEAR-SET LSHDR2-50-WV-K

Bosch Rexroth R072155085 – LINEAR-SET LSHDR2-50-WV-900
Bosch Rexroth
R072155085

LINEAR-SET LSHDR2-50-WV-900

Bosch Rexroth R072155080 – LINEAR-SET LSHDR2-50-WV-600
Bosch Rexroth
R072155080

LINEAR-SET LSHDR2-50-WV-600

Bosch Rexroth R072155088 – LINEAR-SET LSHDR2-50-WV-2000
Bosch Rexroth
R072155088

LINEAR-SET LSHDR2-50-WV-2000

Bosch Rexroth R072155087 – LINEAR-SET LSHDR2-50-WV-1200
Bosch Rexroth
R072155087

LINEAR-SET LSHDR2-50-WV-1200

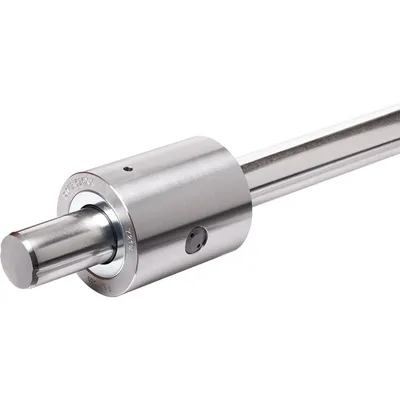

Bosch Rexroth R072155069 – LINEAR-SET LSHDR2-50-WO-K
Bosch Rexroth
R072155069

LINEAR-SET LSHDR2-50-WO-K

Bosch Rexroth R072155086 – LINEAR-SET LSHDR2-50-SPECIAL
Bosch Rexroth
R072155086

LINEAR-SET LSHDR2-50-SPECIAL

Bosch Rexroth R072154079 – LINEAR-SET LSHDR2-40-WV-X90-K
Bosch Rexroth
R072154079

LINEAR-SET LSHDR2-40-WV-X90-K

Bosch Rexroth R072154089 – LINEAR-SET LSHDR2-40-WV-K
Bosch Rexroth
R072154089

LINEAR-SET LSHDR2-40-WV-K

Bosch Rexroth R072154085 – LINEAR-SET LSHDR2-40-WV-900
Bosch Rexroth
R072154085

LINEAR-SET LSHDR2-40-WV-900

Bosch Rexroth R072154080 – LINEAR-SET LSHDR2-40-WV-600
Bosch Rexroth
R072154080

LINEAR-SET LSHDR2-40-WV-600

Bosch Rexroth R072154088 – LINEAR-SET LSHDR2-40-WV-2000
Bosch Rexroth
R072154088

LINEAR-SET LSHDR2-40-WV-2000

Bosch Rexroth R072154087 – LINEAR-SET LSHDR2-40-WV-1200
Bosch Rexroth
R072154087

LINEAR-SET LSHDR2-40-WV-1200

Bosch Rexroth R072154069 – LINEAR-SET LSHDR2-40-WO-K
Bosch Rexroth
R072154069

LINEAR-SET LSHDR2-40-WO-K

Bosch Rexroth R072154086 – LINEAR-SET LSHDR2-40-SPECIAL
Bosch Rexroth
R072154086

LINEAR-SET LSHDR2-40-SPECIAL

Bosch Rexroth R072153079 – LINEAR-SET LSHDR2-30-WV-X90-K
Bosch Rexroth
R072153079

LINEAR-SET LSHDR2-30-WV-X90-K

Bosch Rexroth R072153089 – LINEAR-SET LSHDR2-30-WV-K
Bosch Rexroth
R072153089

LINEAR-SET LSHDR2-30-WV-K

Bosch Rexroth R072153085 – LINEAR-SET LSHDR2-30-WV-900
Bosch Rexroth
R072153085

LINEAR-SET LSHDR2-30-WV-900

Bosch Rexroth R072153080 – LINEAR-SET LSHDR2-30-WV-600
Bosch Rexroth
R072153080

LINEAR-SET LSHDR2-30-WV-600

Compare Linear sets with linear bushings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNShaft diameter d [mm]Dynamic load capacity C [N]Dynamic torsional moment load capacity Mt [Nm]Mass m (kg/m) [kg/m]Static load capacity C0 [N]
R07225208020.02500.020.02.452100.0
R07225208820.02500.020.02.452100.0
R07225208720.02500.020.02.452100.0
R07225208620.02500.020.02.452100.0
R07215507950.09250.0167.015.36470.0
R07215508950.09250.0167.015.36470.0
R07215508550.09250.0167.015.36470.0
R07215508050.09250.0167.015.36470.0
R07215508850.09250.0167.015.36470.0
R07215508750.09250.0167.015.36470.0
R07215506950.09250.0167.015.36470.0
R07215508650.09250.0167.015.36470.0
R07215407940.06320.086.09.84350.0
R07215408940.06320.086.09.84350.0
R07215408540.06320.086.09.84350.0
R07215408040.06320.086.09.84350.0
R07215408840.06320.086.09.84350.0
R07215408740.06320.086.09.84350.0
R07215406940.06320.086.09.84350.0
R07215408640.06320.086.09.84350.0
R07215307930.03680.037.05.52790.0
R07215308930.03680.037.05.52790.0
R07215308530.03680.037.05.52790.0
R07215308030.03680.037.05.52790.0

Common to all listed parts

Format of linear bushingsH - Sleeve design
SeriesTorque
TypeLinear set
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
