Bosch Rexroth R186526371

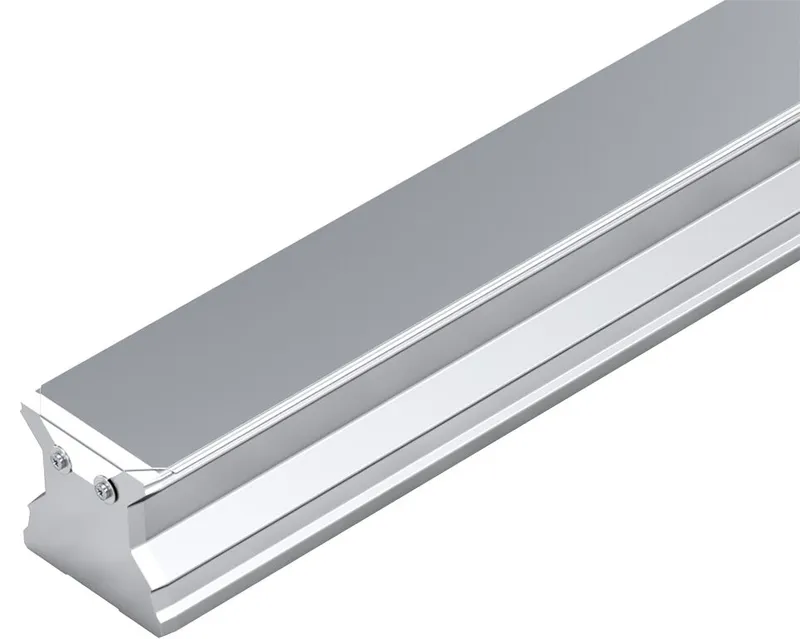

ROLLER GUIDE RAIL RESIST CR RSA-100-SNS-H-MA-SC

MPN: R186526371
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R186526371?

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:

Size 100

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS, matte-silver, hard chrome plated

Fastener MA: Bolting from above

Cover AB: Cover strip and protective caps

Accuracy class high

Number of partial sections: one-piece

Rail in standard version

For mounting from above

Cover strip made of corrosion-resistant spring steel as per DIN EN 10088

(with threaded holes at the end faces)

Corrosion-resistant heavy-duty roller runner blocks and roller guide rails in Resist CR, matt silver finish, hard chrome-plated, available in accuracy class H (preloads C2 and C3).

High torque load capacity

Hardened raceways smoothened on all sides

One cover for all bore holes saves time and costs

Maximum rigidity in all load directions

Cover strip can be mounted simply and securely

Clip on cover strip and lock

Specifications

Version	Roller rail systems
Nominal size [mm]	100
Format	SNS - Standard guide rail
Material (profiled rail systems)	Hard chrome plated
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip
Max. length Lmax [mm]	2500.0
Minimum length Lmin [mm]	280.0
Number of holes nB (profiled rail systems)	35
Number of sections	1-piece
Mass m (kg/m) [kg/m]	42.5
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = nB • T ‒ 7 mm
Pitch T guide rail [mm]	105
Dimension A2 (profiled rail systems) [mm]	100
Dimension D [mm]	40
Dimension diameter S5 (profiled rail systems)	26
Dimension H2 with cover strip (profiled rail systems) [mm]	87.3
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.3 mm
Dimension N6 (profiled rail systems) [mm]	55
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension N7 (profiled rail systems) [mm]	65
Dimension N8 (profiled rail systems) [mm]	28
Dimension N9 (profiled rail systems) [mm]	4.8
Dimension T [mm]	105
Dimension T1 max (profiled rail systems) [mm]	70
Dimension T1 min [mm]	35
Dimension T1 s (profiled rail systems) [mm]	49
Footnote of dimension T1 min (profiled rail systems)	When undercutting T<sub>1 min</sub>, no front-side thread possible. Secure the cover strip! Observe the instruction for mounting!
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerance +1/-1.5
Height of guide rail H2 with cover strip [mm]	87.3
