Roller guide rails Parts

Bosch Rexroth R180566861 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-G-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-G-MA-AB

Bosch Rexroth R180562832 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-G-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-G-MA-0T

Bosch Rexroth R180562831 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-G-MA-0T

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-G-MA-0T

Bosch Rexroth R18056C932 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AK

Bosch Rexroth R18056C931 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AK

Bosch Rexroth R18056D962 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AB

Bosch Rexroth R18056D961 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AB

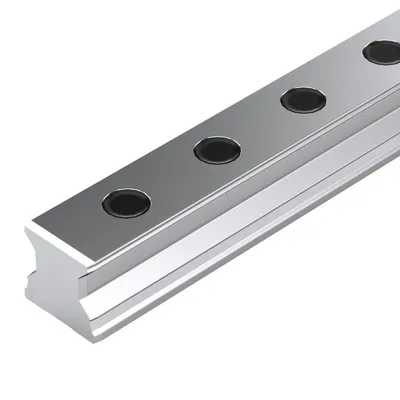

Bosch Rexroth R18056C132 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AK

Bosch Rexroth R18056C131 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AK

Bosch Rexroth R18066C131 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AK

Bosch Rexroth R18056D168 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth R18056D167 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth R18056D166 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth R18056D165 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth R18056D164 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth R18056D163 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth R18056D162 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

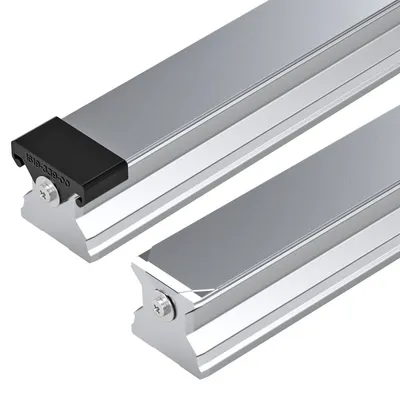

Bosch Rexroth R18056D161 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AB

Bosch Rexroth R18056C232 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AK

Bosch Rexroth R18056C231 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AK

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AK

Bosch Rexroth R18056D268 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Bosch Rexroth R18056D267 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Bosch Rexroth R18056D266 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Bosch Rexroth R18056D265 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Bosch Rexroth

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-P-MA-AB

Compare Roller guide rails

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Accuracy class	Guide rail cover	Max. length Lmax [mm]	Number of sections
R180566861	SNS - Standard guide rail	GP - In pairs	With cover strip and protective caps	5921.0	1-piece
R180562832	SNS - Standard guide rail	GP - In pairs	Without cover strip	3971.0	2-piece
R180562831	SNS - Standard guide rail	GP - In pairs	Without cover strip	5921.0	1-piece
R18056C932	SNO - guide rail without base slot	UP - Ultra precise	Plastic caps	3971.0	2-piece
R18056C931	SNO - guide rail without base slot	UP - Ultra precise	Plastic caps	5921.0	1-piece
R18056D962	SNO - guide rail without base slot	UP - Ultra precise	With cover strip and protective caps	3971.0	2-piece
R18056D961	SNO - guide rail without base slot	UP - Ultra precise	With cover strip and protective caps	5921.0	1-piece
R18056C132	SNO - guide rail without base slot	SP - Super precise	Plastic caps	3971.0	2-piece
R18056C131	SNO - guide rail without base slot	SP - Super precise	Plastic caps	5921.0	1-piece
R18066C131	SNO - guide rail without base slot	SP - Super precise	With steel caps	3971.0	One-piece
R18056D168	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	3971.0	8-piece
R18056D167	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	3971.0	7-piece
R18056D166	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	3971.0	6-piece
R18056D165	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	3971.0	5-piece
R18056D164	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	3971.0	4-piece
R18056D163	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	3971.0	3-piece
R18056D162	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	3971.0	2-piece
R18056D161	SNO - guide rail without base slot	SP - Super precise	With cover strip and protective caps	5921.0	1-piece
R18056C232	SNO - guide rail without base slot	P - Precise	Plastic caps	3971.0	2-piece
R18056C231	SNO - guide rail without base slot	P - Precise	Plastic caps	5921.0	1-piece
R18056D268	SNO - guide rail without base slot	P - Precise	With cover strip and protective caps	3971.0	8-piece
R18056D267	SNO - guide rail without base slot	P - Precise	With cover strip and protective caps	3971.0	7-piece
R18056D266	SNO - guide rail without base slot	P - Precise	With cover strip and protective caps	3971.0	6-piece
R18056D265	SNO - guide rail without base slot	P - Precise	With cover strip and protective caps	3971.0	5-piece

Common to all listed parts

Version	Roller rail systems
Nominal size [mm]	65
Material (profiled rail systems)	Carbon steel
Guide rail mounting	For bolting from above
Number of holes nB (profiled rail systems)	53
Mass m (kg/m) [kg/m]	17.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
