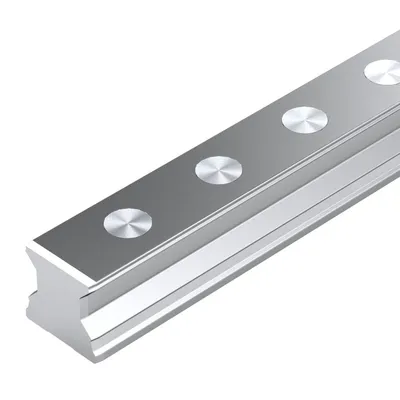

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AB

Name: Bosch Rexroth R18056D961 – ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-U-MA-AB
Brand: Bosch Rexroth
SKU: R18056D961

MPN: R18056D961 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Roller guide rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R18056D961 be shipped?

R18056D961 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R18056D961 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R18056D961 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R18056D961, subject to availability and destination.

The roller guide rail is highly precise and characterized by the following product features:

Size 65

Format SNO: Width = slimline, length = standard , height = without groove

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover AB: Cover strip and protective caps

Accuracy class ultra precision

Number of partial sections: one-piece

Rail in standard version

With smooth base area for mounting surfaces from cast mineral parts

For mounting from above

Cover strip made of corrosion-resistant spring steel as per DIN EN 10088

With screw-down protective plastic caps (with threaded holes on end faces)

Available in sizes 35-65 and all accuracy classes

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

One cover for all bore holes saves time and costs

Cover strip can be mounted simply and securely

Clip on cover strip and lock

Specifications

Version	Roller rail systems
Nominal size [mm]	65
Format	SNO - guide rail without base slot
Material (profiled rail systems)	Carbon steel
Accuracy class	UP - Ultra precise
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip and protective caps
Max. length Lmax [mm]	5921.0
Note: Lmax	Available on request
Number of holes nB (profiled rail systems)	53
Number of sections	1-piece
Mass m (kg/m) [kg/m]	17.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product information	Available on request.
Pitch T guide rail [mm]	75
Dimension A2 (profiled rail systems) [mm]	63
Dimension D [mm]	26
Dimension diameter S5 (profiled rail systems)	18
Dimension H2 with cover strip (profiled rail systems) [mm]	58.15
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.3 mm
Dimension N10 (profiled rail systems) [mm]	4.35
Dimension N6 (profiled rail systems) [mm]	36.5
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension N7 (profiled rail systems) [mm]	40
Dimension N8 (profiled rail systems) [mm]	20
Dimension N9 (profiled rail systems) [mm]	7
Dimension T [mm]	75
Dimension T1 max (profiled rail systems) [mm]	55
Dimension T1 min [mm]	21
Dimension T1 s (profiled rail systems) [mm]	35.5
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
Height of guide rail H2 with cover strip [mm]	58.15
