Bosch Rexroth R18056C132

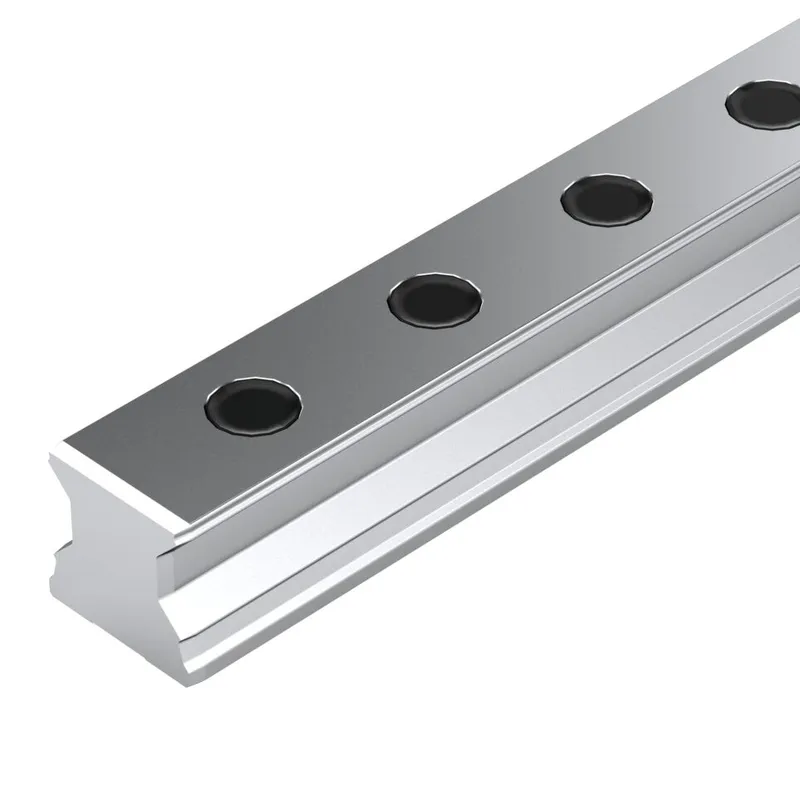

ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNO-S-MA-AK

MPN: R18056C132
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R18056C132?

The roller guide rail is highly precise and characterized by the following product features:

Size 65

Format SNO: Width = slimline, length = standard , height = without groove

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover AK: Plastic caps

Accuracy class super precision

Number of partial sections: 2

Rail in standard version

With smooth base area for mounting surfaces from cast mineral parts

For mounting from above

Available in sizes 35-65 and all accuracy classes

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Specifications

Version	Roller rail systems
Nominal size [mm]	65
Format	SNO - guide rail without base slot
Material (profiled rail systems)	Carbon steel
Accuracy class	SP - Super precise
Guide rail mounting	For bolting from above
Guide rail cover	Plastic caps
Max. length Lmax [mm]	3971.0
Note: Lmax	Available as one piece up to a length of 5921 mm
Number of holes nB (profiled rail systems)	53
Number of sections	2-piece
Mass m (kg/m) [kg/m]	17.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	75
Dimension A2 (profiled rail systems) [mm]	63
Dimension D [mm]	26
Dimension diameter S5 (profiled rail systems)	18
Dimension H2 without cover strip (profiled rail systems) [mm]	57.85
Dimension N6 (profiled rail systems) [mm]	36.5
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension T [mm]	75
Dimension T1 max (profiled rail systems) [mm]	55
Dimension T1 min [mm]	20
Dimension T1 s (profiled rail systems) [mm]	35.5
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
