Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Accuracy class | Guide rail cover | Max. length Lmax [mm] | Number of sections |
|---|---|---|---|---|---|
| R183526267 | 100 | P - Precise | With cover strip | 3885.0 | 7-piece |
| R183526266 | 100 | P - Precise | With cover strip | 3885.0 | 6-piece |
| R183526265 | 100 | P - Precise | With cover strip | 3885.0 | 5-piece |
| R183526264 | 100 | P - Precise | With cover strip | 3885.0 | 4-piece |
| R183526263 | 100 | P - Precise | With cover strip | 3885.0 | 3-piece |
| R183526262 | 100 | P - Precise | With cover strip | 3885.0 | 2-piece |
| R183526261 | 100 | P - Precise | With cover strip | 3885.0 | 1-piece |
| R183625338 | 100 | H - Highly accurate | With steel caps | 3986.0 | 8-piece |
| R183625337 | 100 | H - Highly accurate | With steel caps | 3986.0 | 7-piece |
| R183625336 | 100 | H - Highly accurate | With steel caps | 3986.0 | 6-piece |
| R183625335 | 100 | H - Highly accurate | With steel caps | 3986.0 | 5-piece |
| R183625334 | 100 | H - Highly accurate | With steel caps | 3986.0 | 4-piece |
| R183625333 | 100 | H - Highly accurate | With steel caps | 3986.0 | 3-piece |

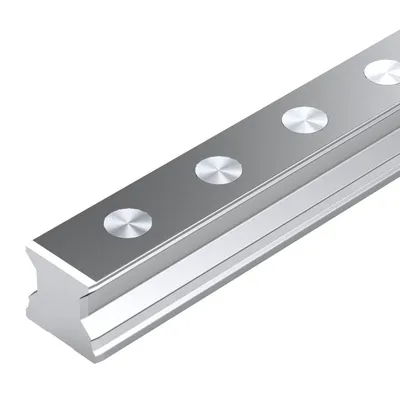

| R183625332 | 100 | H - Highly accurate | With steel caps | 3986.0 | 2-piece |
| R183625331 | 100 | H - Highly accurate | With steel caps | 3986.0 | 1-piece |
| R183526368 | 100 | H - Highly accurate | With cover strip | 3885.0 | 8-piece |
| R183526367 | 100 | H - Highly accurate | With cover strip | 3885.0 | 7-piece |
| R183526366 | 100 | H - Highly accurate | With cover strip | 3885.0 | 6-piece |
| R183526365 | 100 | H - Highly accurate | With cover strip | 3885.0 | 5-piece |
| R183526364 | 100 | H - Highly accurate | With cover strip | 3885.0 | 4-piece |
| R183526363 | 100 | H - Highly accurate | With cover strip | 3885.0 | 3-piece |

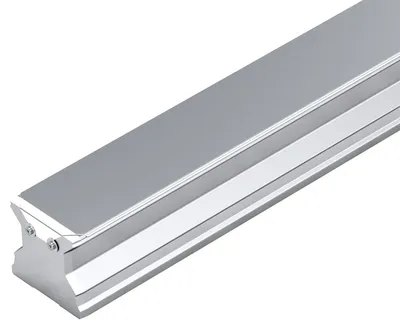

| R183526362 | 100 | H - Highly accurate | With cover strip | 3885.0 | 2-piece |
| R183526361 | 100 | H - Highly accurate | With cover strip | 3885.0 | 1-piece |
| R180760938 | 65 | UP - Ultra precise | Without cover strip | 3971.0 | 8-piece |
Common to all listed parts
| Version | Roller rail systems |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
