Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Accuracy class | Guide rail cover | Max. length Lmax [mm] | Number of sections |
|---|---|---|---|---|---|
| R183536364 | 125 | H - Highly accurate | With cover strip | 2760.0 | 4-piece |
| R183536363 | 125 | H - Highly accurate | With cover strip | 2760.0 | 3-piece |
| R183536362 | 125 | H - Highly accurate | With cover strip | 2760.0 | 2-piece |

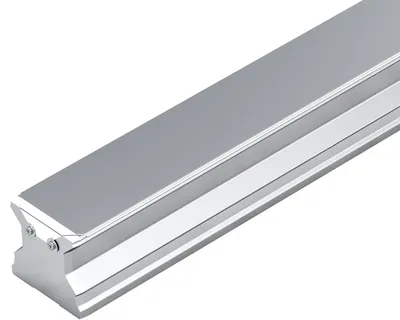

| R183536361 | 125 | H - Highly accurate | With cover strip | 2760.0 | 1-piece |
| R183625133 | 100 | SP - Super precise | With steel caps | 3986.0 | 3-piece |
| R183625132 | 100 | SP - Super precise | With steel caps | 3986.0 | 2-piece |
| R183625131 | 100 | SP - Super precise | With steel caps | 3986.0 | 1-piece |
| R183526168 | 100 | SP - Super precise | With cover strip | 3885.0 | 8-piece |
| R183526167 | 100 | SP - Super precise | With cover strip | 3885.0 | 7-piece |
| R183526166 | 100 | SP - Super precise | With cover strip | 3885.0 | 6-piece |
| R183526165 | 100 | SP - Super precise | With cover strip | 3885.0 | 5-piece |
| R183526164 | 100 | SP - Super precise | With cover strip | 3885.0 | 4-piece |
| R183526163 | 100 | SP - Super precise | With cover strip | 3885.0 | 3-piece |
| R183526162 | 100 | SP - Super precise | With cover strip | 3885.0 | 2-piece |
| R183526161 | 100 | SP - Super precise | With cover strip | 3885.0 | 1-piece |
| R183625238 | 100 | P - Precise | With steel caps | 3986.0 | 8-piece |
| R183625237 | 100 | P - Precise | With steel caps | 3986.0 | 7-piece |
| R183625236 | 100 | P - Precise | With steel caps | 3986.0 | 6-piece |
| R183625235 | 100 | P - Precise | With steel caps | 3986.0 | 5-piece |
| R183625234 | 100 | P - Precise | With steel caps | 3986.0 | 4-piece |
| R183625233 | 100 | P - Precise | With steel caps | 3986.0 | 3-piece |
| R183625232 | 100 | P - Precise | With steel caps | 3986.0 | 2-piece |
| R183625231 | 100 | P - Precise | With steel caps | 3986.0 | 1-piece |
| R183526268 | 100 | P - Precise | With cover strip | 3885.0 | 8-piece |
Common to all listed parts
| Version | Roller rail systems |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Guide rail mounting | For bolting from above |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = nB • T ‒ 7 mm |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
