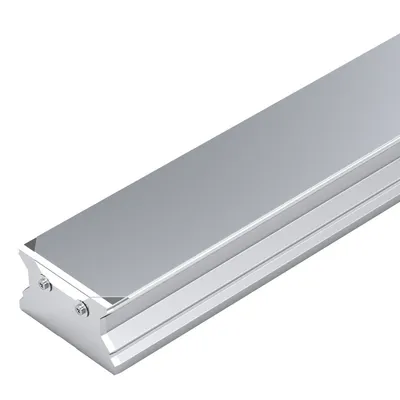

Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Guide rail cover | Max. length Lmax [mm] | Number of sections | Dimension T1 min [mm] |
|---|---|---|---|---|---|
| R184557342 | 55 | Without cover strip | 3956.0 | 2-piece | 20 |
| R184557341 | 55 | Without cover strip | 5936.0 | 1-piece | 20 |
| R187356372 | 55/85 | With cover strip | 3956.0 | Multi-part | 28 |
| R187356371 | 55/85 | With cover strip | 3956.0 | One-piece | 28 |
| R184740348 | 45 | Without cover strip | 3986.0 | 8-piece | 18 |
| R184740347 | 45 | Without cover strip | 3986.0 | 7-piece | 18 |
| R184740346 | 45 | Without cover strip | 3986.0 | 6-piece | 18 |
| R184740345 | 45 | Without cover strip | 3986.0 | 5-piece | 18 |
| R184740344 | 45 | Without cover strip | 3986.0 | 4-piece | 18 |
| R184740343 | 45 | Without cover strip | 3986.0 | 3-piece | 18 |
| R184740342 | 45 | Without cover strip | 3986.0 | 2-piece | 18 |
| R184740341 | 45 | Without cover strip | 3986.0 | 1-piece | 18 |
| R184640348 | 45 | With steel caps | 3986.0 | 8-piece | 16 |
| R184640347 | 45 | With steel caps | 3986.0 | 7-piece | 16 |
| R184640346 | 45 | With steel caps | 3986.0 | 6-piece | 16 |
| R184640345 | 45 | With steel caps | 3986.0 | 5-piece | 16 |
| R184640344 | 45 | With steel caps | 3986.0 | 4-piece | 16 |
| R184640343 | 45 | With steel caps | 3986.0 | 3-piece | 16 |
| R184640342 | 45 | With steel caps | 3986.0 | 2-piece | 16 |
| R184640341 | 45 | With steel caps | 5981.0 | 1-piece | 16 |
| R184543378 | 45 | With cover strip and strip clamps | 3986.0 | 8-piece | 18 |
| R184543377 | 45 | With cover strip and strip clamps | 3986.0 | 7-piece | 18 |
| R184543376 | 45 | With cover strip and strip clamps | 3986.0 | 6-piece | 18 |
| R184543375 | 45 | With cover strip and strip clamps | 3986.0 | 5-piece | 18 |
Common to all listed parts
| Version | Roller rail systems |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
