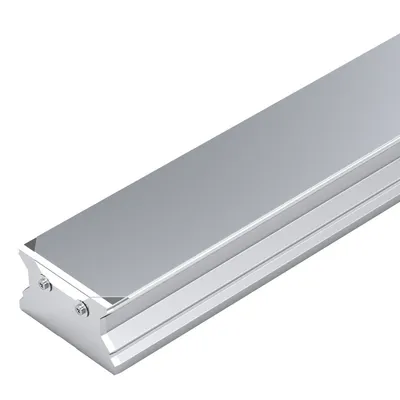

Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Guide rail cover | Max. length Lmax [mm] | Number of sections | Dimension T1 min [mm] |
|---|---|---|---|---|---|
| R187366372 | 65/100 | With cover strip | 3971.0 | Multi-part | 35.5 |
| R187366371 | 65/100 | With cover strip | 3971.0 | One-piece | 35.5 |
| R184750348 | 55 | Without cover strip | 3956.0 | 8-piece | 20 |
| R184750347 | 55 | Without cover strip | 3956.0 | 7-piece | 20 |
| R184750346 | 55 | Without cover strip | 3956.0 | 6-piece | 20 |
| R184750345 | 55 | Without cover strip | 3956.0 | 5-piece | 20 |
| R184750344 | 55 | Without cover strip | 3956.0 | 4-piece | 20 |
| R184750343 | 55 | Without cover strip | 3956.0 | 3-piece | 20 |
| R184750342 | 55 | Without cover strip | 3956.0 | 2-piece | 20 |
| R184750341 | 55 | Without cover strip | 3956.0 | 1-piece | 20 |
| R184650348 | 55 | With steel caps | 3956.0 | 8-piece | 18 |
| R184650347 | 55 | With steel caps | 3956.0 | 7-piece | 18 |
| R184650346 | 55 | With steel caps | 3956.0 | 6-piece | 18 |
| R184650345 | 55 | With steel caps | 3956.0 | 5-piece | 18 |
| R184650344 | 55 | With steel caps | 3956.0 | 4-piece | 18 |
| R184650343 | 55 | With steel caps | 3956.0 | 3-piece | 18 |
| R184650342 | 55 | With steel caps | 3956.0 | 2-piece | 18 |
| R184650341 | 55 | With steel caps | 5936.0 | 1-piece | 18 |
| R184553378 | 55 | With cover strip and strip clamps | 3956.0 | 8-piece | 20 |
| R184553377 | 55 | With cover strip and strip clamps | 3956.0 | 7-piece | 20 |
| R184553376 | 55 | With cover strip and strip clamps | 3956.0 | 6-piece | 20 |
| R184553375 | 55 | With cover strip and strip clamps | 3956.0 | 5-piece | 20 |
| R184553374 | 55 | With cover strip and strip clamps | 3956.0 | 4-piece | 20 |
| R184553373 | 55 | With cover strip and strip clamps | 3956.0 | 3-piece | 20 |
Common to all listed parts
| Version | Roller rail systems |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
