Bosch Rexroth R184557342

ROLLER GUIDE RAIL RESIST CR RSA-055-SNS-H-MA-0T

MPN: R184557342
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

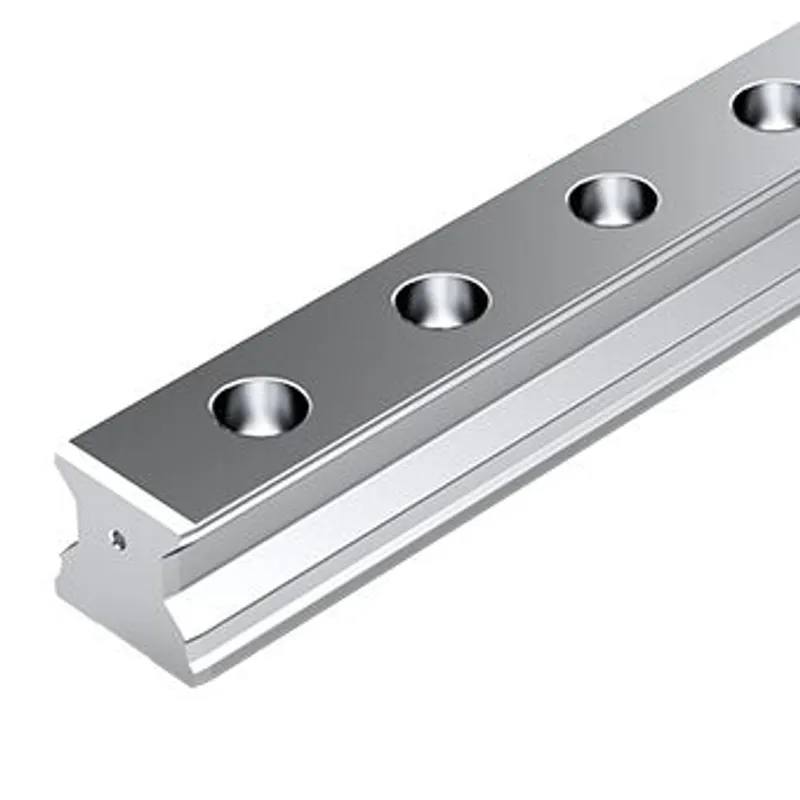

What is the Bosch Rexroth R184557342?

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:

Size 55

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS, matte-silver, hard chrome plated

Fastener MA: Bolting from above

Cover OT: Without cover, with end-face thread

Accuracy class high

Number of partial sections: 2

Rail in standard version

For mounting from above

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated

Corrosion-resistant Roller Runner Blocks and Roller Guide Rails in Resist CR, hard chrome plated, available in accuracy class H. Accuracy classes P and SP available upon request

Specifications

Version	Roller rail systems
Nominal size [mm]	55
Format	SNS - Standard guide rail
Material (profiled rail systems)	Hard chrome plated
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	Without cover strip
Max. length Lmax [mm]	3956.0
Minimum length Lmin [mm]	160.0
Number of holes nB (profiled rail systems)	66
Number of sections	2-piece
Mass m (kg/m) [kg/m]	13.1
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0

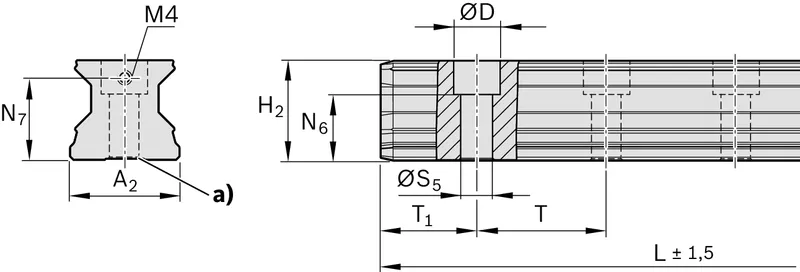

Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	60
Dimension A2 (profiled rail systems) [mm]	53
Dimension D [mm]	24
Dimension diameter S5 (profiled rail systems)	16
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.3 mm
Dimension H2 without cover strip (profiled rail systems) [mm]	47.55
Dimension N6 (profiled rail systems) [mm]	28.7
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension N7 (profiled rail systems) [mm]	30
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	42
Dimension T1 min [mm]	20
Dimension T1 s (profiled rail systems) [mm]	28
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
